Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

WARNING: This page is about a different variant/trim than selected.

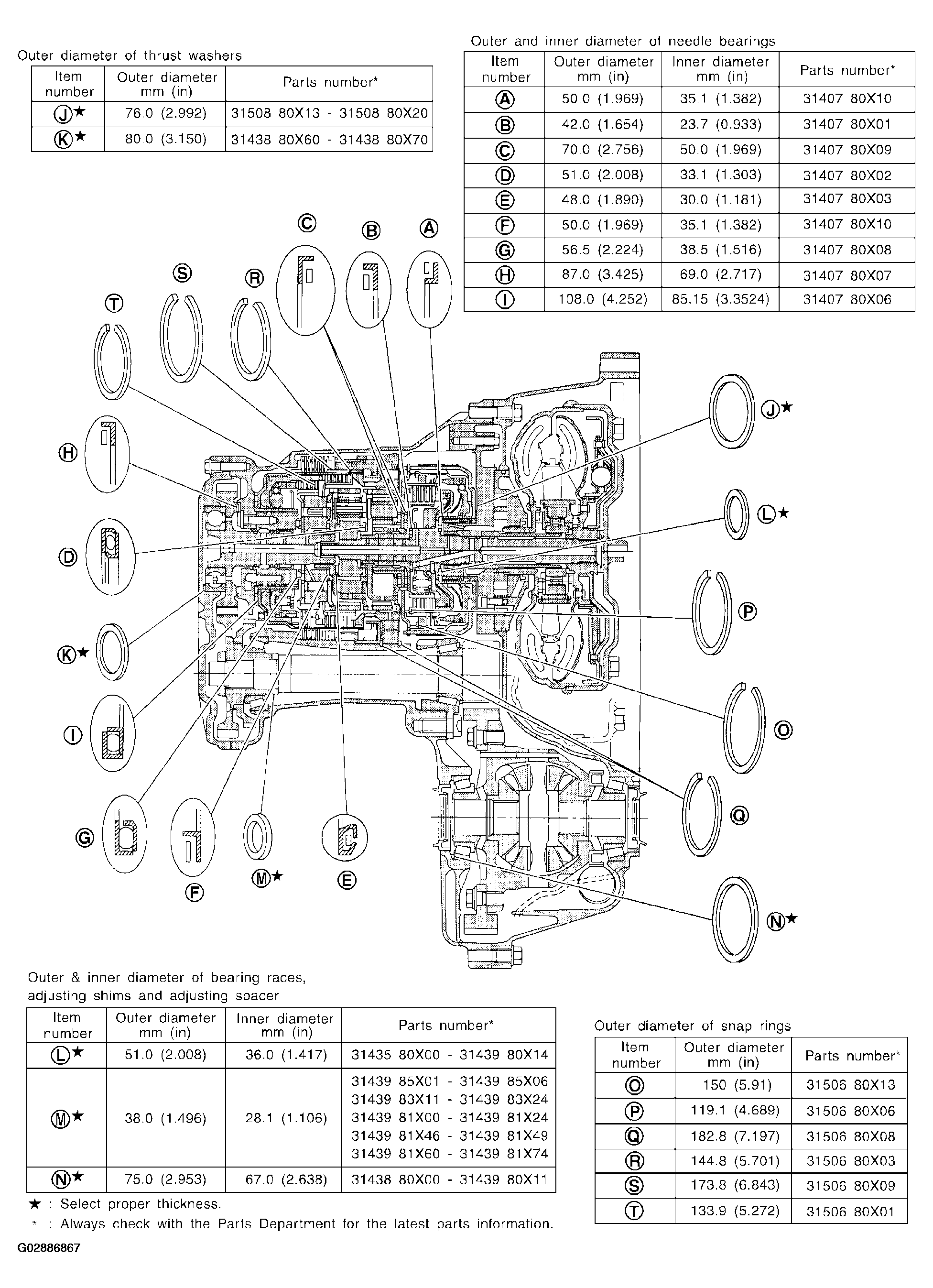

Fig 1: Locating Needle Bearings, Thrust Washers & Snap Rings Position & Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
