D4 Position

WARNING: This page is about a different variant/trim than selected.

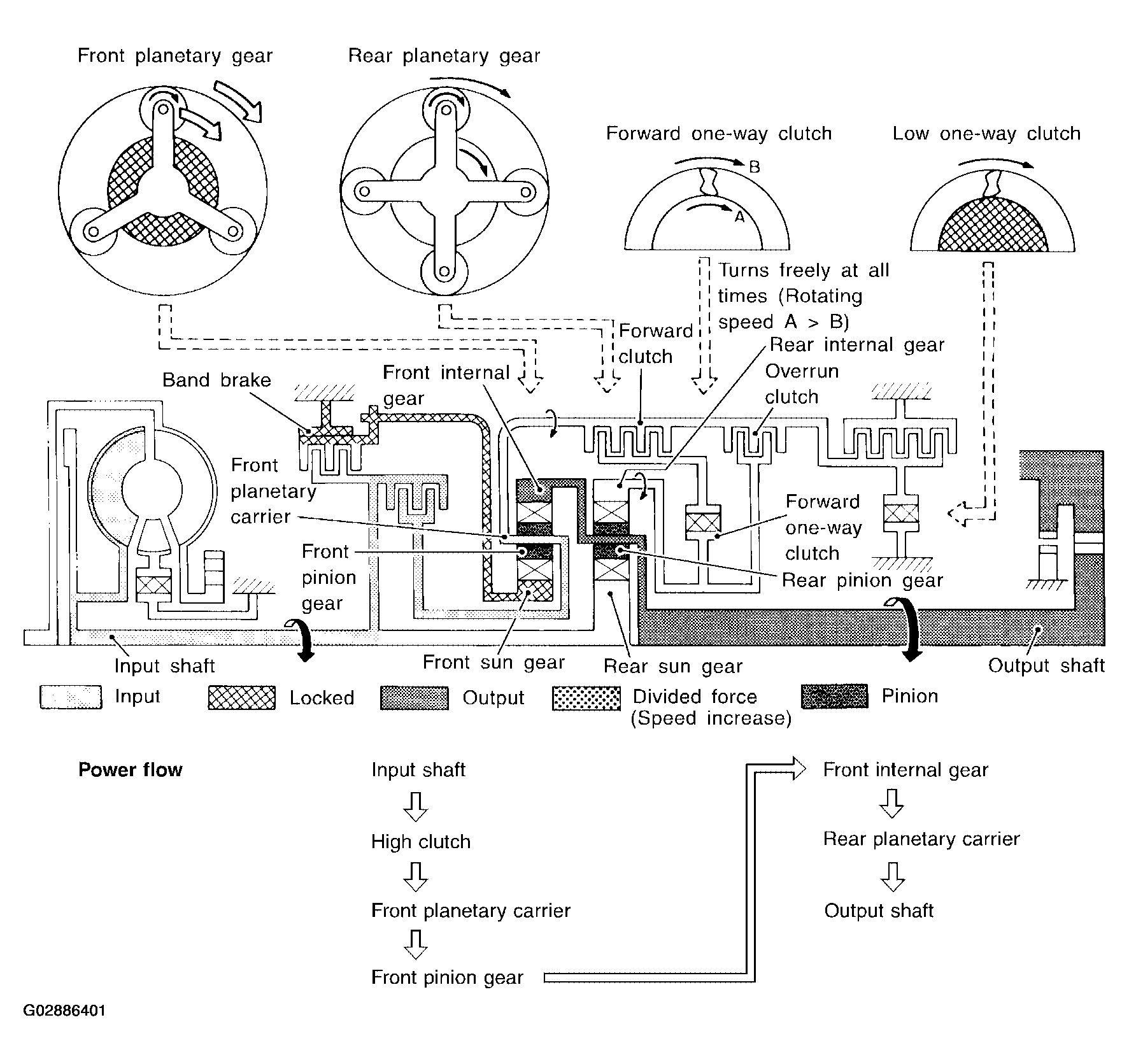

Fig 1: Power Transmission D4 Position
G02886401Courtesy of NISSAN MOTOR CO., U.S.A.

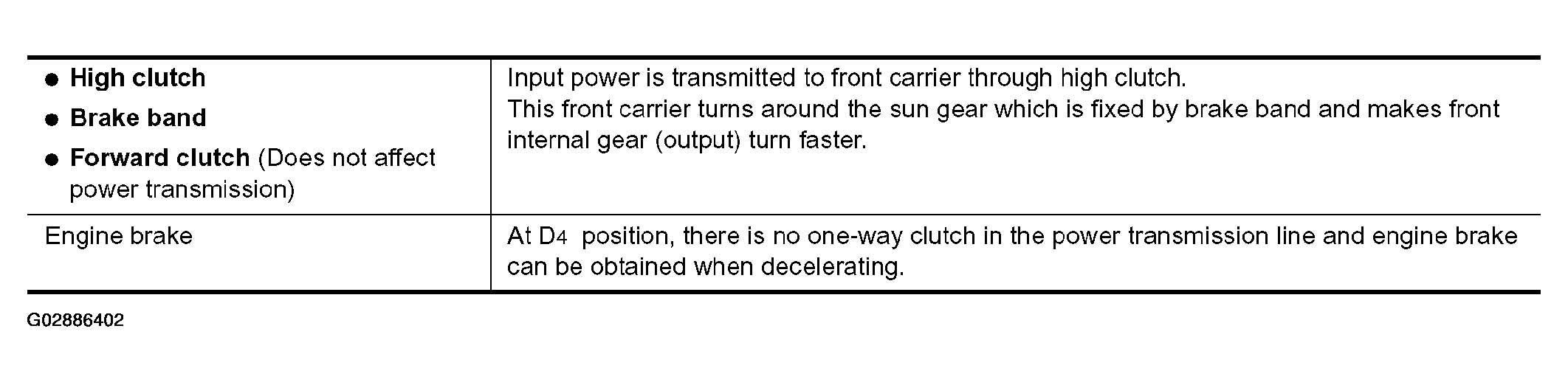

Fig 2: Power Transmission D4 Position Chart
G02886402Courtesy of NISSAN MOTOR CO., U.S.A.
