D3 and 33 Positions

WARNING: This page is about a different variant/trim than selected.

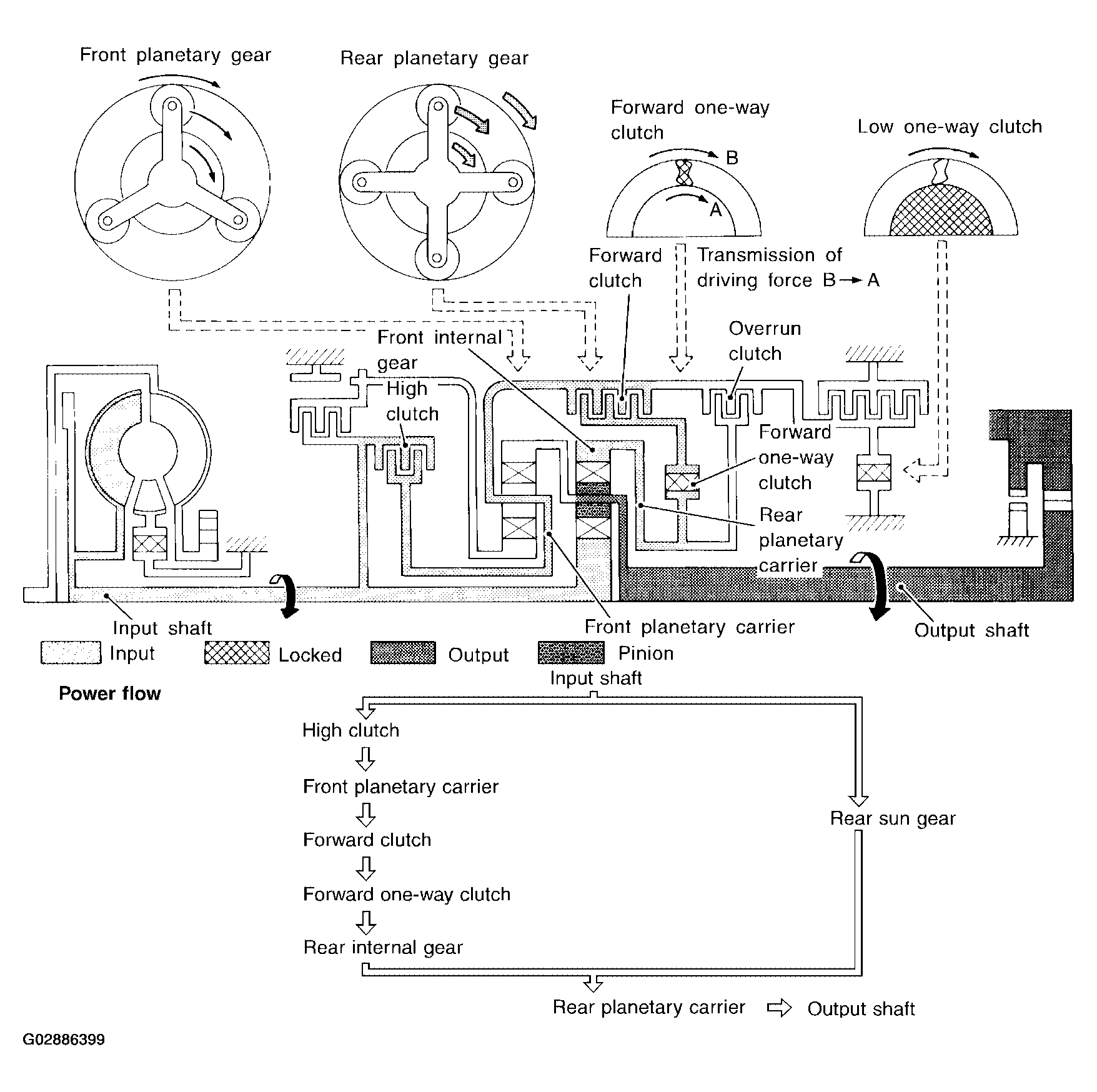

Fig 1: Power Transmission D3 & 33 Position
G02886399Courtesy of NISSAN MOTOR CO., U.S.A.

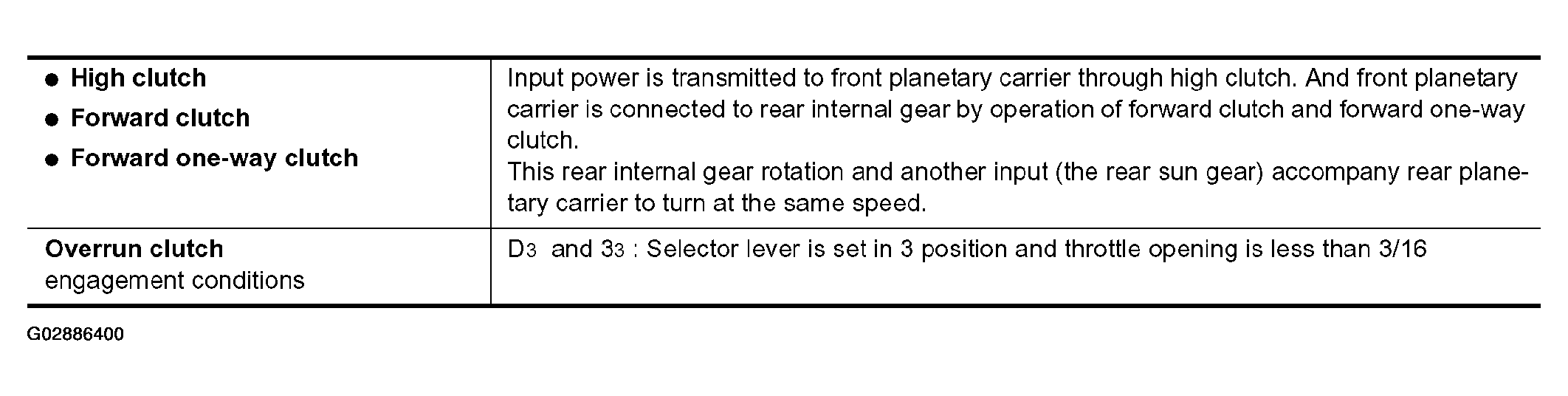

Fig 2: Power Transmission D3 & 33 Position Chart
G02886400Courtesy of NISSAN MOTOR CO., U.S.A.
