D2, 32, 22 and 12 Positions

WARNING: This page is about a different variant/trim than selected.

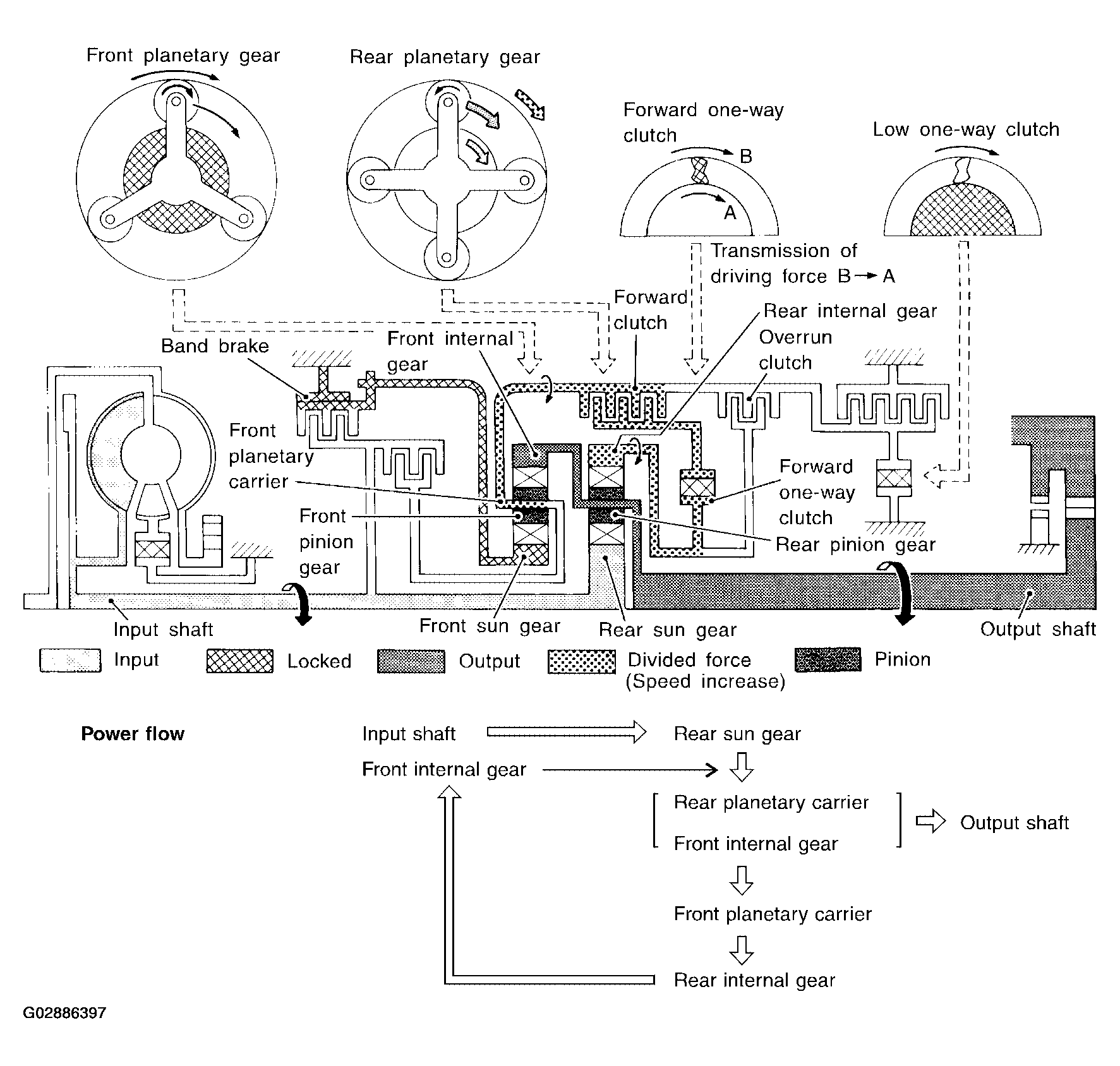

Fig 1: Power Transmission D2, 32, 22 & 12 Positions
G02886397Courtesy of NISSAN MOTOR CO., U.S.A.

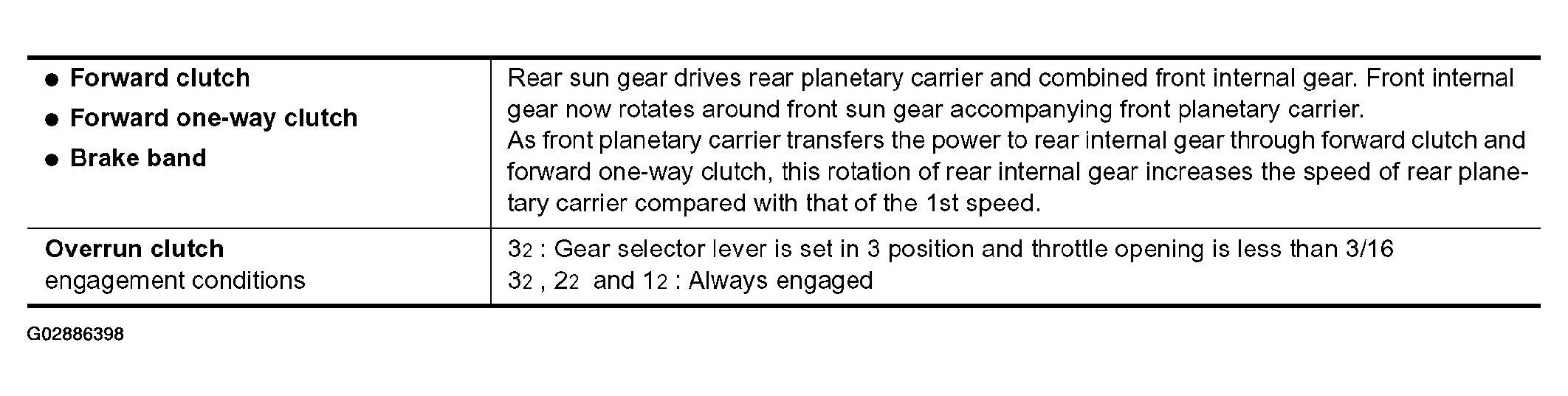

Fig 2: Power Transmission D2, 32, 22 & 12 Positions Chart
G02886398Courtesy of NISSAN MOTOR CO., U.S.A.
