D1 and 21 Positions

WARNING: This page is about a different variant/trim than selected.

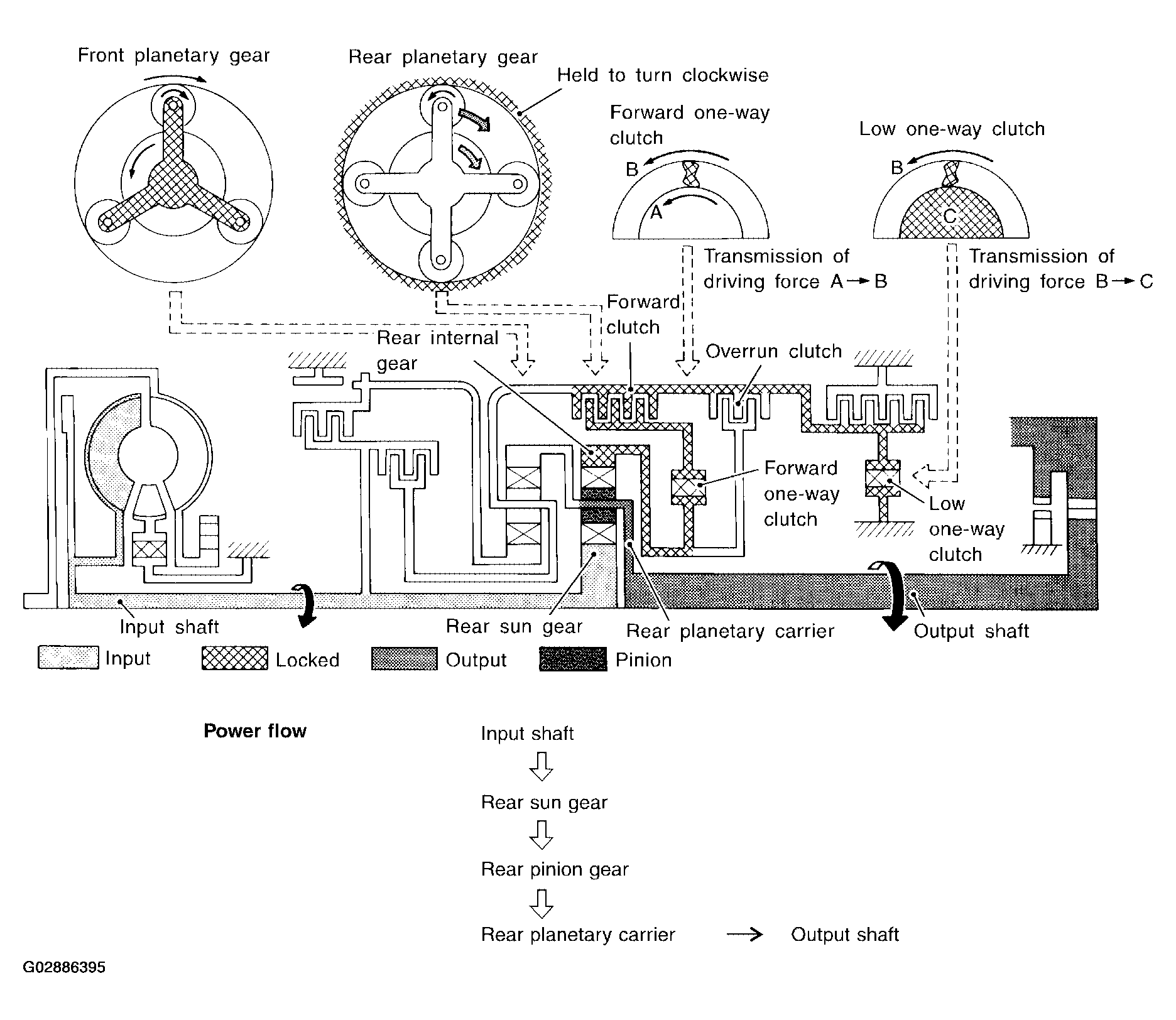

Fig 1: Power Transmission D1 & 21 Position
G02886395Courtesy of NISSAN MOTOR CO., U.S.A.

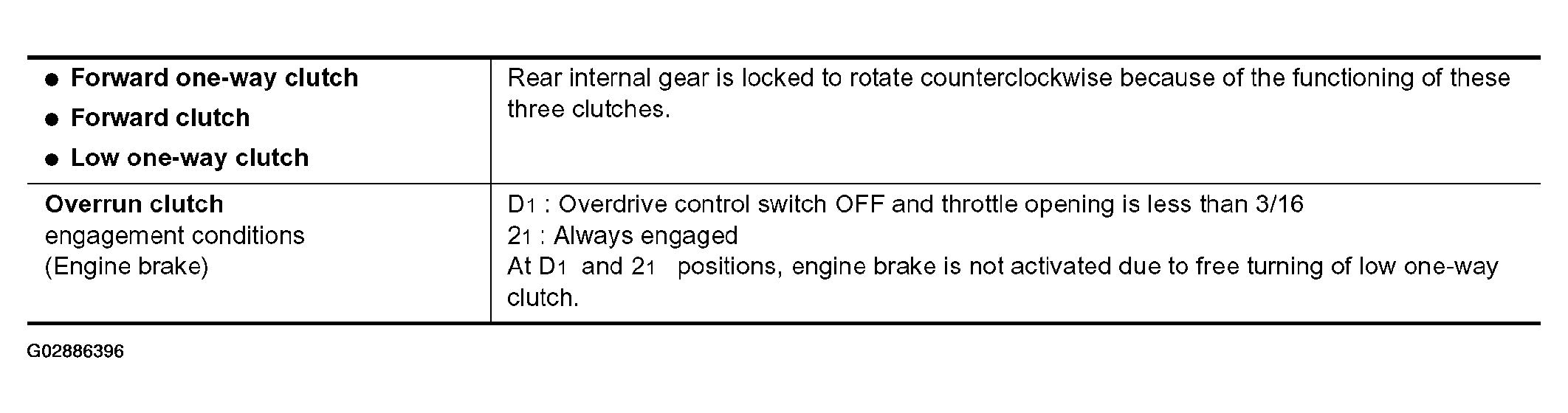

Fig 2: Power Transmission Position Chart
G02886396Courtesy of NISSAN MOTOR CO., U.S.A.
