Relation between shift solenoid valves A and B and gear positions

WARNING: This page is about a different variant/trim than selected.

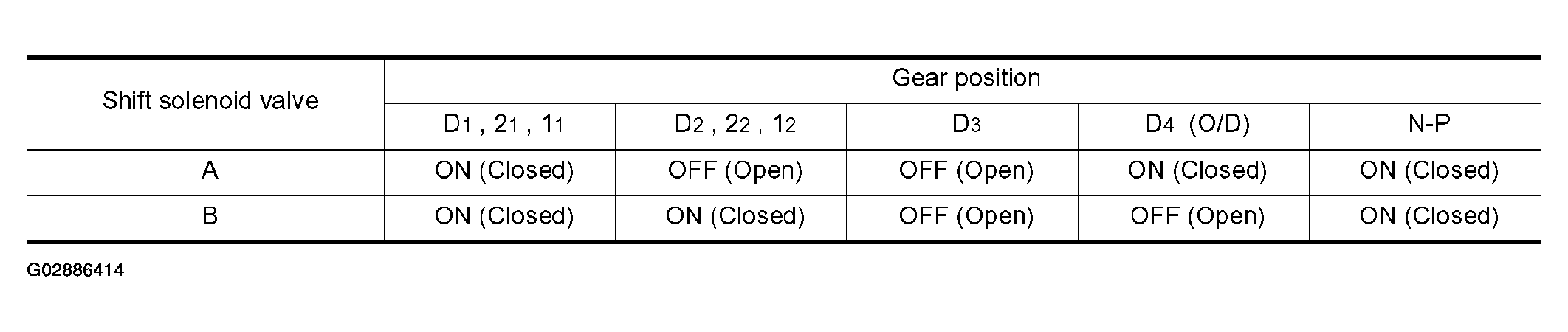

Fig 1: Relation Between Shift Solenoid Valves A & B & Gear Positions
G02886414Courtesy of NISSAN MOTOR CO., U.S.A.
