Turbine Revolution Sensor Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electrical connector.
  2. Remove bolt, and turbine revolution sensor from A/T.
  3. Reinstall any part removed.
    • Always use new sealing parts.

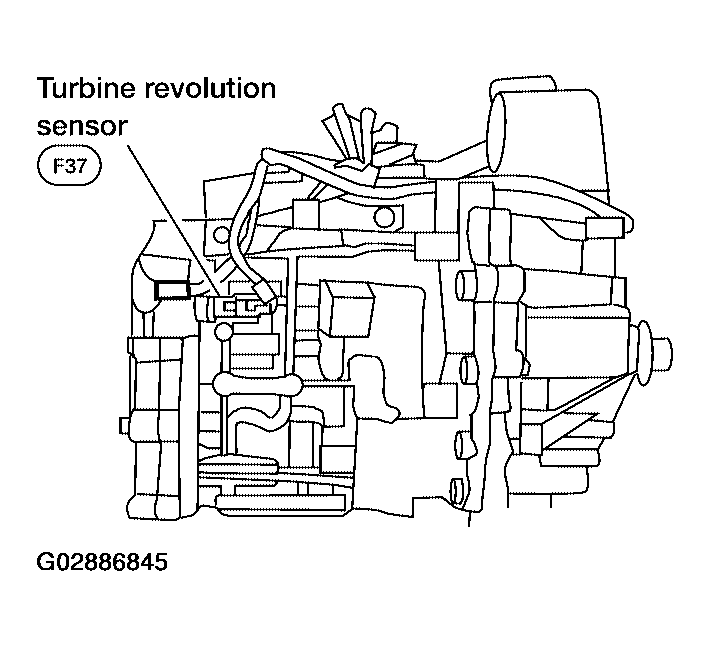

      Fig 1: Removing Turbine Revolution Sensor From A/T
      G02886845Courtesy of NISSAN MOTOR CO., U.S.A.
