Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Remove control cable from manual shaft.
  2. Set manual shaft in N position.
  3. Loosen park/neutral position (PNP) switch fixing bolts.

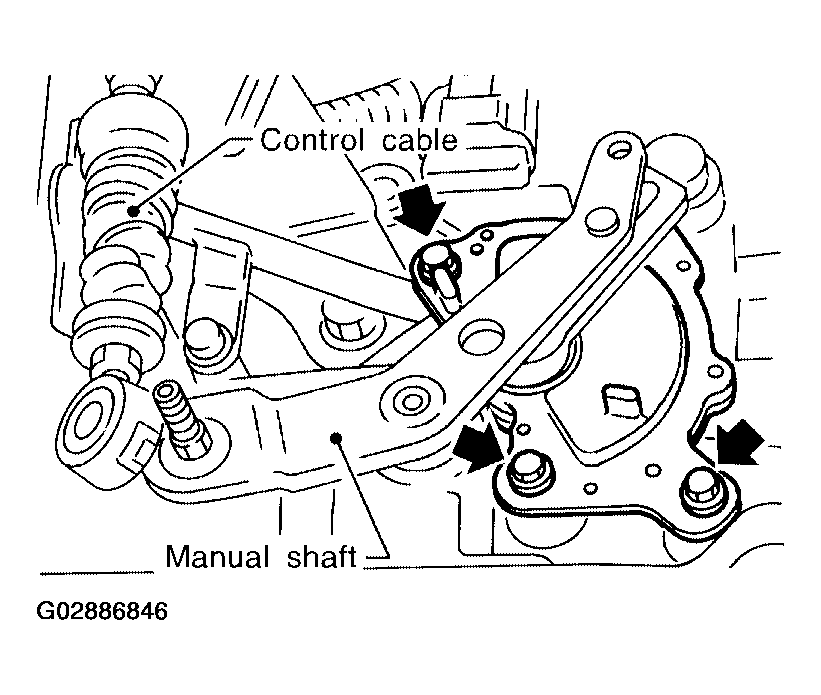

    Fig 1: Removing Control Cable From Manual Shaft
    G02886846Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Insert pin into adjustment holes in both park/neutral position (PNP) switch and manual shaft as near vertical as possible.
  5. Reinstall any part removed.
  6. Check continuity of park/neutral position (PNP) switch. Refer to "DIAGNOSTIC PROCEDURE ".

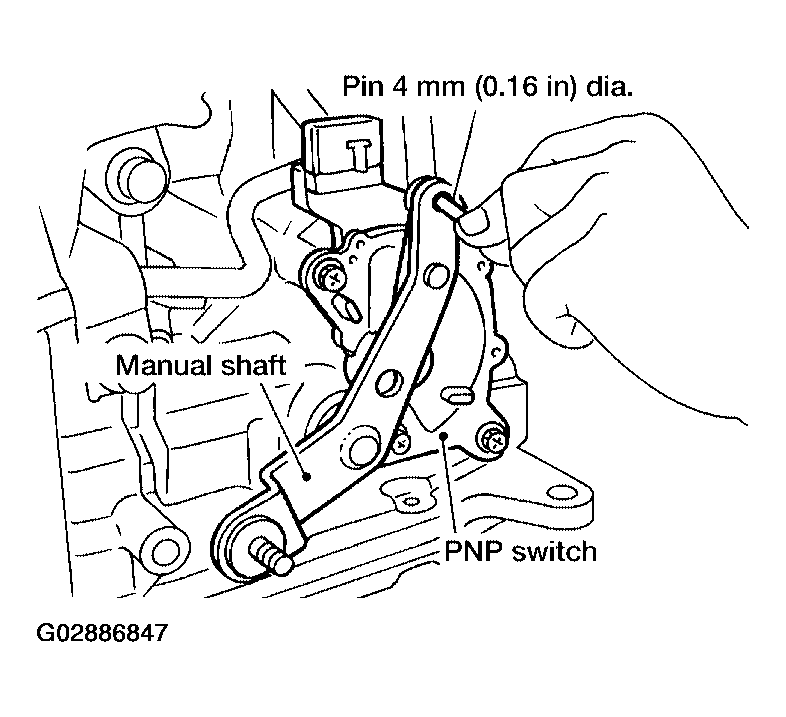

    Fig 2: Inserting Pin Into Adjustment Holes In PNP Switch & Manual Shaft
    G02886847Courtesy of NISSAN MOTOR CO., U.S.A.
