Differential Side Oil Seal Replacement

WARNING: This page is about a different variant/trim than selected.

Remove drive shaft assembly. Refer to "FRONT DRIVE SHAFT ".
Remove oil seal.

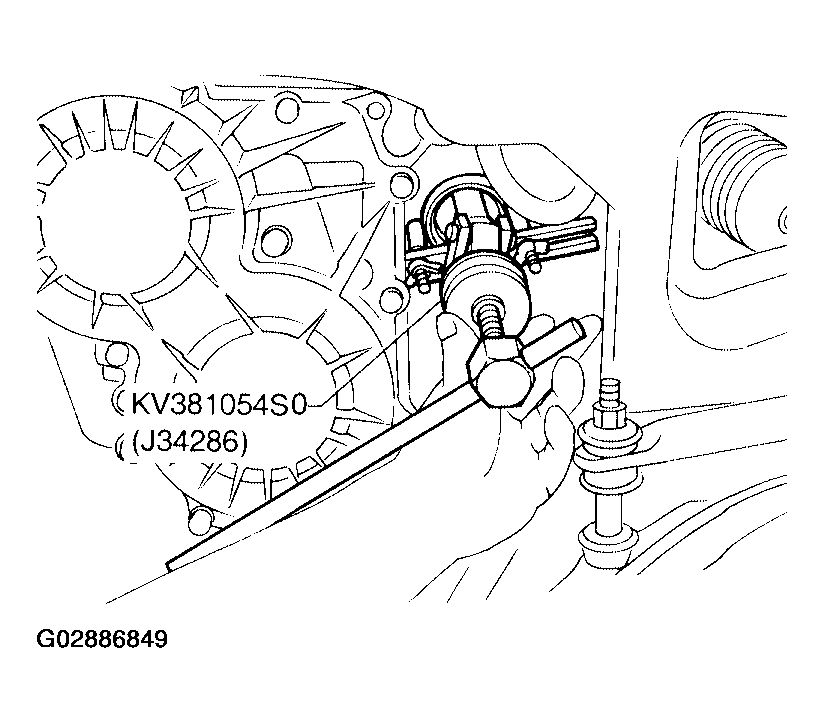

Fig 1: Removing Differential Side Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil seal.
- Apply ATF before installing.

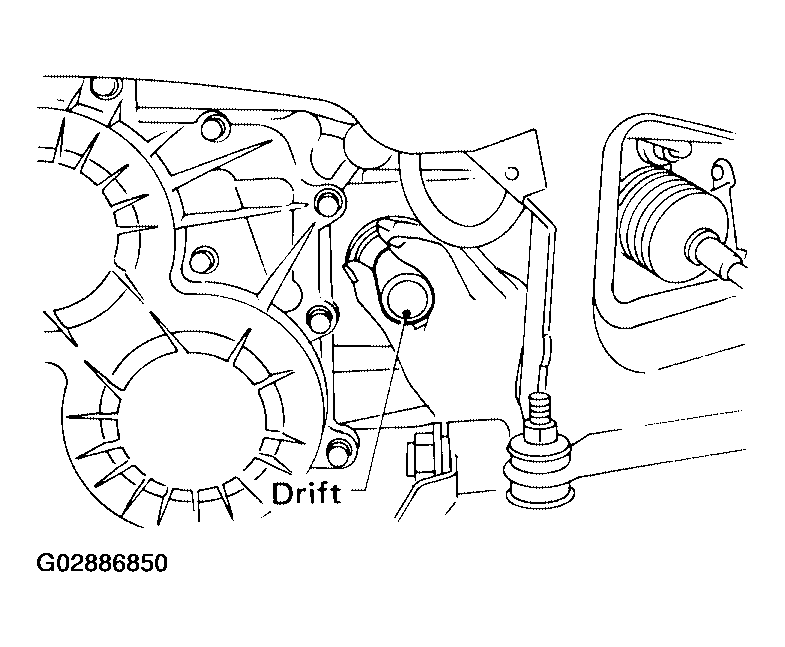

  Fig 2: Installing Differential Side Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install oil seals so dimension A is within specification
  A: -0.5 mm (-0.02 in) to 0.5 mm (0.02 in)
Reinstall any part removed.

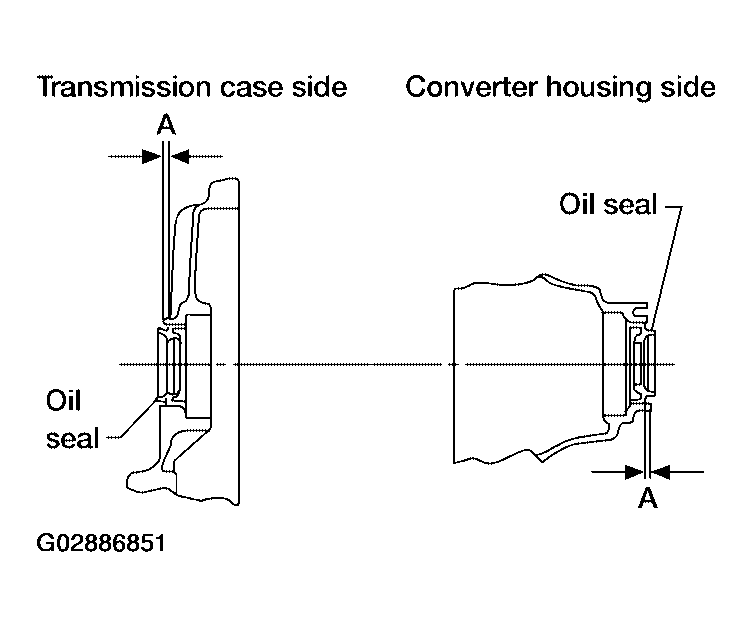

Fig 3: Oil Seal Installation Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
