Control Valve Assembly and Accumulators: Installation

WARNING: This page is about a different variant/trim than selected.

Set manual shaft in Neutral, then align manual plate with groove in manual valve.
After installing control valve assembly, make sure that selector lever can be moved to all positions.

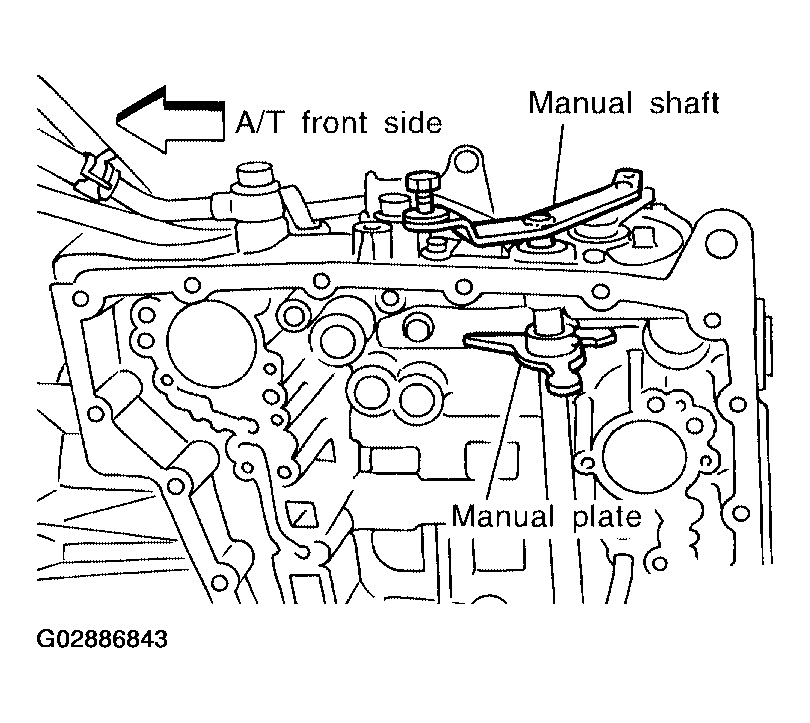

Fig 1: Placing Manual Shaft In Neutral & Aligning Manual Plate With Manual Valve Groove
Courtesy of NISSAN MOTOR CO., U.S.A.
