How To Erase DTC (With Consult-II)

WARNING: This page is about a different variant/trim than selected.

If a DTC is displayed for both ECM and TCM, it needs to be erased for both ECM and TCM.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 seconds and then turn it ON (engine stopped) again.
2. Turn CONSULT-II "ON" and touch "A/T".
3. Touch "SELF-DIAG RESULTS".
4. Touch "ERASE". (The DTC in the TCM will be erased.) Then touch "BACK" twice.
5. Touch "ENGINE".
6. Touch "SELF DIAGNOSIS".
7. Touch "ERASE". (The DTC in the ECM will be erased.)

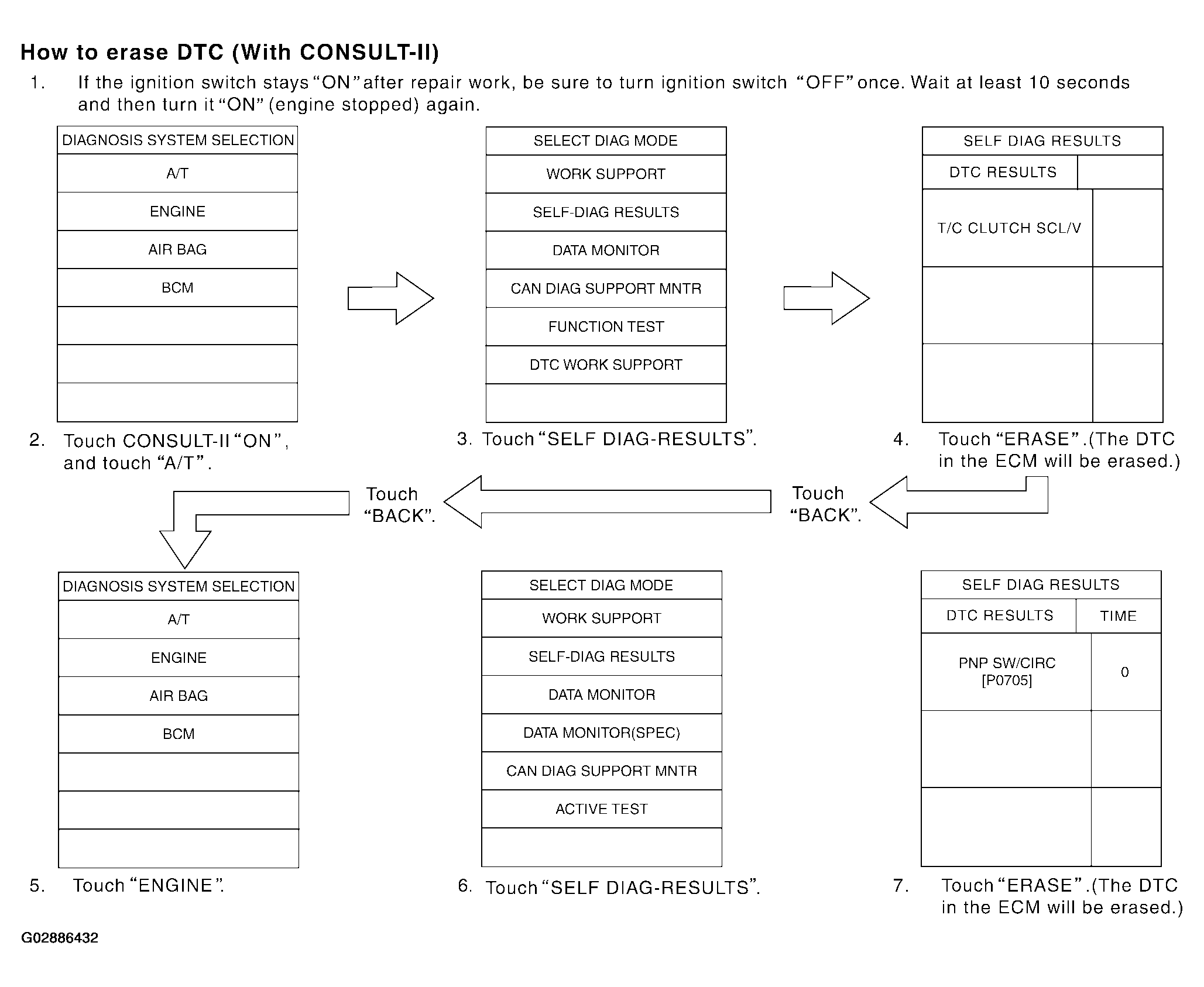

  Fig 1: Displaying Flow For Erasing DTC
  Courtesy of NISSAN MOTOR CO., U.S.A.
