Self-Diagnostic Result Test Mode
Self-Diagnostic Result Test Mode
WARNING:
This page is about a different variant/trim than selected.

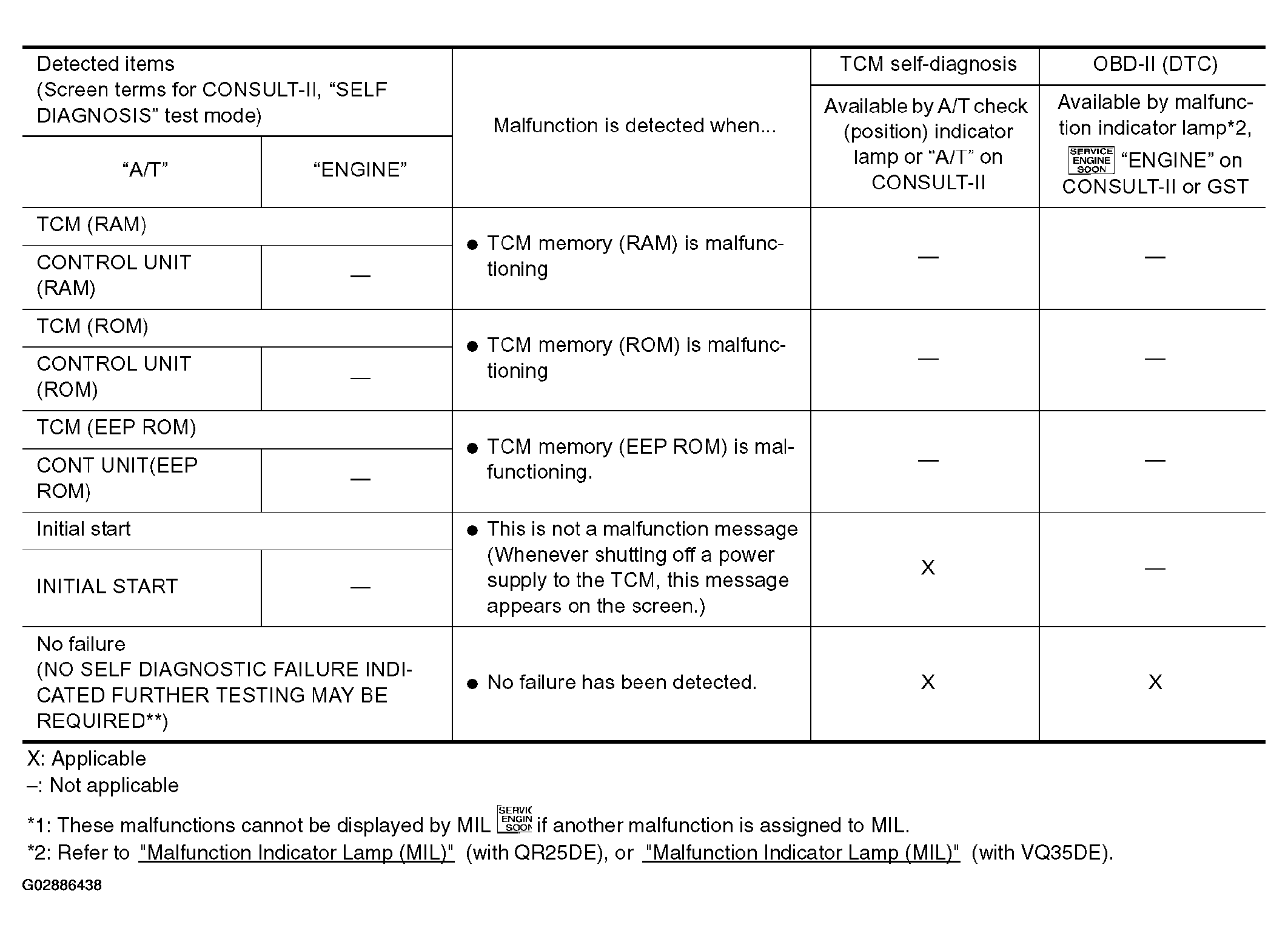

Fig 1: Self-Diagnostic Result Test Mode Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

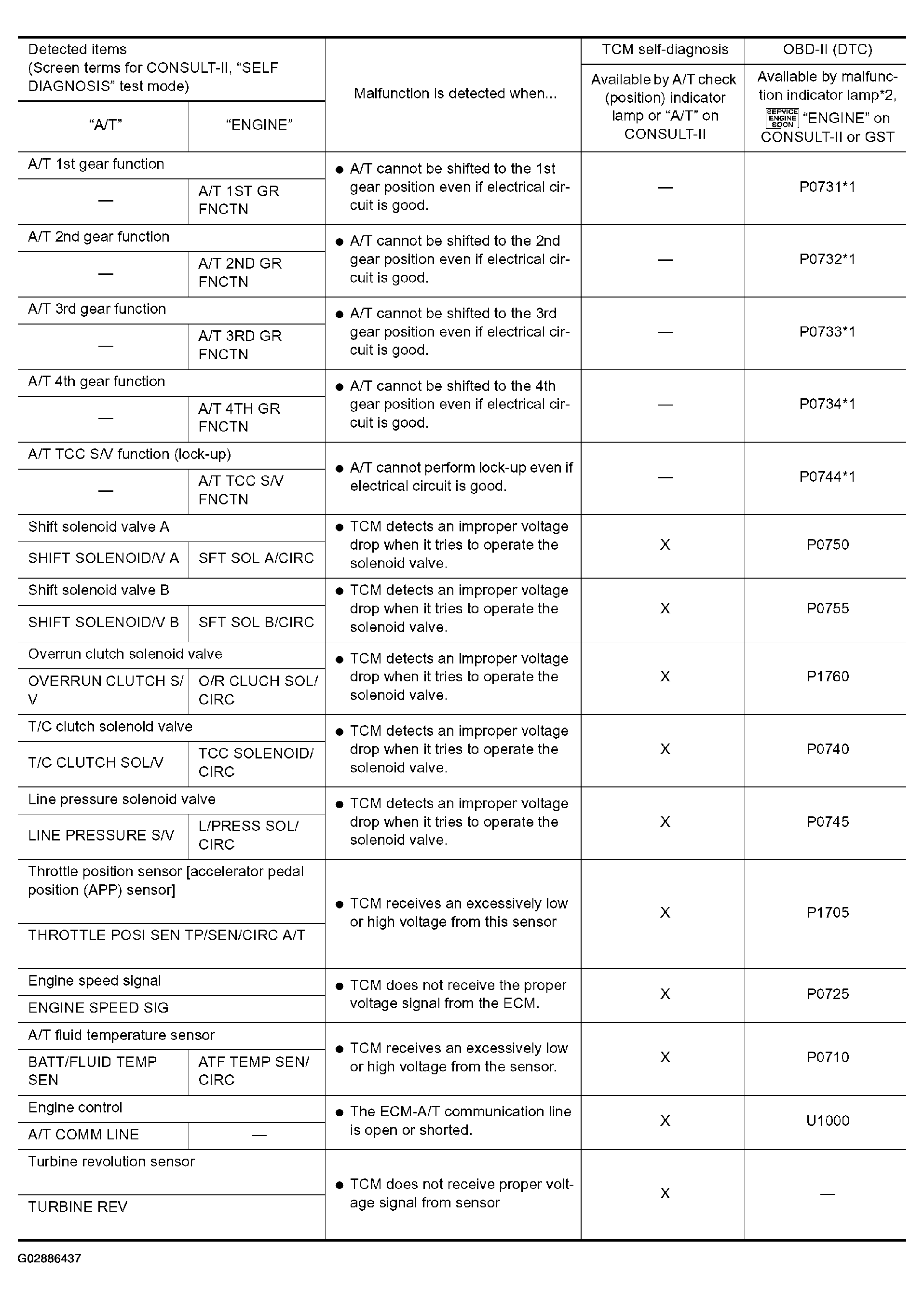

Fig 2: Self-Diagnostic Result Test Mode Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

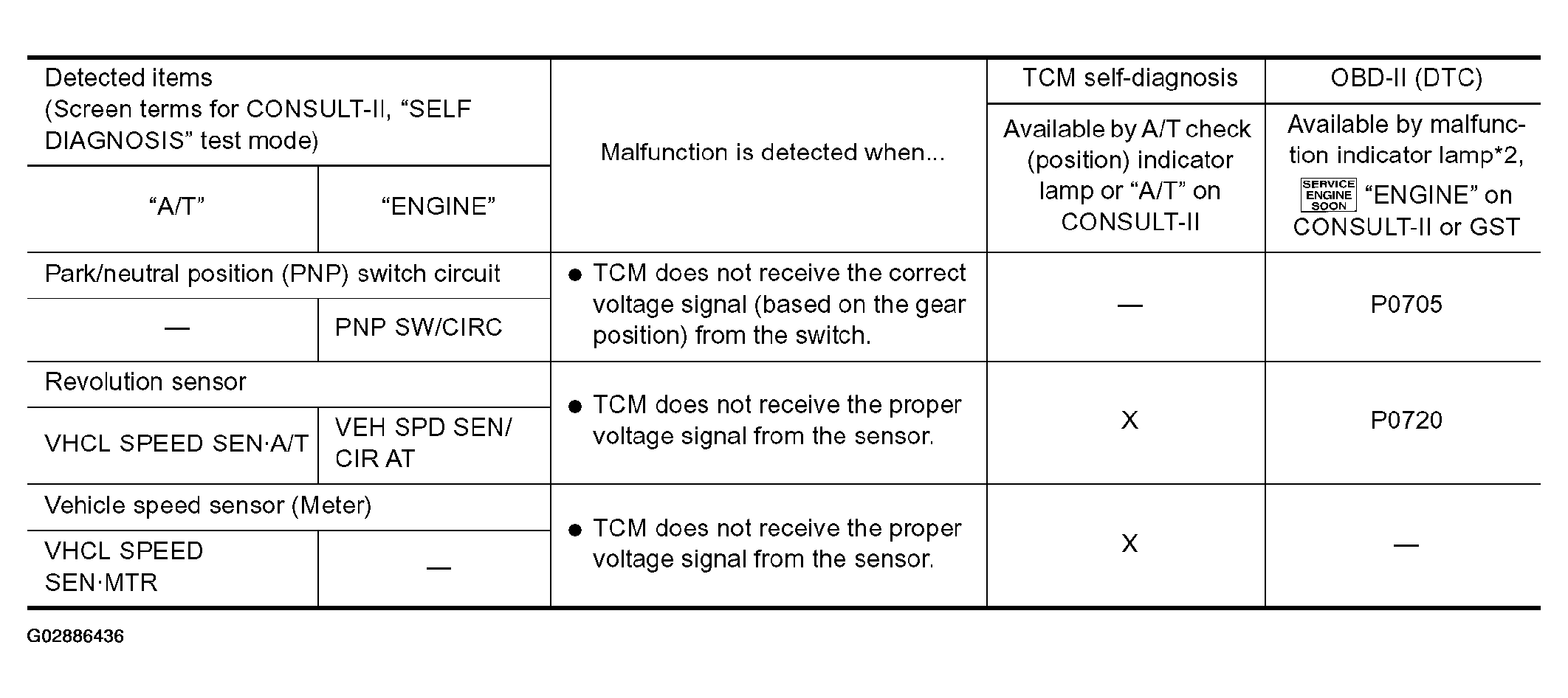

Fig 3: Self-Diagnostic Result Test Mode Chart (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
