Self-Diagnostic Procedure (With Consult-II)

WARNING: This page is about a different variant/trim than selected.

Touch on CONSULT-II, touch "START (NISSAN BASED VHCL)", and touch "ENGINE" for OBD-II detected items or touch "A/T" for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground circuit. Refer to "TROUBLE DIAGNOSIS FOR POWER SUPPLY ". If result is NG, refer to "POWER SUPPLY ROUTING CIRCUIT ".

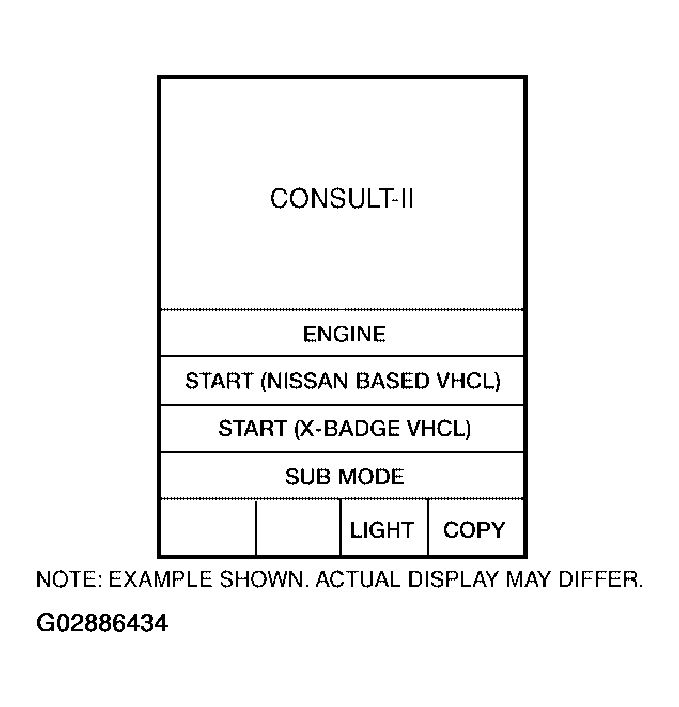

Fig 1: Scan Tool Display "Consult-II"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELF DIAG RESULTS". Display shows malfunction experienced since the last erasing operation.
CONSULT-II performs "Real Time Diagnosis". Also, any malfunction detected while in this mode will be displayed at real time.

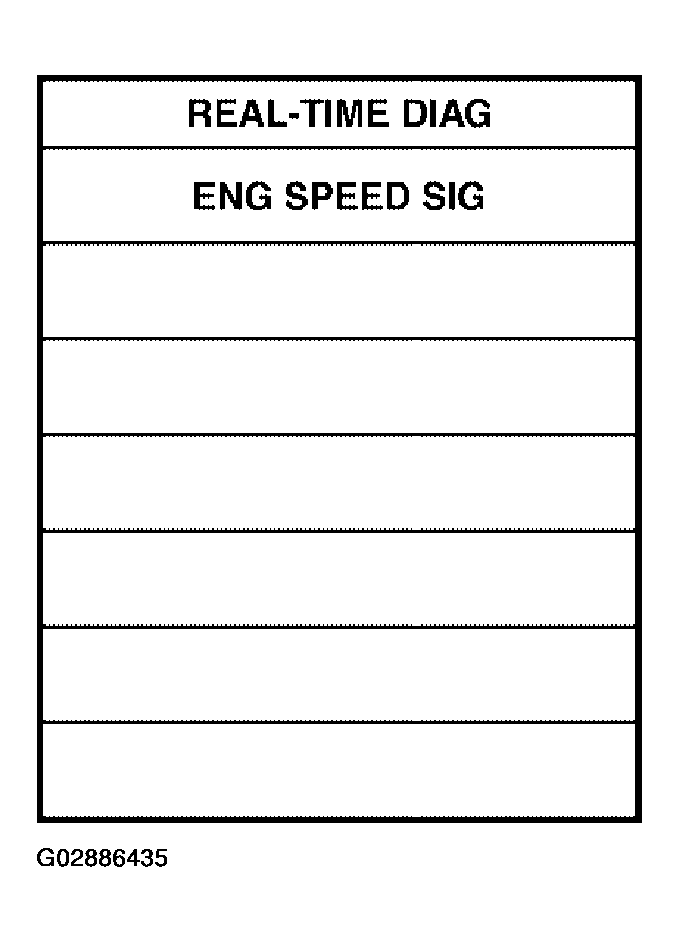

Fig 2: Scan Tool Display "Real Time Diag"
Courtesy of NISSAN MOTOR CO., U.S.A.
