Wiring Diagram - AT - VSSMTR

WARNING: This page is about a different variant/trim than selected.
NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

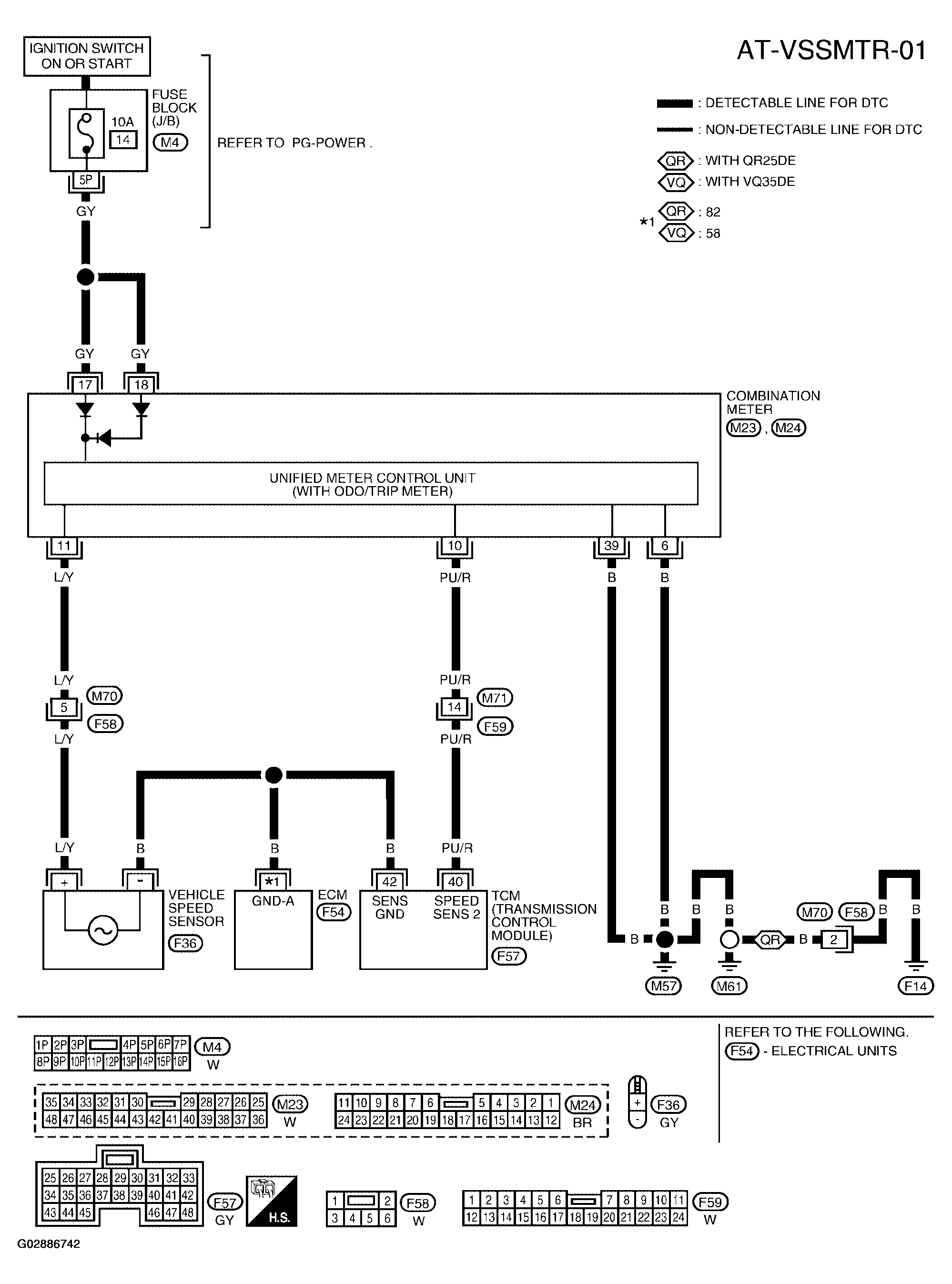

Fig 1: Wiring Diagram - AT - VSSMTR - AT-VSSMTR-01
G02886742Courtesy of NISSAN MOTOR CO., U.S.A.
