Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to "ON" and start engine.
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.
Is any malfunction of the "CAN COMM CIRCUIT" indicated?
1. Yes: Print out CONSULT-II screen, GO TO LAN section. Refer to "PRECAUTIONS WHEN USING CONSULT-II ".
2. No: INSPECTION END.

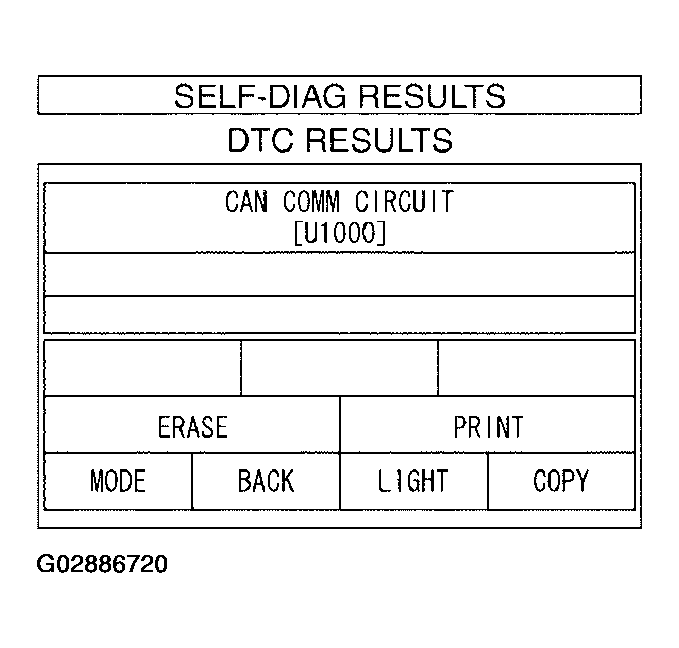

  Fig 1: Self-Diag Results (DTC Results)
  Courtesy of NISSAN MOTOR CO., U.S.A.
