Wiring Diagram - AT - TRSA/T

WARNING: This page is about a different variant/trim than selected.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

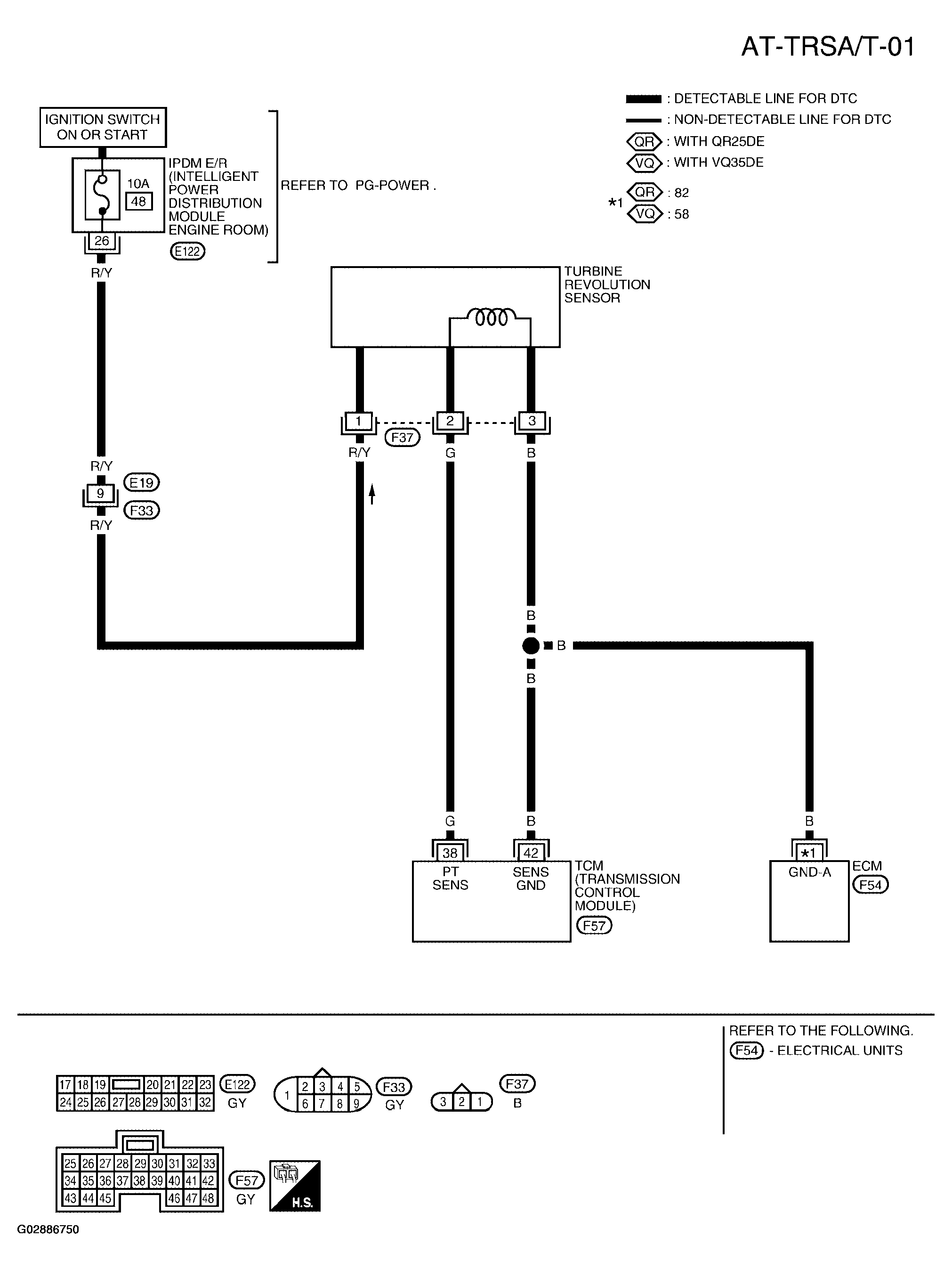

Fig 1: Wiring Diagram - AT - TRSA/T - AT-TRSA/T-01

Courtesy of NISSAN MOTOR CO., U.S.A.

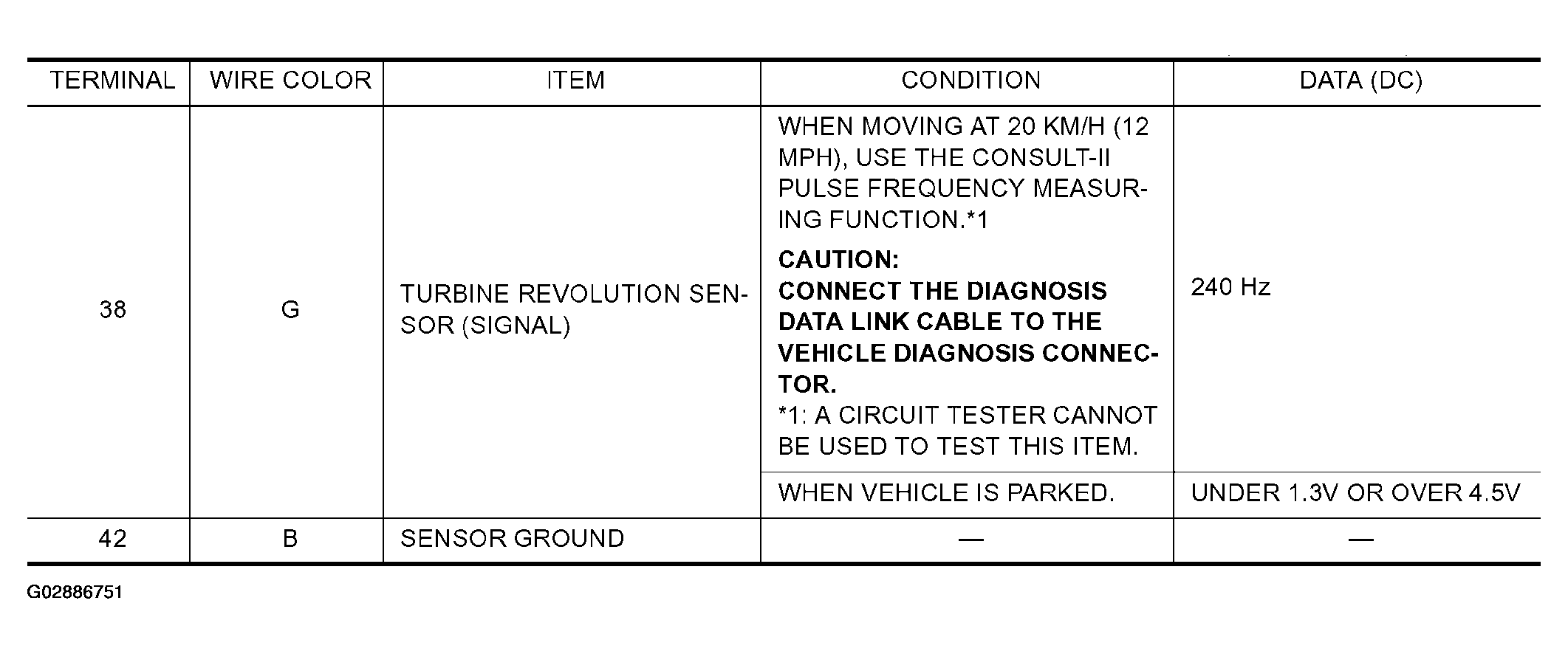

Fig 2: Terminal Description Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: TCM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 25 OR 48 (TCM GROUND)
