Turbine Revolution Sensor

WARNING: This page is about a different variant/trim than selected.

Check resistance between terminals 1, 2 and 3.

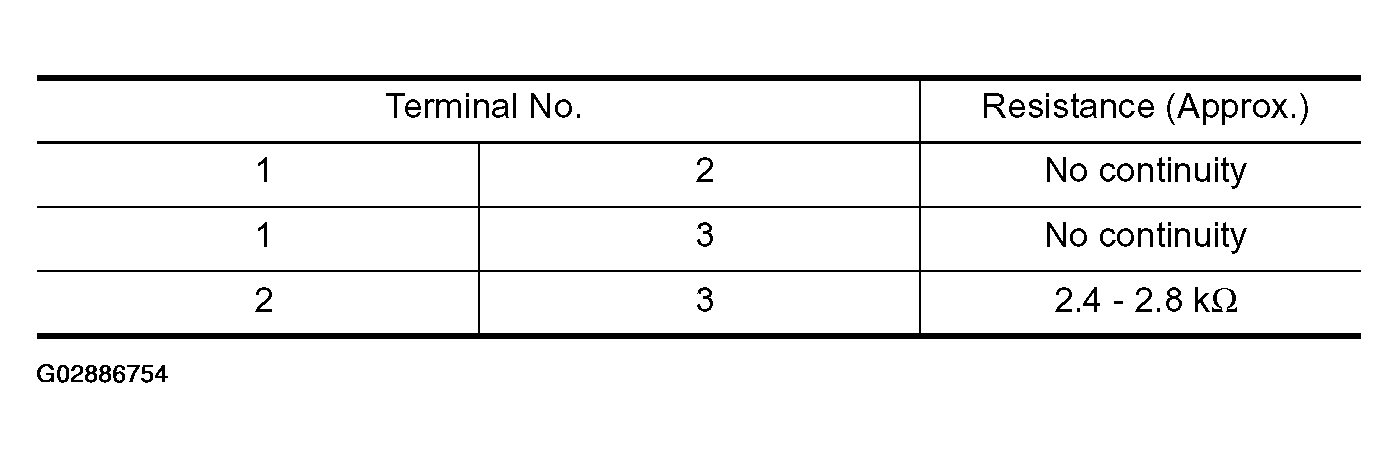

Fig 1: Terminal Resistance Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

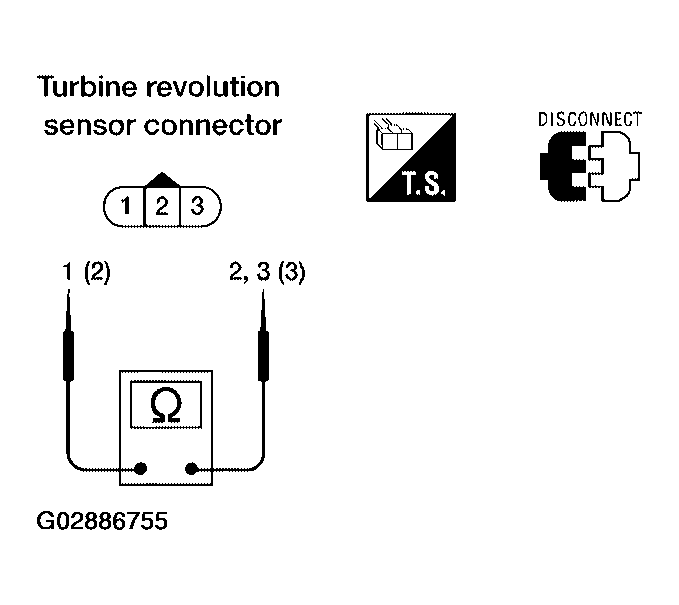

Fig 2: Terminals 1, 2 & 3 Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.
