With Consult-II

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
Touch "SELECTION FROM MENU".

Touch "THRTL POS SEN".

Touch "START"

GEAR POSITION REFERENCE

Accelerator pedal condition	THRTL POS SEN
Fully released	Less than 4.7V
Partially depressed	0.1 - 4.6V
Fully depressed	1.9 - 4.6V

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

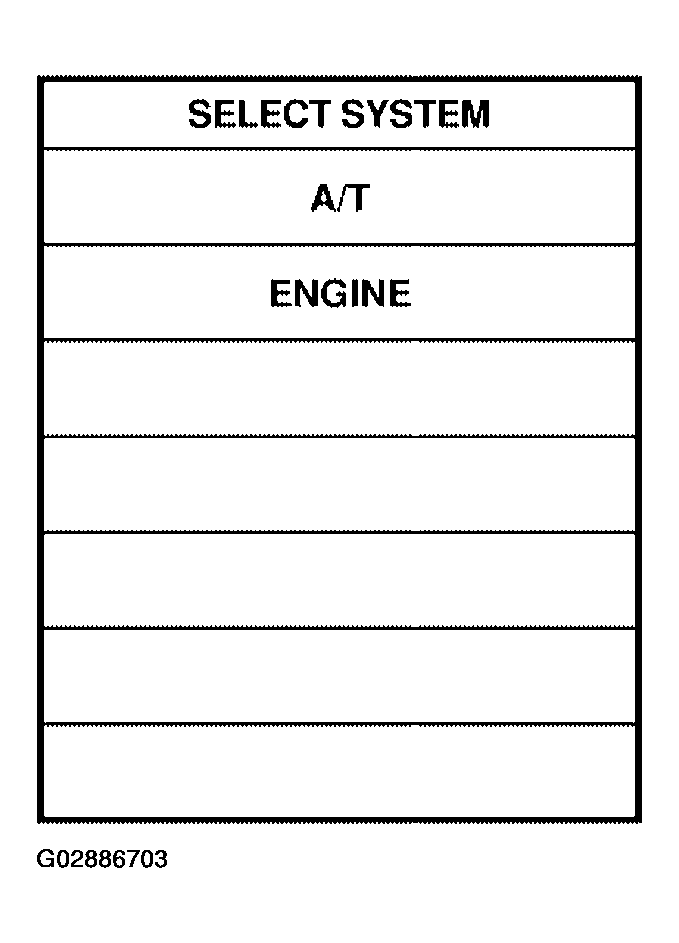

Fig 1: Scan Tool Display "Select System"

Courtesy of NISSAN MOTOR CO., U.S.A.

Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Touch "SELECTION FROM MENU"
Touch "VHCL SPEED SE" and "THRTL SEN 1".
Touch "START".
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS 1: Approximately 3V or less

Selector lever: D position

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

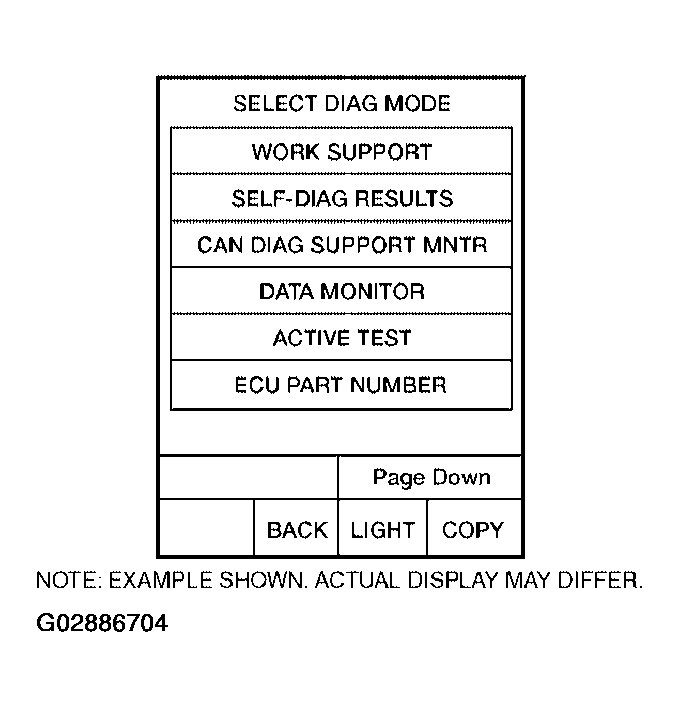

Fig 2: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position

Fig 3: Scan Tool Display "Select System"
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
