DTC P0750 Shift Solenoid Valve A: Description
WARNING: This page is about a different variant/trim than selected.

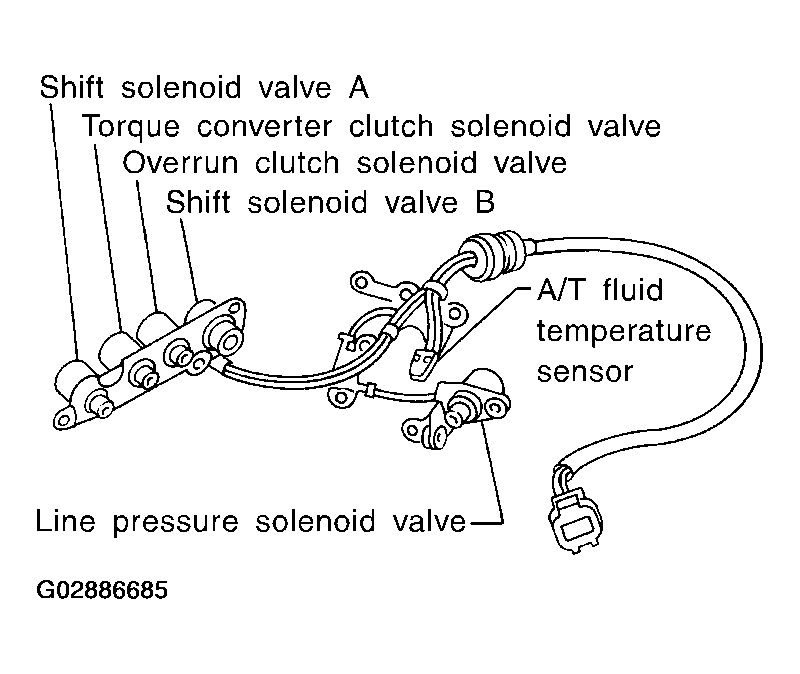

Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the park/neutral position (PNP) switch, vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.
GEAR POSITION REFERENCE
| Gear position | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Shift solenoid valve A | ON (Closed) | OFF (Open) | OFF (Open) | ON (Closed) |
| Shift solenoid valve B | ON (Closed) | ON (Closed) | OFF (Open) | OFF (Open) |
