With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

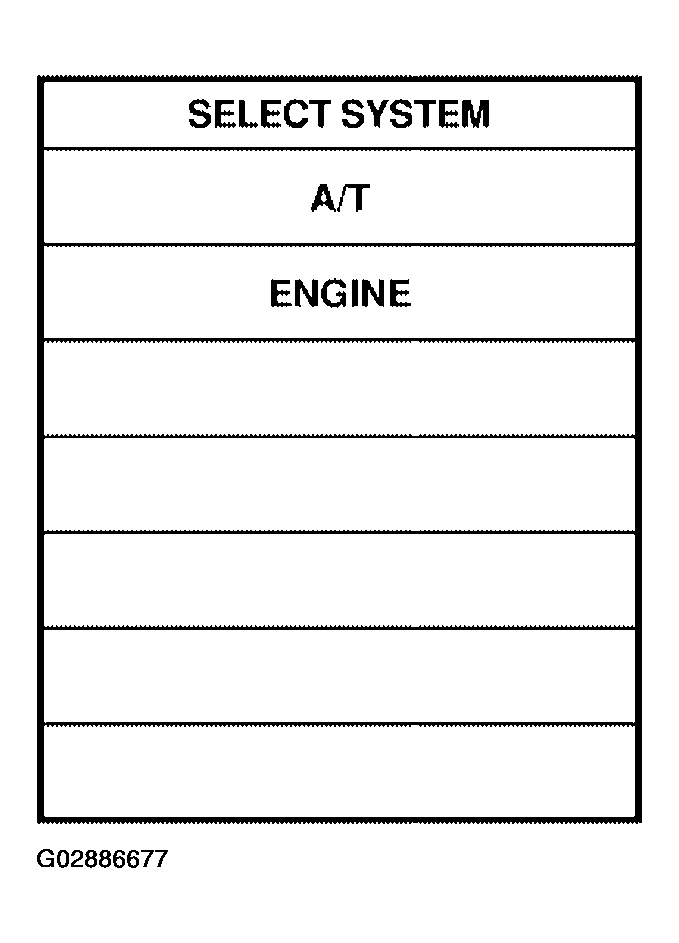

    Fig 1: Scan Tool Display "Select System"
    G02886677Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Depress accelerator pedal completely and wait at least 1 second.

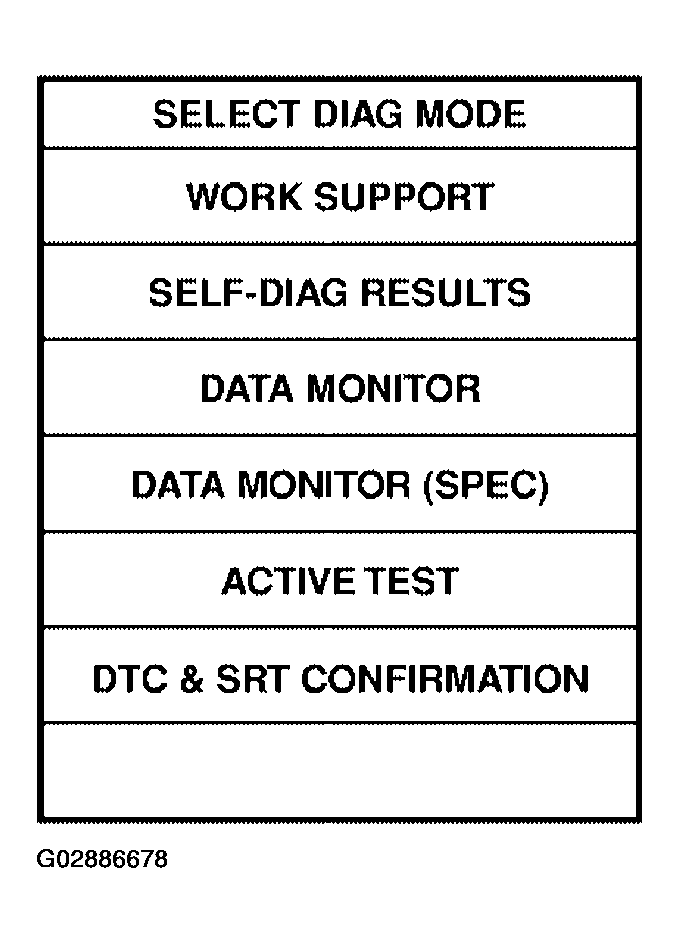

    Fig 2: Scan Tool Display "Select Diag Mode"
    G02886678Courtesy of NISSAN MOTOR CO., U.S.A.
