With Consult-II

WARNING: This page is about a different variant/trim than selected.

Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

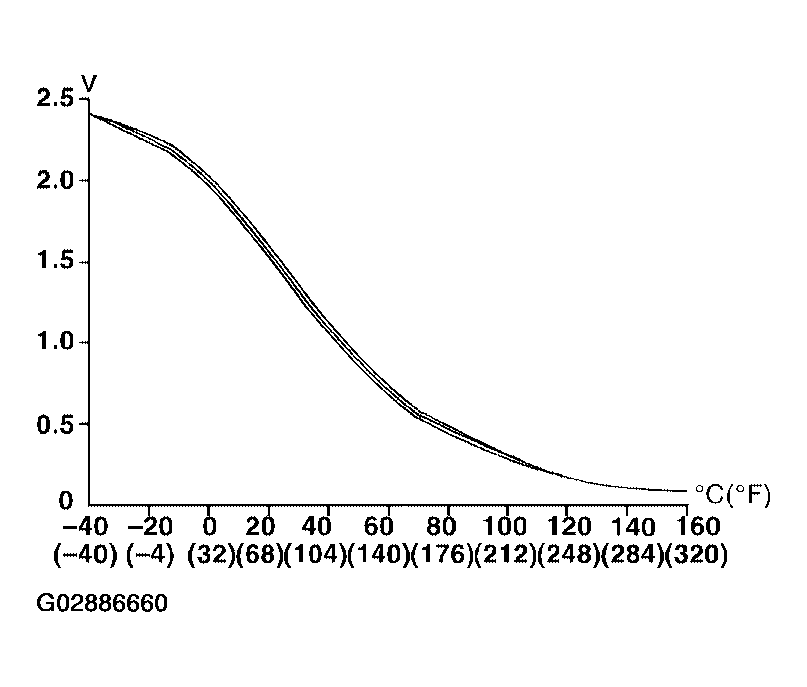

Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V

If out of range, drive vehicle to decrease voltage (warm up the fluid) or stop engine to increase voltage (cool down the fluid).
Select "TCC S/V FNCTN P0744" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".

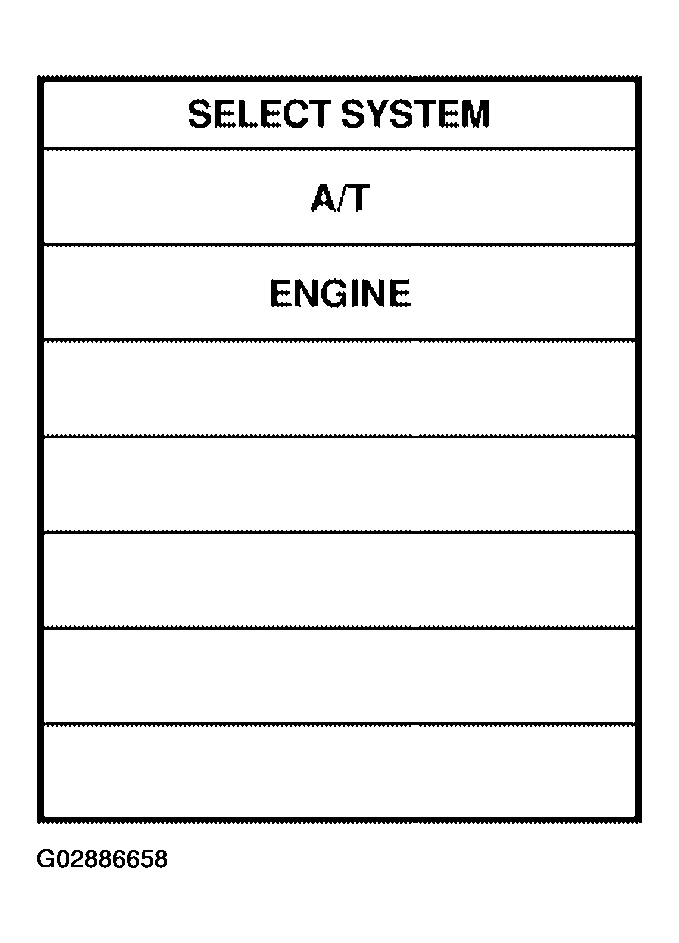

Fig 1: Scan Tool Display "Select System"
Courtesy of NISSAN MOTOR CO., U.S.A.
Accelerate vehicle to more than 80 km/h (50 MPH) and maintain the following condition continuously until "TESTING" has turned to "COMPLETE". (It will take approximately 30 seconds after "TESTING" shows.)
THROTTLE POSI: 1.0/8 - 2.0/8 (at all times during step 4)

Selector lever: D position

TCC S/V DUTY: More than 94%

VHCL/S SE.A/T: Constant speed of more than 80 km/h (50 MPH)
- Check that "GEAR" shows "4".
- For shift schedule, refer to " SHIFT SCHEDULE ".
- If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAG RESULTS". In case a 1st trip DTC other than P0744 is shown, refer to applicable "TROUBLE DIAGNOSIS FOR DTC".

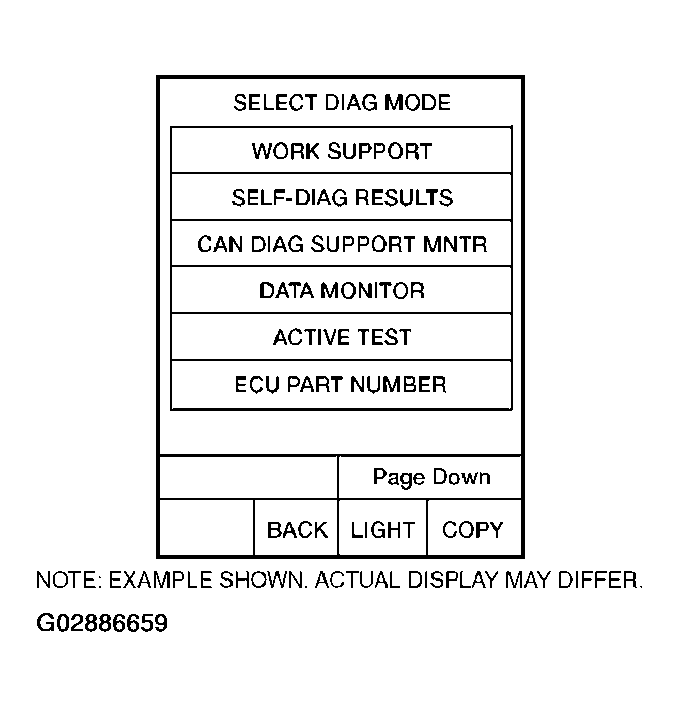

  Fig 2: Scan Tool Display "Select Diag Mode"
  Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that "OK" is displayed. (If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE".)
Refer to "DIAGNOSTIC PROCEDURE ".

Refer to "SHIFT SCHEDULE ".

Fig 3: Test Result Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
