With Consult-II

WARNING: This page is about a different variant/trim than selected.

Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

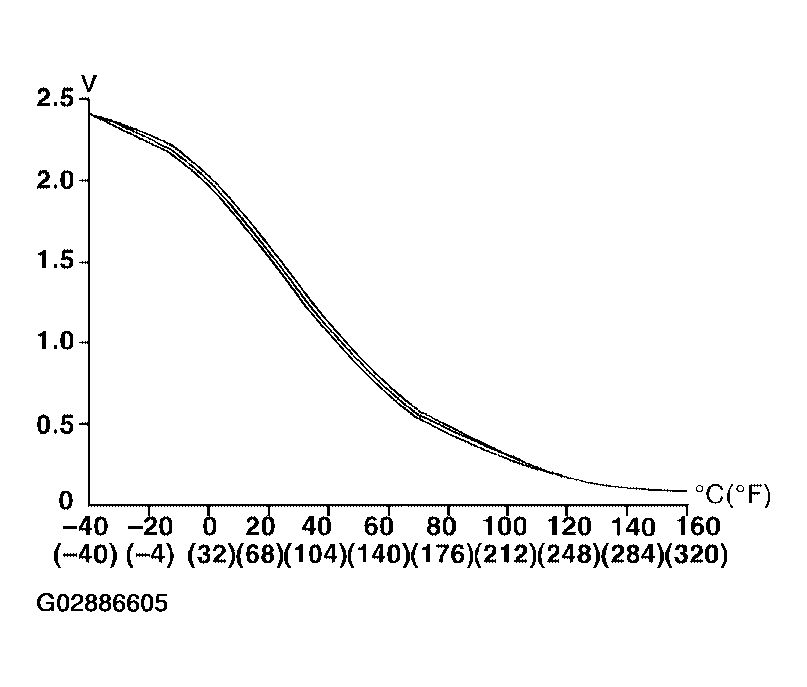

Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V

If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid).
Select "1ST GR FNCTN P0731" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".

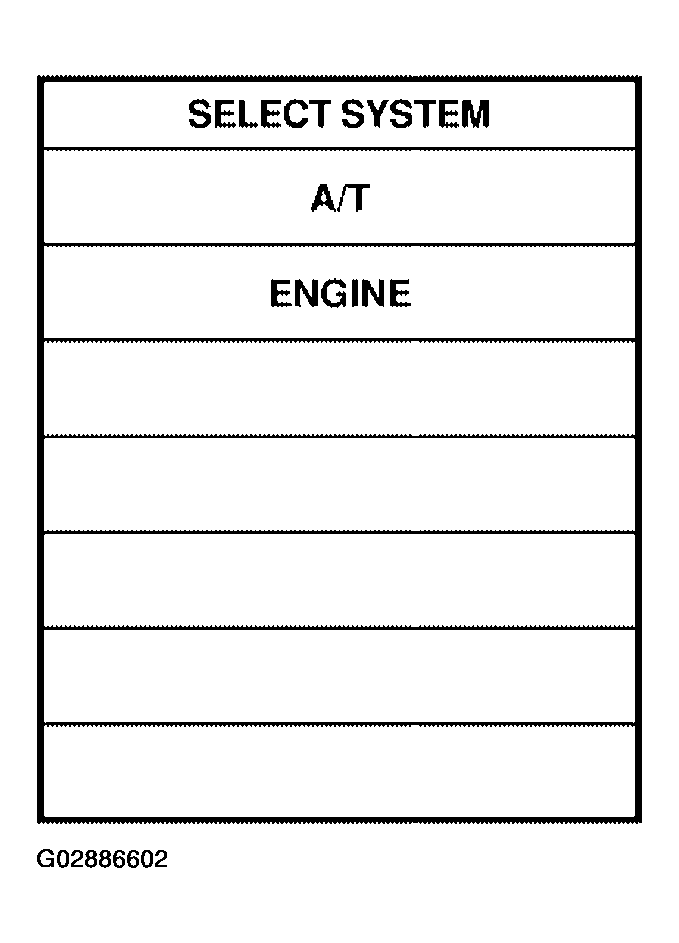

Fig 1: Scan Tool Display "Select System A/T"
Courtesy of NISSAN MOTOR CO., U.S.A.
Accelerate vehicle to 20 to 25 km/h (12 to 16 MPH) under the following condition and release the accelerator pedal completely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4) Selector lever: D position
- Check that "GEAR" shows "2" after releasing pedal.
Depress accelerator pedal to WOT (more than 7.0/8 of "THROTTLE POSI") quickly from a speed of 20 to 25 km/h (12 to 16 MPH) until "TESTING" changes to "STOP VEHICLE" or "COMPLETED". (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to "DIAGNOSTIC PROCEDURE ".

If "STOP VEHICLE" appears on CONSULT-II screen, go to the following step.
- Check that "GEAR" shows "1" when depressing accelerator pedal to WOT.
- If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAG RESULTS" for "ENGINE". In case a 1st trip DTC other than P0731 is shown, refer to applicable "TROUBLE DIAGNOSIS FOR DTC".

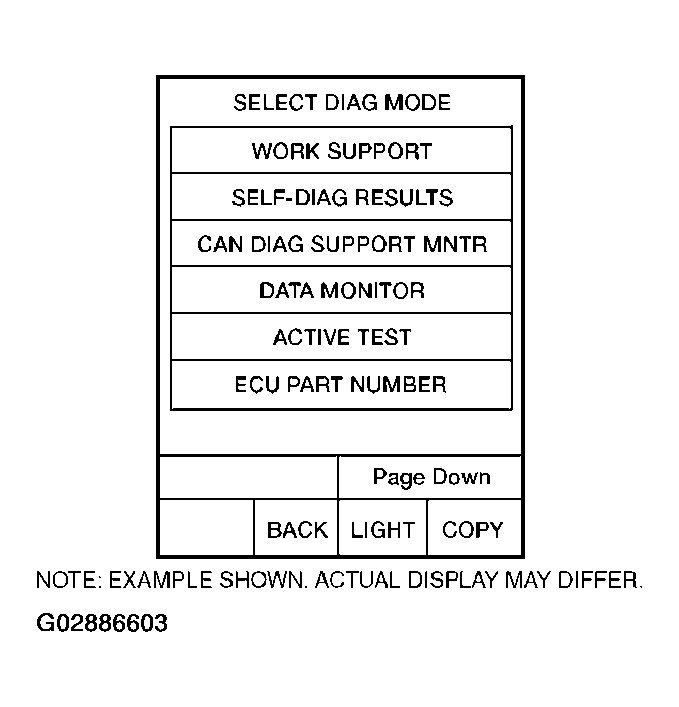

  Fig 2: Scan Tool Display "Select Diag Mode"
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.
Follow the instruction displayed. (Check for normal shifting referring to the figureFig 3 below.)

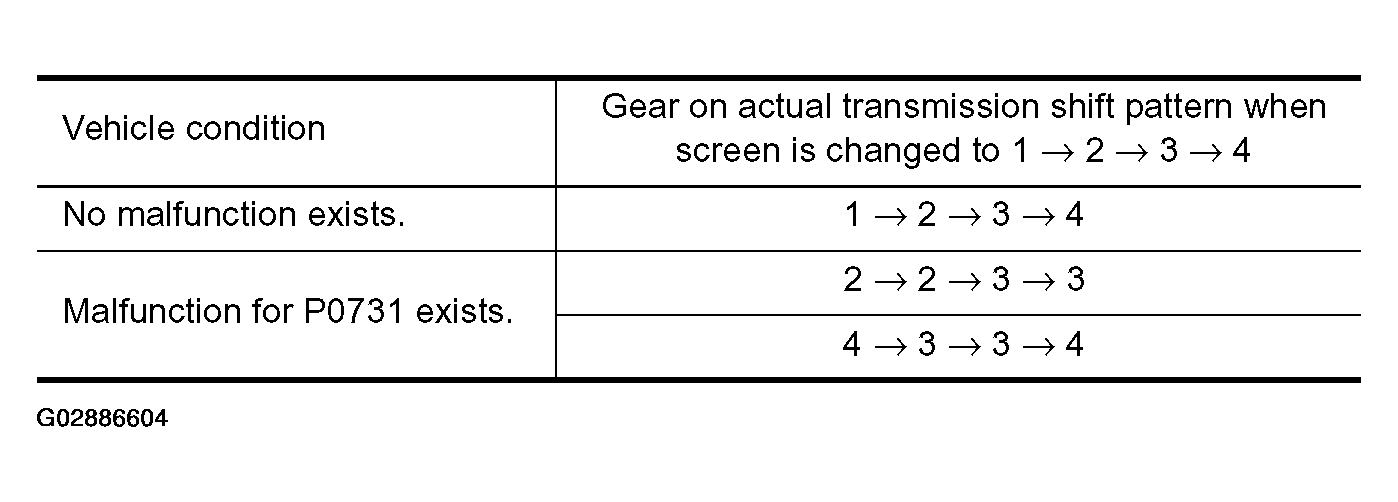

Fig 3: Transmission Shift Pattern Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that "OK" is displayed. (If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE".)
Refer to "DIAGNOSTIC PROCEDURE ".

Refer to "SHIFT SCHEDULE ".

Fig 4: Result Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
