Wiring Diagram - AT - ENGSS

WARNING: This page is about a different variant/trim than selected.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

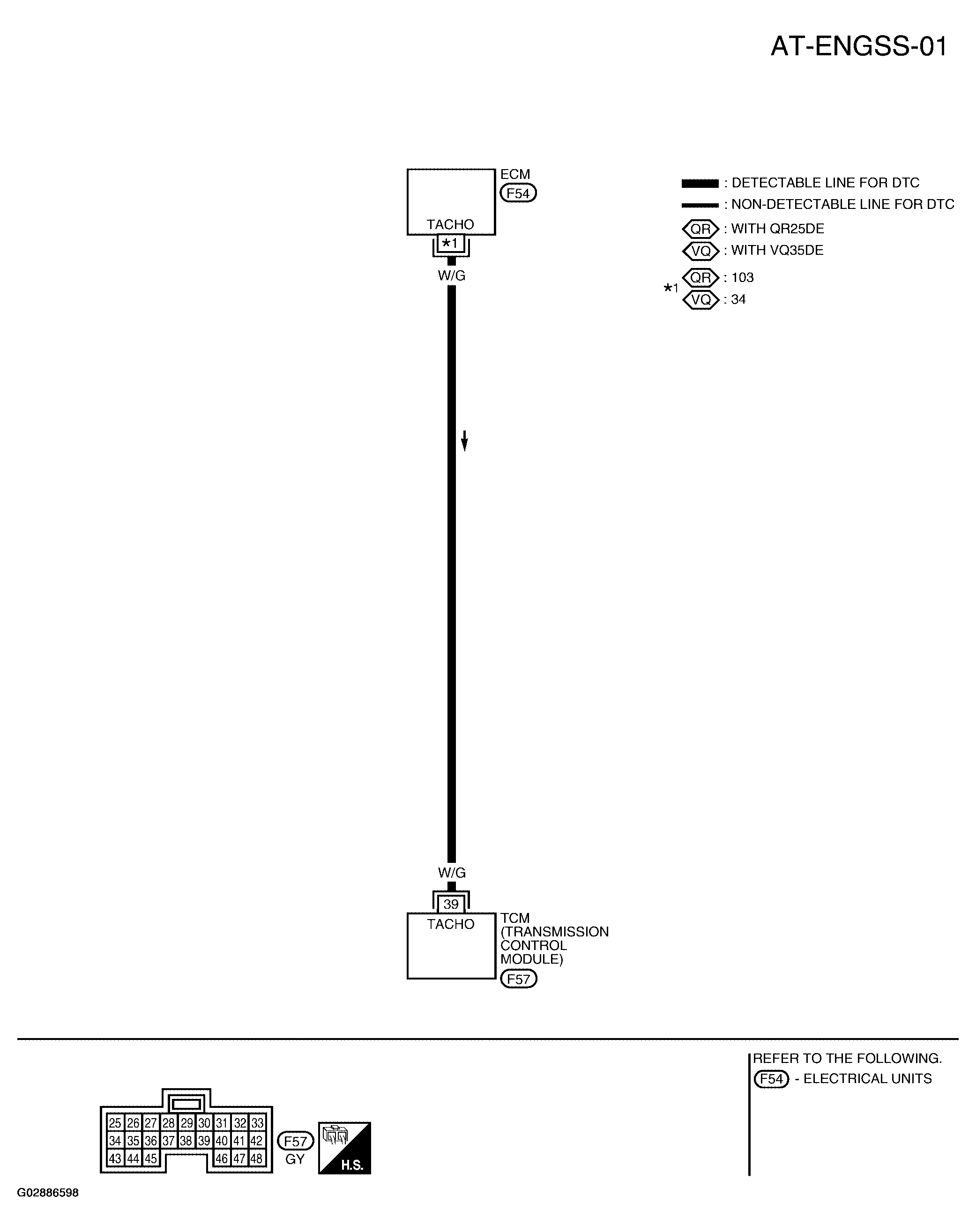

Fig 1: Wiring Diagram - AT - ENGSS - AT-ENGSS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

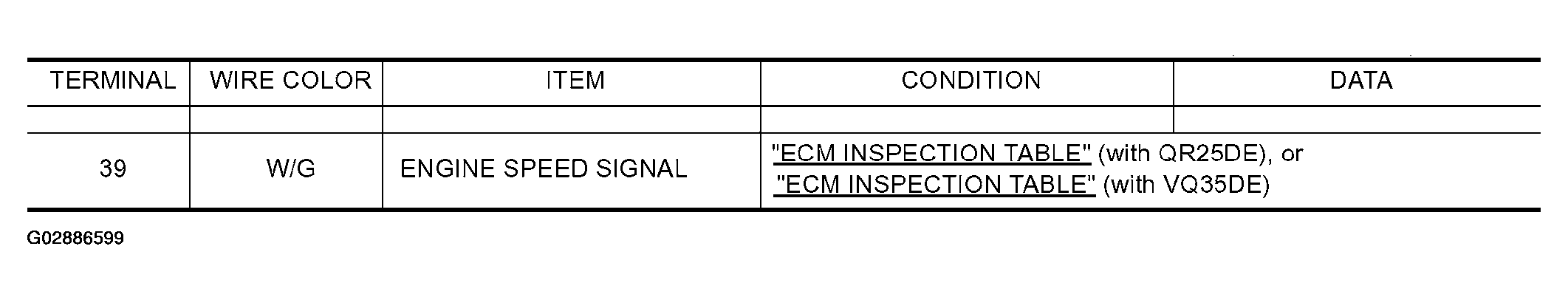

Fig 2: Terminal Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
