With Consult-II

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

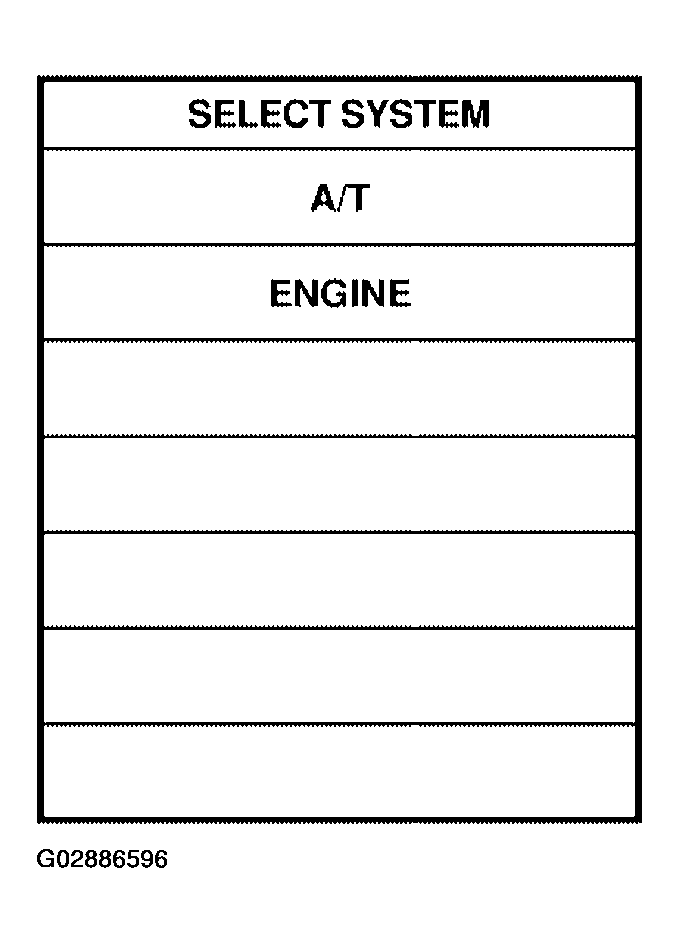

Fig 1: Scan Tool Display "Select System A/T"
Courtesy of NISSAN MOTOR CO., U.S.A.

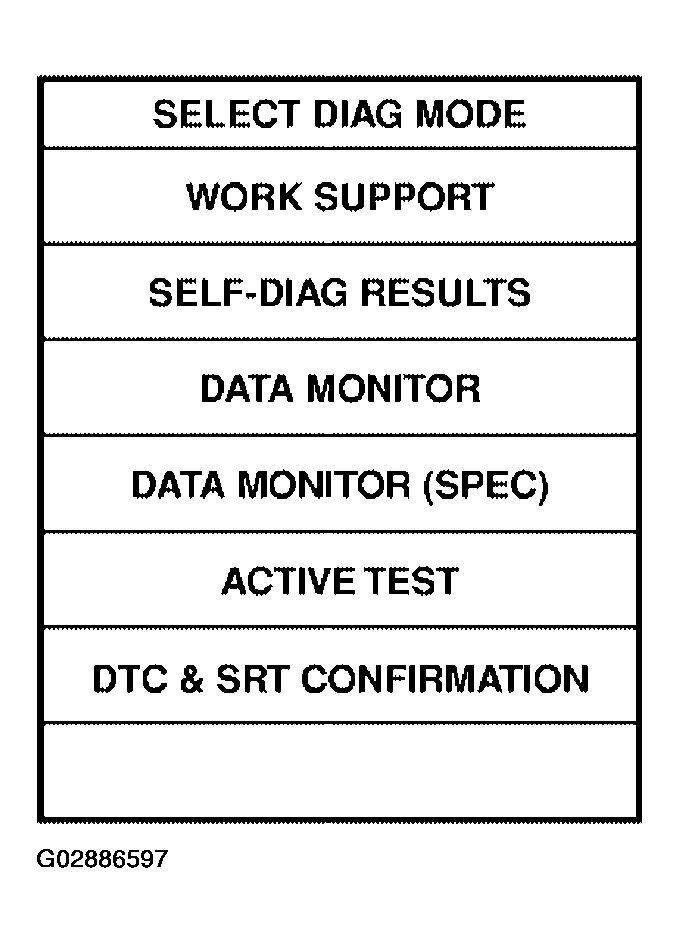

Fig 2: Scan Tool Display "Select Diag Mode Work Support"
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 10 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: More than 1.2V

Selector lever: D position
