With Consult-II

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

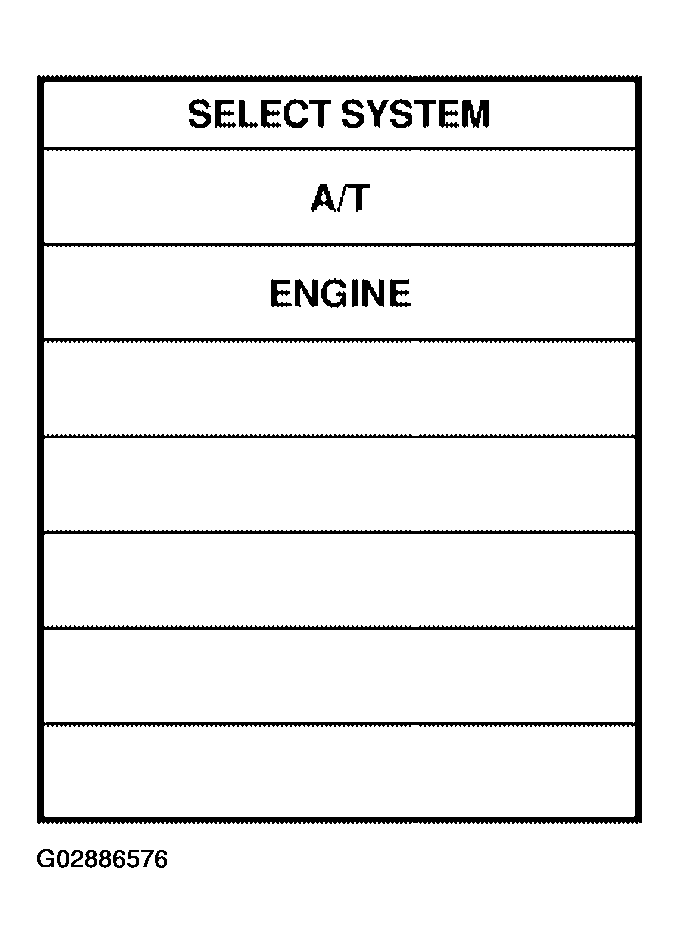

    Fig 1: Scan Tool Display "Select System"
    G02886576Courtesy of NISSAN MOTOR CO., U.S.A.

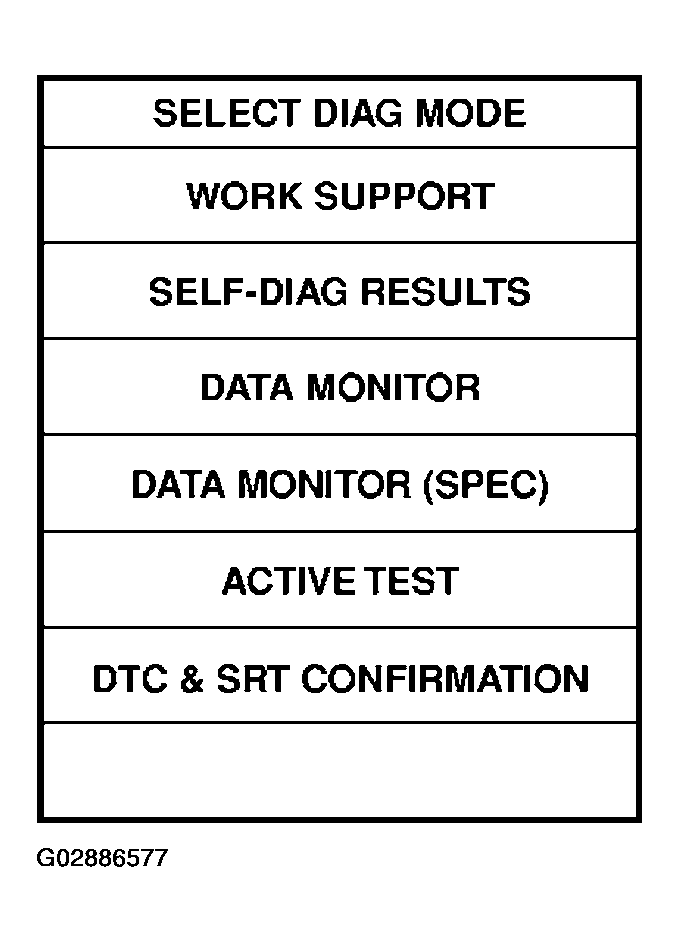

    Fig 2: Scan Tool Display "Select Diag Mode"
    G02886577Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select "ECM INPUT SIGNALS" touch "START".
  3. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)

    ENG SPEED: 450 RPM or more

    VEHICLE SPEED: 10 km/h (6 MPH) or more

    THRTL POSI: More than 1.2V

    Selector lever: D position
