Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECTION START

    Do you have CONSULT-II?

    Yes or No

    1. Yes: GO TO 2.
    2. No: GO TO  6.
  2. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)

    With CONSULT-II

    1. Start engine.
    2. Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
    3. Read out the value of "FLUID TEMP SE".

      Voltage :Cold [20°C (68°F)] --> Hot [80°C (176°F)]

      :Approximately 1.5V --> 0.5V

    OK or NG

    1. OK: GO TO  7.
    2. NG: GO TO 3.

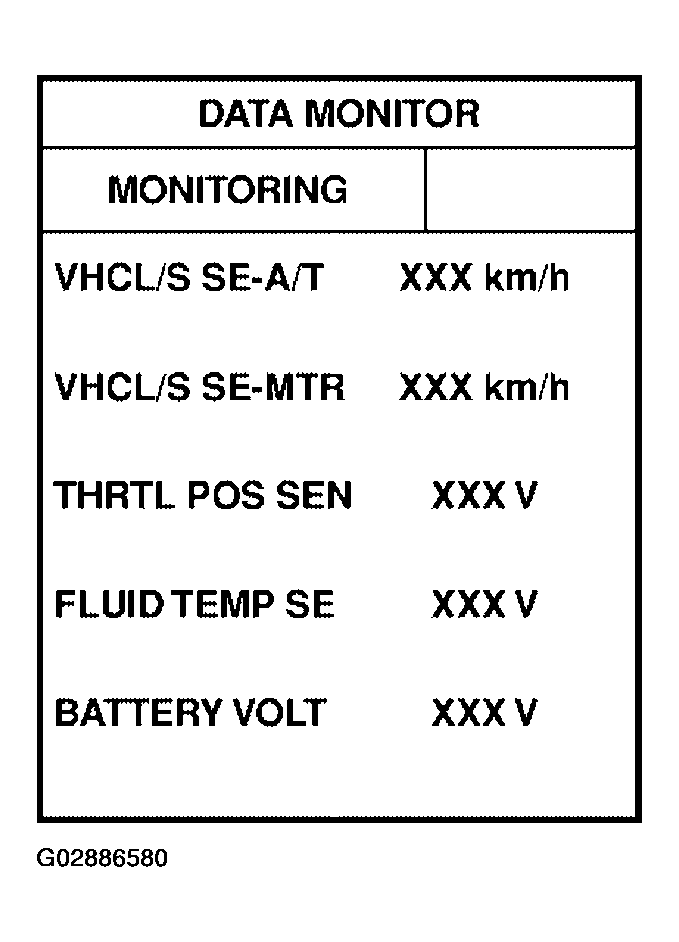

      Fig 1: Scan Tool Display "Data Monitor"
      G02886580Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
    1. Turn ignition switch to OFF position.
    2. Disconnect terminal cord assembly connector in engine compartment.
    3. Check resistance between terminal cord F30 terminals 6 and 7 (component side) when A/T is cold.

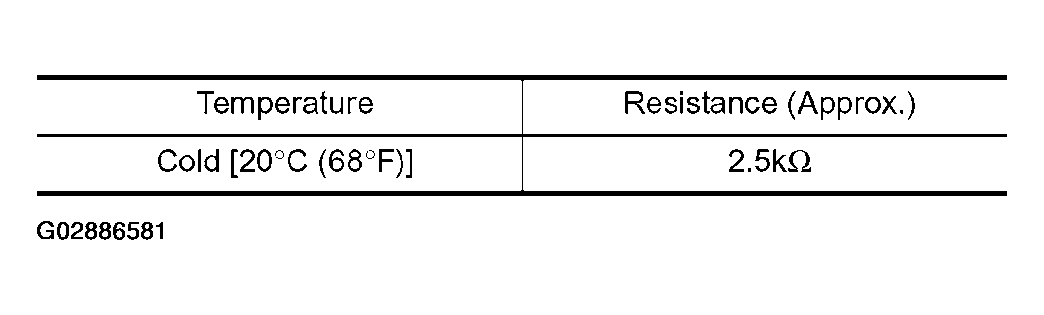

      Fig 2: Temperature & Resistance Specification Chart
      G02886581Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Reinstall any part removed.

    OK or NG

    1. OK: GO TO 4.
    2. NG: GO TO  5.

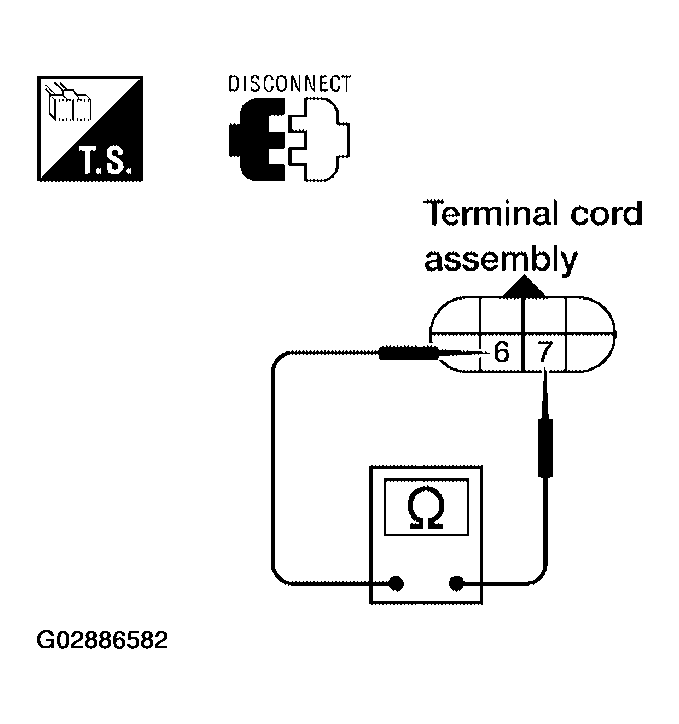

      Fig 3: Terminal Cord F30 Terminals 6 & 7 Continuity Test
      G02886582Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING ITEM

    Check the following items:

    • Harness for short to ground or short to power or open between TCM, ECM and terminal cord assembly (Main harness)
    • Ground circuit for ECM

      Refer to "POWER SUPPLY ROUTING CIRCUIT ".

    OK or NG

    1. OK: GO TO  7.
    2. NG: Repair or replace damaged parts.
  5. DETECT MALFUNCTIONING ITEM
    1. Remove oil pan.
    2. Check the following items:
      • A/T fluid temperature sensor

        Check resistance between two terminals while changing temperature as shown in figure.

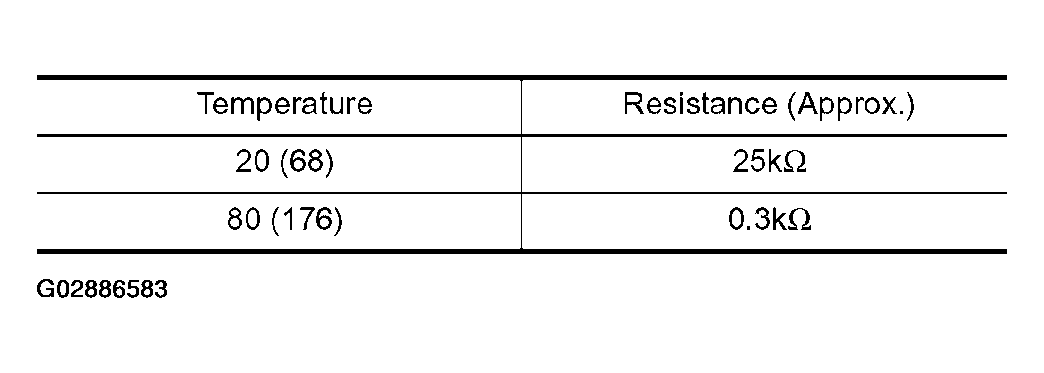

        Fig 4: Temperature & Resistance Specification Chart
        G02886583Courtesy of NISSAN MOTOR CO., U.S.A.
      • Harness of terminal cord assembly for short or open

    OK or NG

    1. OK: GO TO  7.
    2. NG: Repair or replace damaged parts.

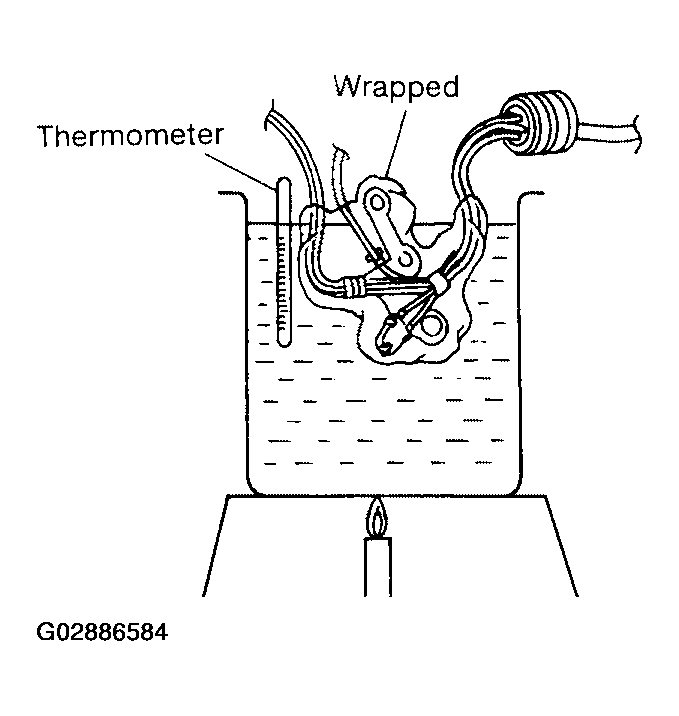

      Fig 5: Checking Resistance Between Two Terminals While Changing Temperature
      G02886584Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)

    Without CONSULT-II

    1. Start engine.
    2. Check voltage between TCM terminal 47 (G) and ground while warming up A/T.

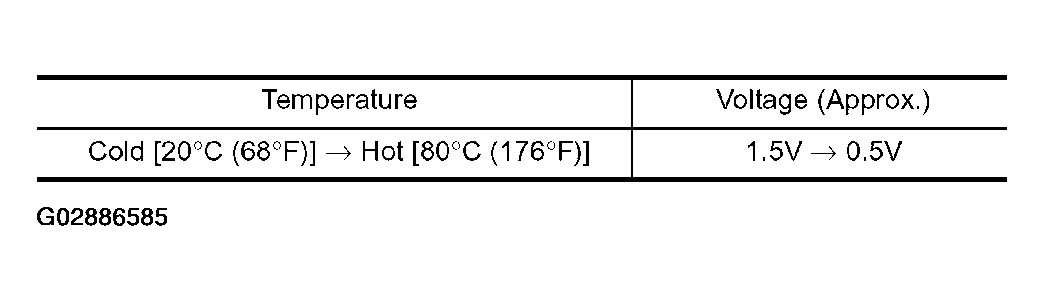

    Fig 6: Temperature & Voltage Specification Chart
    G02886585Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 7.
    2. NG: GO TO  3.

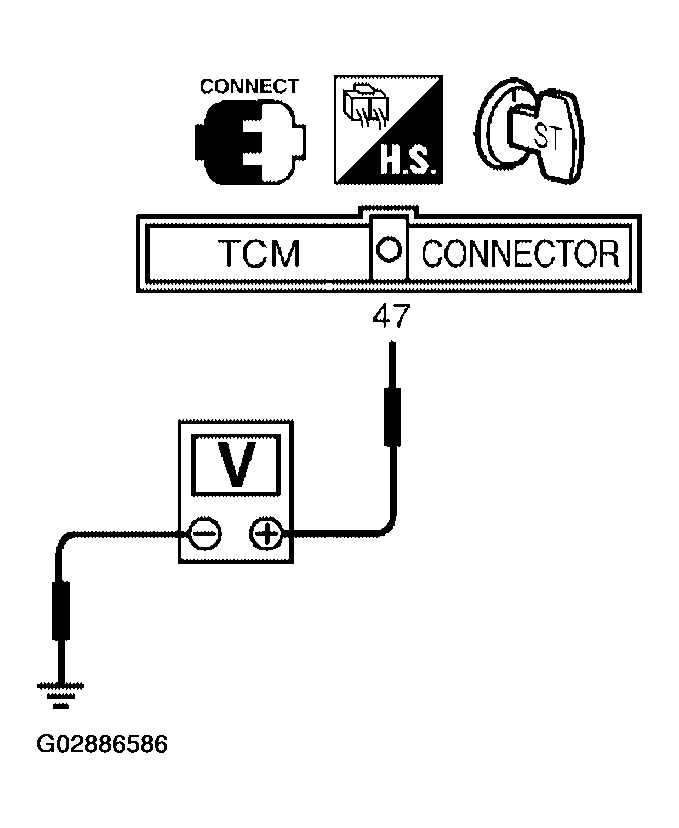

      Fig 7: TCM Terminal 47 (G) & Ground Voltage Test
      G02886586Courtesy of NISSAN MOTOR CO., U.S.A.
  7. CHECK DTC

    Perform "DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE ".

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 8.
  8. CHECK TCM INSPECTION
    1. Perform TCM input/output signal inspection.
    2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

    OK or NG

    1. OK: INSPECTION END
    2. NG: Repair or replace damaged parts.
