Wiring Diagram - AT - BA/FTS

WARNING: This page is about a different variant/trim than selected.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

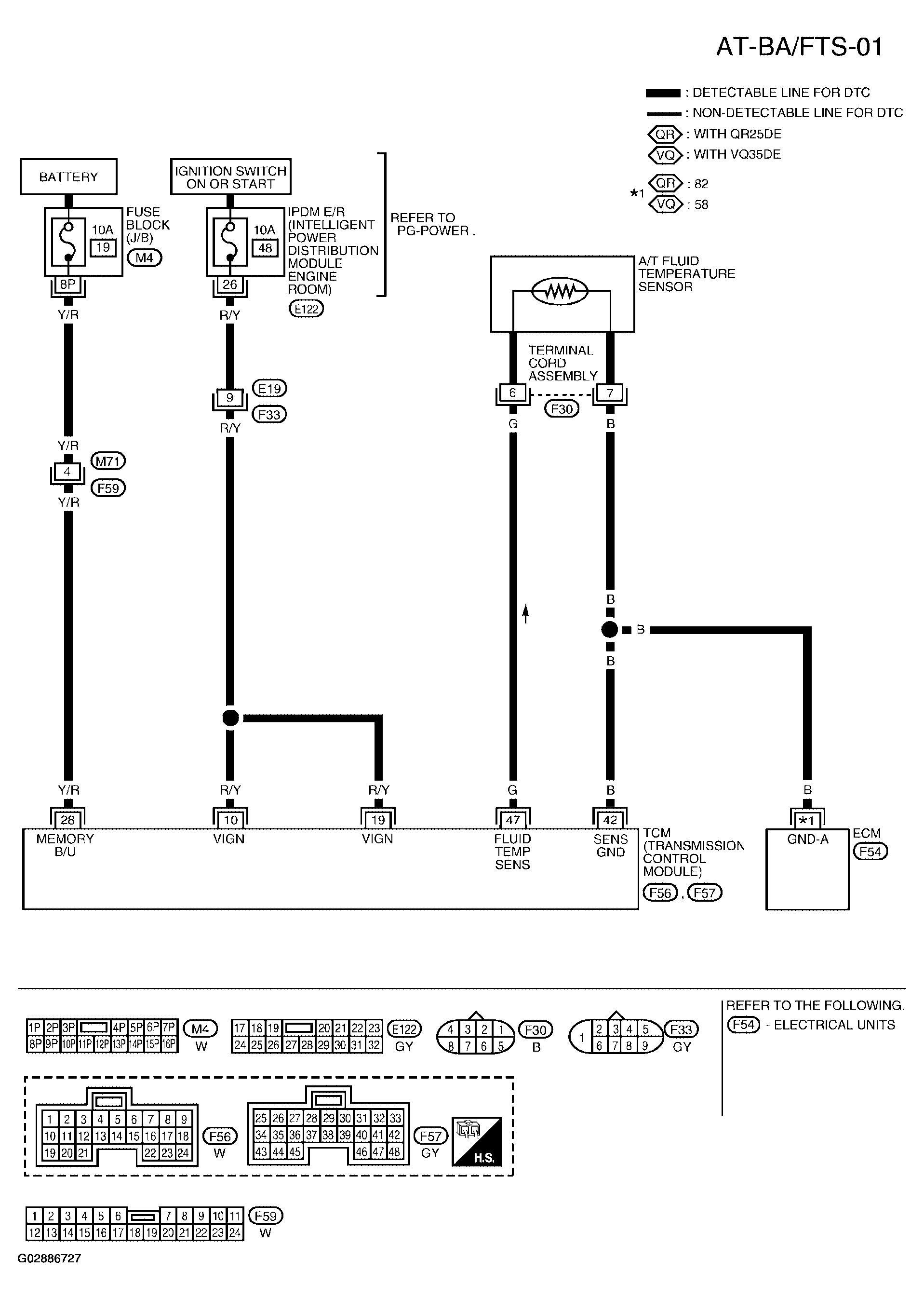

Fig 1: Wiring Diagram - At - Ba/Fts-AT-BA/FTS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

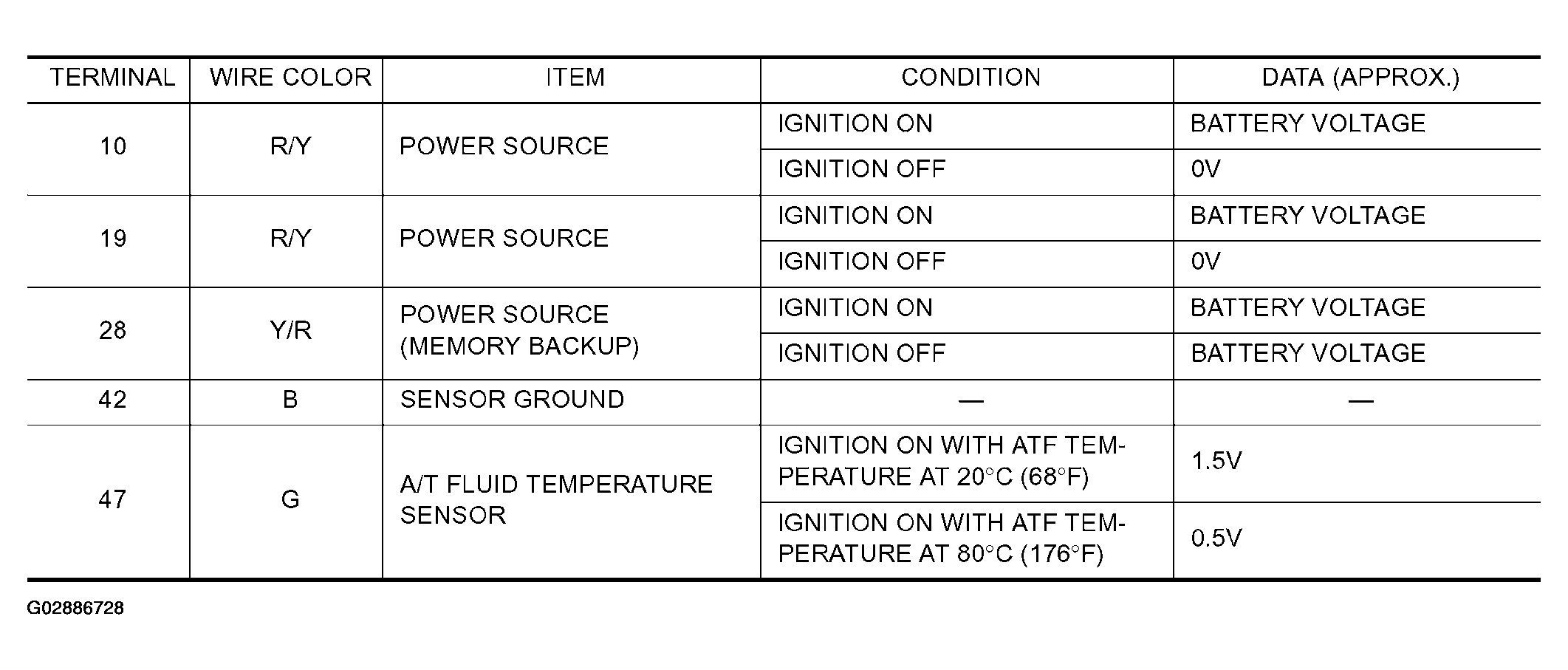

Fig 2: Terminal Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Terminal & reference value measured between each terminal
