Consult-II Reference Value In Data Monitor Mode

WARNING: This page is about a different variant/trim than selected.

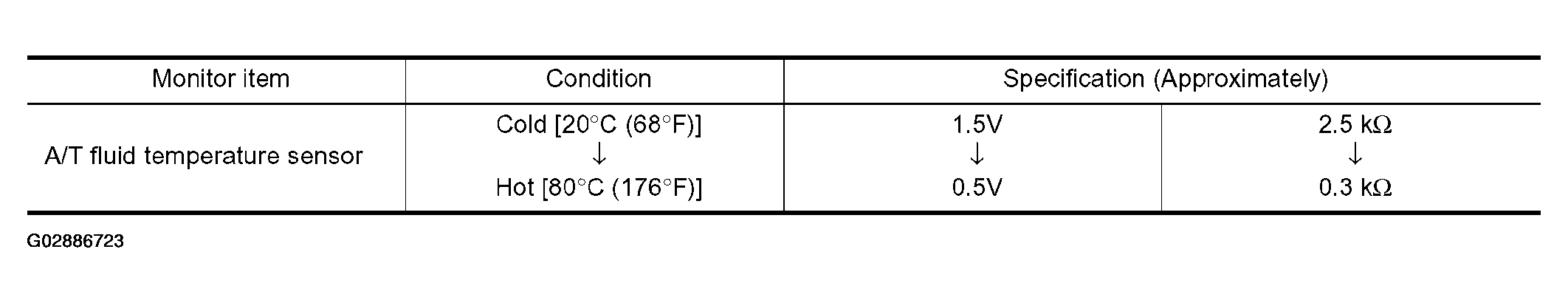

Fig 1: Consult-II Reference Value In Data Monitor Mode Table
G02886723Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Specification data are reference values.
