Reduction Pinion Gear Bearing Preload

WARNING: This page is about a different variant/trim than selected.

Remove transmission case and final drive assembly from converter housing.
Select proper thickness of reduction pinion gear bearing adjusting shim using the following procedures.
1. Place reduction pinion gear on transmission case as shown.

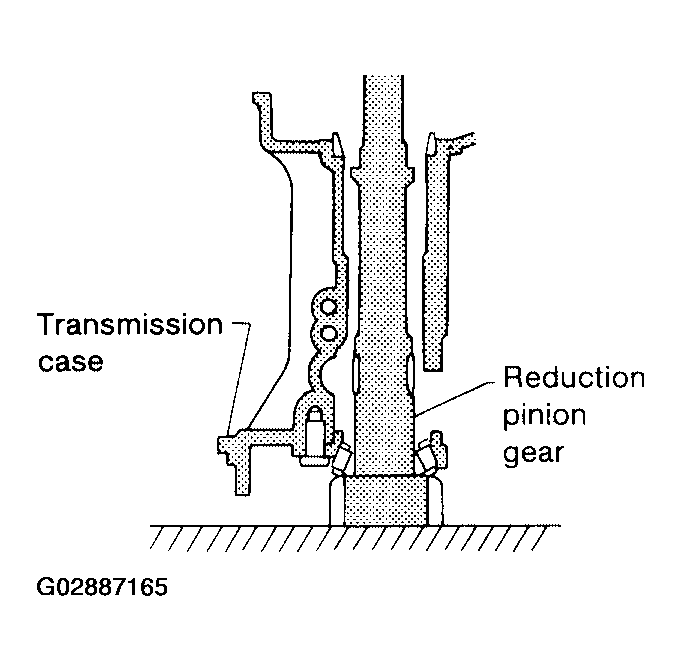

  Fig 1: Placing Reduction Pinion Gear On Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Place idler gear bearing on transmission case.
3. Measure dimensions "B" "C" and "D" and calculate dimension "A".
  A = D - (B + C)

  "A": Distance between the surface of idler gear bearing inner race and the adjusting shim mating surface of reduction pinion gear.

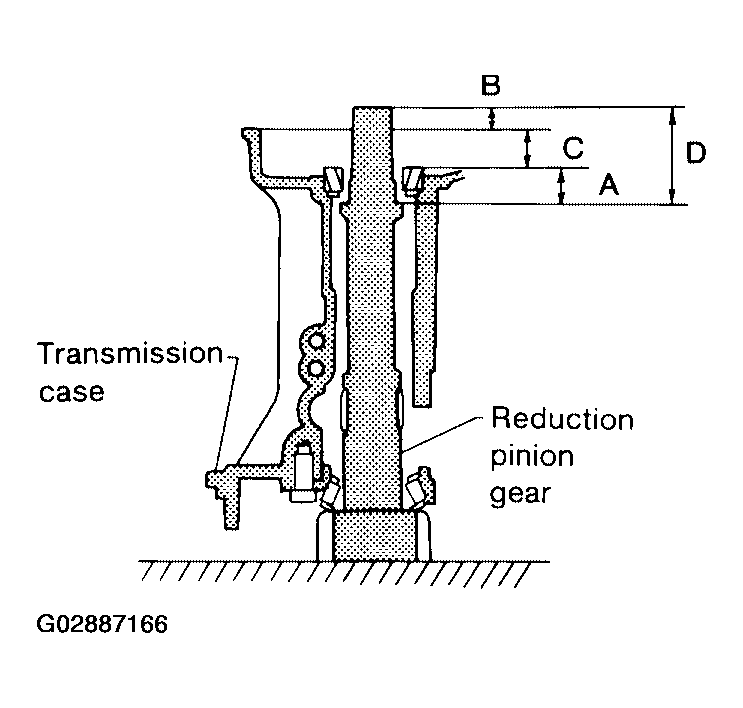

  Fig 2: Measuring Dimensions B, C & D
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Measure dimension "B" between the end of reduction pinion gear and the surface of transmission case.
  - Measure dimension "B" in at least two places.

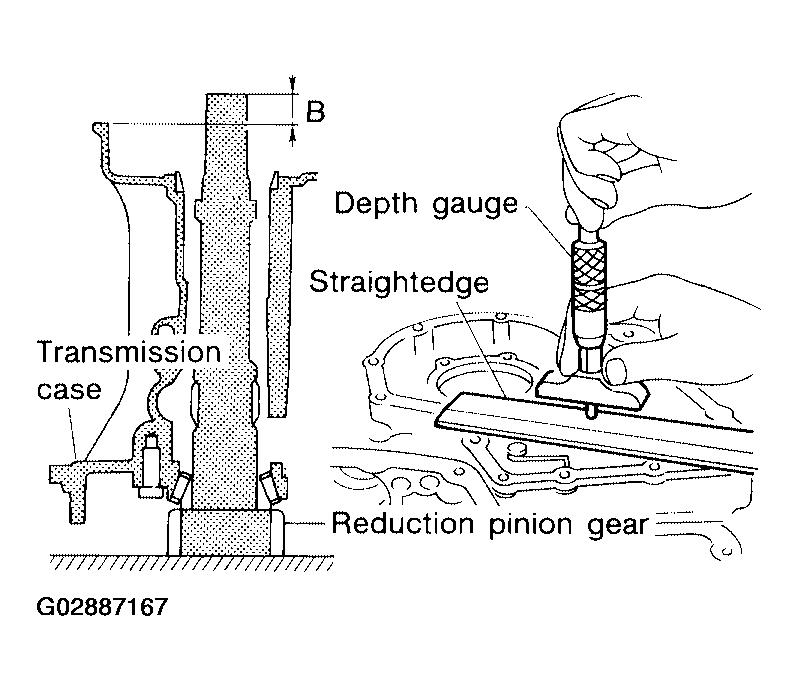

    Fig 3: Measuring Dimension B Between End Of Reduction Pinion Gear & Transmission Case Surface
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - Measure dimension "C" between the surface of idler gear bearing inner race and the surface of transmission case.
  - Measure dimension "C" in at least two places.

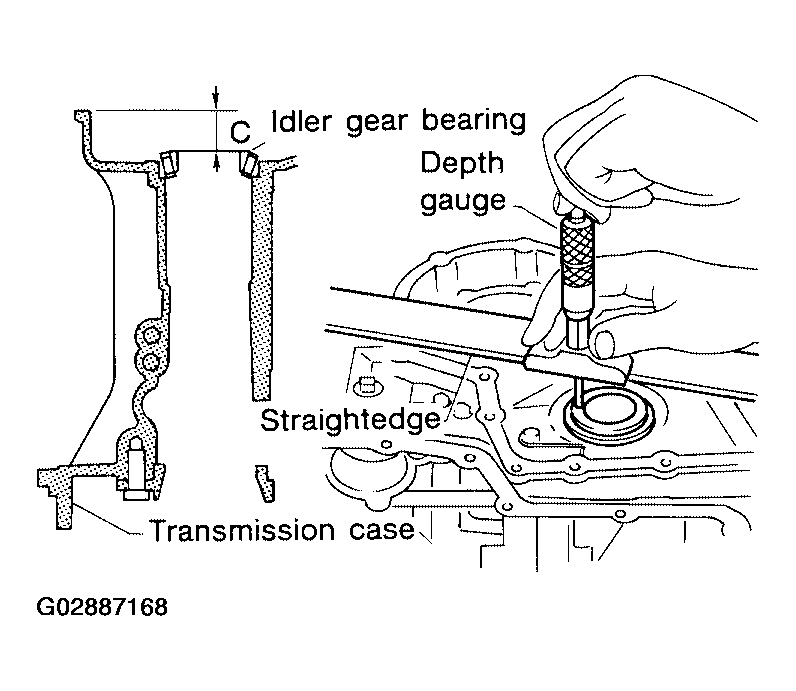

    Fig 4: Measuring Dimension C Between Idler Gear Bearing Inner Surface & Transmission Case Surface
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - Measure dimension "D" between the end of reduction pinion gear and the adjusting shim mating surface of reduction pinion gear.
  - Measure dimension "D" in at least two places.
  - Calculate dimension "A".
    A = D - (B + C)

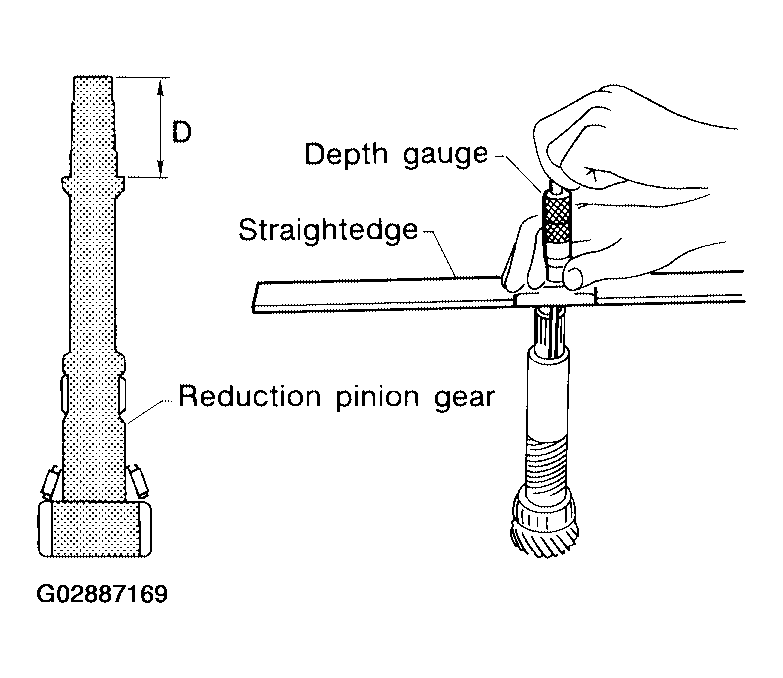

    Fig 5: Measuring Dimension D Between Reduction Pinion Gear End & Adjusting Shim Mating Surface
    Courtesy of NISSAN MOTOR CO., U.S.A.
4. Measure dimension "E" between the end of idler gear and the idler gear bearing inner race mating surface of idler gear.
  - Measure dimension "E" in at least two places.
5. Select proper thickness of reduction pinion gear bearing adjusting shim.
  Proper shim thickness = A - E - 0.05 mm (0.0020 in)*

  (*: Bearing preload)

  Reduction pinion gear bearing adjusting shim: Refer to " REDUCTION PINION GEAR BEARING ADJUSTING SHIMS ".

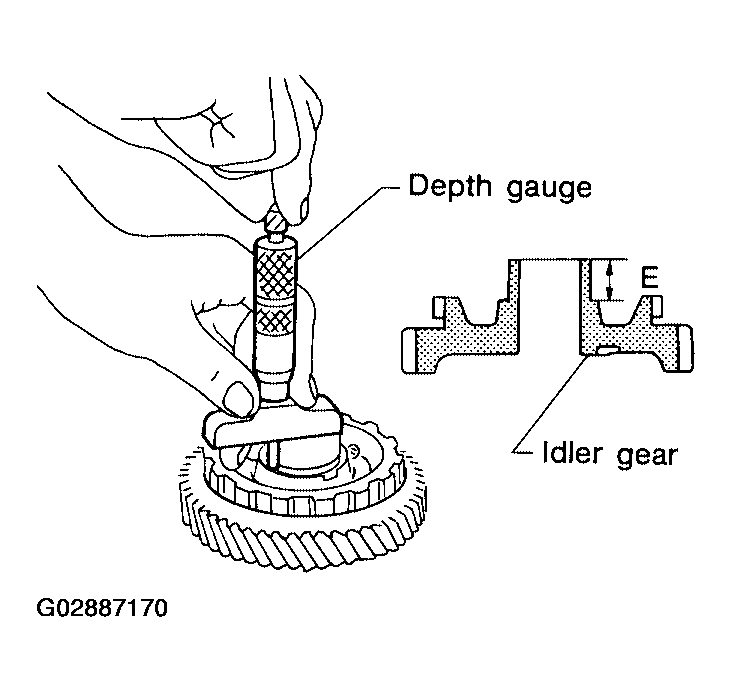

  Fig 6: Measuring Dimension E Between Idler Gear End & Idler Gear Bearing Inner Race Mating Surface
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install reduction gear and reduction gear bearing adjusting shim selected in step e on transmission case.
Press idler gear bearing inner race on idler gear.
Press idler gear on reduction gear.
- Press idler gear until idler gear fully contacts adjusting shim.

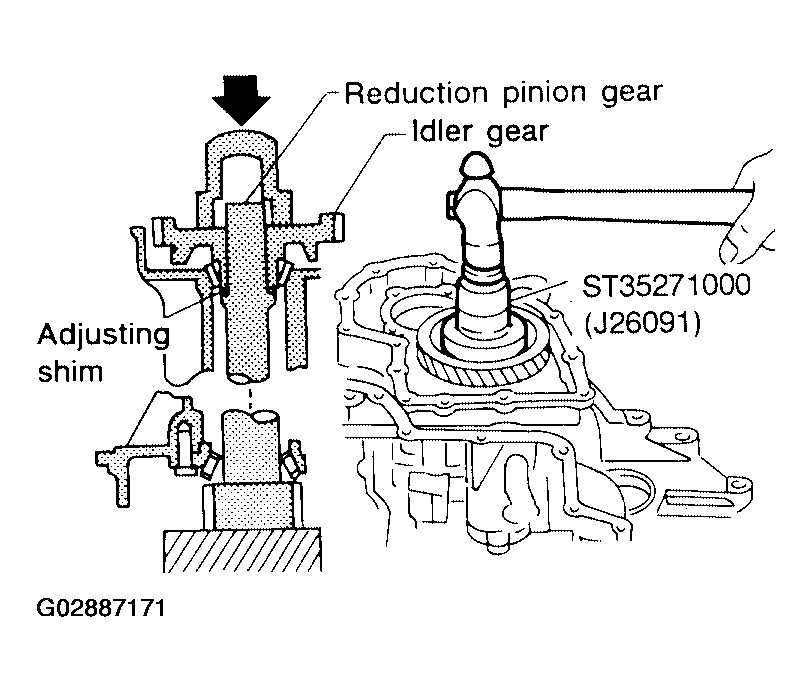

  Fig 7: Installing Reduction Pinion Gear & Reduction Pinion Gear Bearing Adjusting Shim
  Courtesy of NISSAN MOTOR CO., U.S.A.

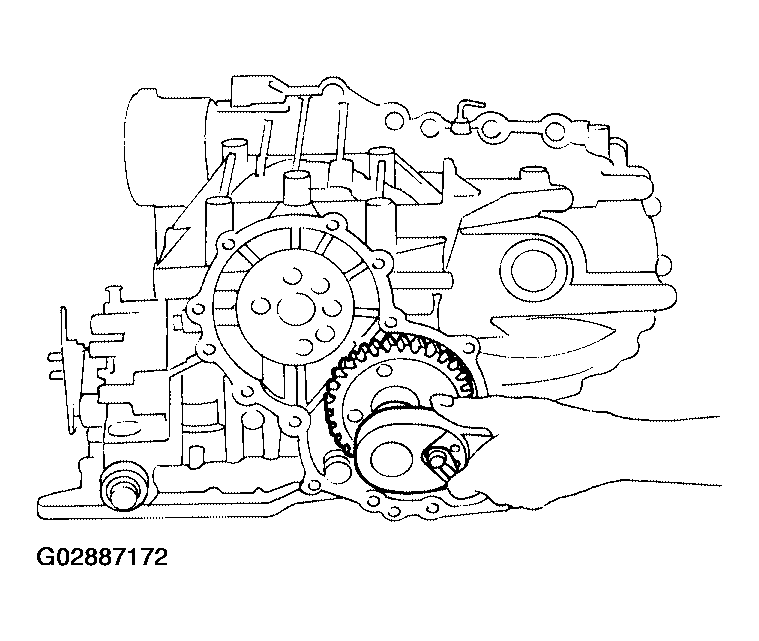

Tighten idler gear lock nut to the specified torque. Refer to "OVERHAUL ".
- Lock idler gear with parking pawl when tightening lock nut.

  Fig 8: Tightening Idler Gear Lock Nut
  Courtesy of NISSAN MOTOR CO., U.S.A.

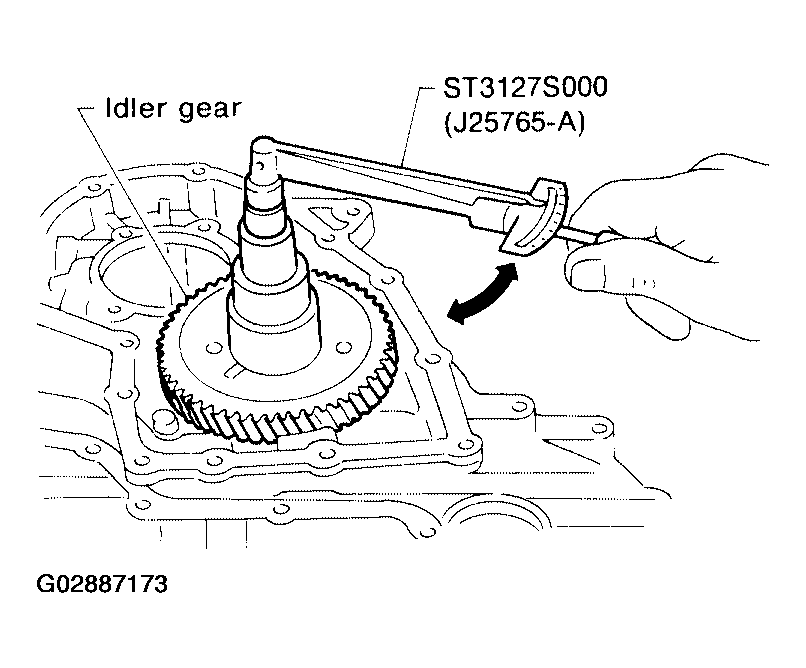

Measure turning torque of reduction pinion gear.
- When measuring turning torque, turn reduction pinion gear in both directions several times to seat bearing rollers correctly.
  Turning torque of reduction pinion gear: 0.05 - 0.39 N.m (0.5 - 4.0 kg-cm, 0.43 - 3.47 in-lb)
- If turning torque is out of specification, decrease or increase thickness of reduction pinion gear bearing adjusting shim.

  Fig 9: Measuring Reduction Pinion Gear Turning Torque
  Courtesy of NISSAN MOTOR CO., U.S.A.
After properly adjusting turning torque, clinch idler gear lock nut as shown.

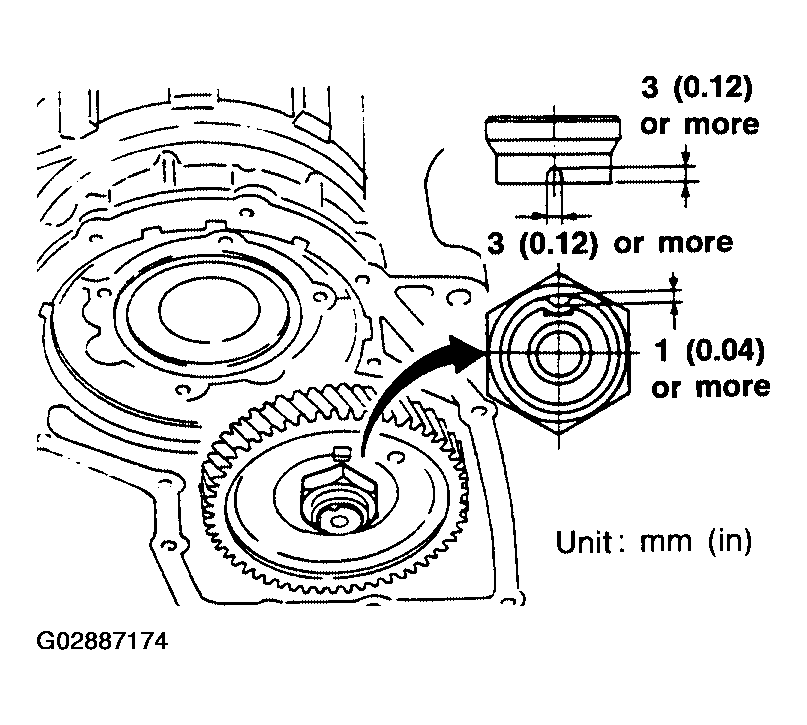

Fig 10: Clinching Idler Gear Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
