Differential Side Bearing Preload

WARNING: This page is about a different variant/trim than selected.
  1. Install differential side bearing outer race without adjusting shim on transmission case.
  2. Install differential side bearing outer race on converter housing.

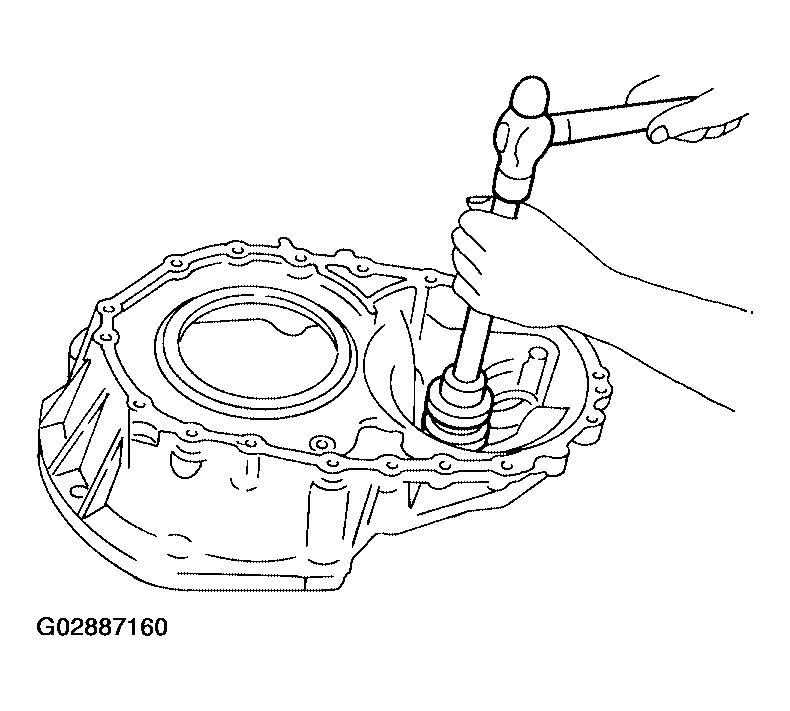

    Fig 1: Installing Differential Side Bearing Outer Race On Converter Housing
    G02887160Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place final drive assembly on transmission case.
  4. Install transmission case on converter housing. Tighten transmission case fixing bolts to the specified torque. Refer to "OVERHAUL ".

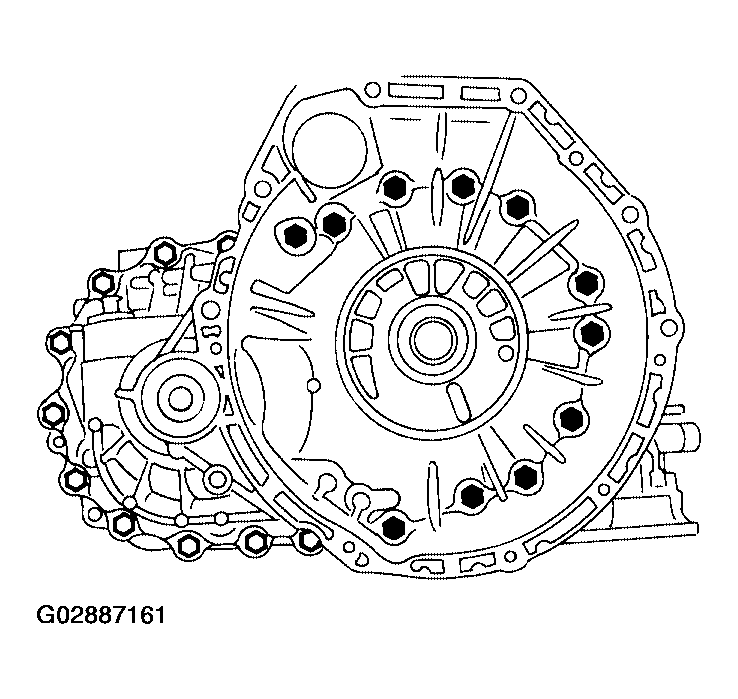

    Fig 2: Tightening Transmission Case Fixing Bolts
    G02887161Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Attach dial indicator on differential case at converter housing side.
  6. Insert Tool into differential side gear from transmission case side.
  7. Move Tool up and down and measure dial indicator deflection.
  8. Select proper thickness of differential side bearing adjusting shim(s).

    Suitable shim thickness = Dial indicator deflection + Specified bearing preload

    Differential side bearing preload adjusting shim: Refer to " DIFFERENTIAL SIDE BEARING PRELOAD ADJUSTING SHIMS  ".

    Bearing preload: 0.05 - 0.09 mm (0.0020 - 0.0035 in)

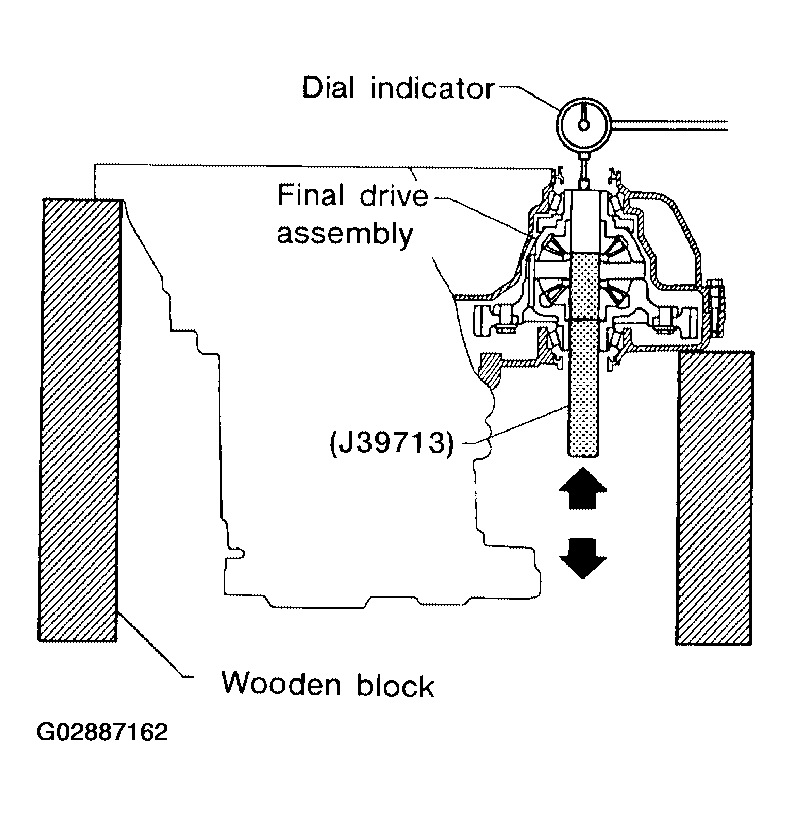

    Fig 3: Attaching Dial Indicator On Differential Case At Converter Housing Side
    G02887162Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove converter housing from transmission case.
  10. Remove final drive assembly from transmission case.
  11. Remove differential side bearing outer race from transmission case.
  12. Reinstall differential side bearing outer race and shim(s) selected from SDS table on transmission case.
  13. Reinstall converter housing on transmission case and tighten transmission case fixing bolts to the specified torque. Refer to , "OVERHAUL ".

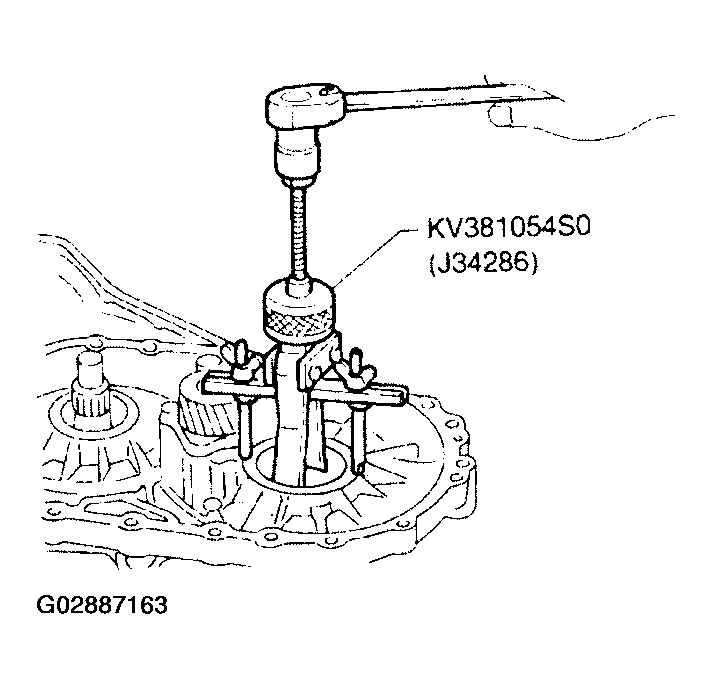

    Fig 4: Removing Differential Side Bearing Outer Race From Transmission Case
    G02887163Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Insert Tool and measure turning torque of final drive assembly.
    • Turn final drive assembly in both directions several times to seat bearing rollers correctly.

      Turning torque of final drive assembly (New bearing): 0.78 - 1.54 N.m (8.0 - 15.7 kg-cm, 6.9 - 13.6 in-lb)

    • When old bearing is used again, turning torque will be slightly less than the above.
    • Make sure torque is close to the specified range.

      Preload adapter: RE4F04B-(J39713)

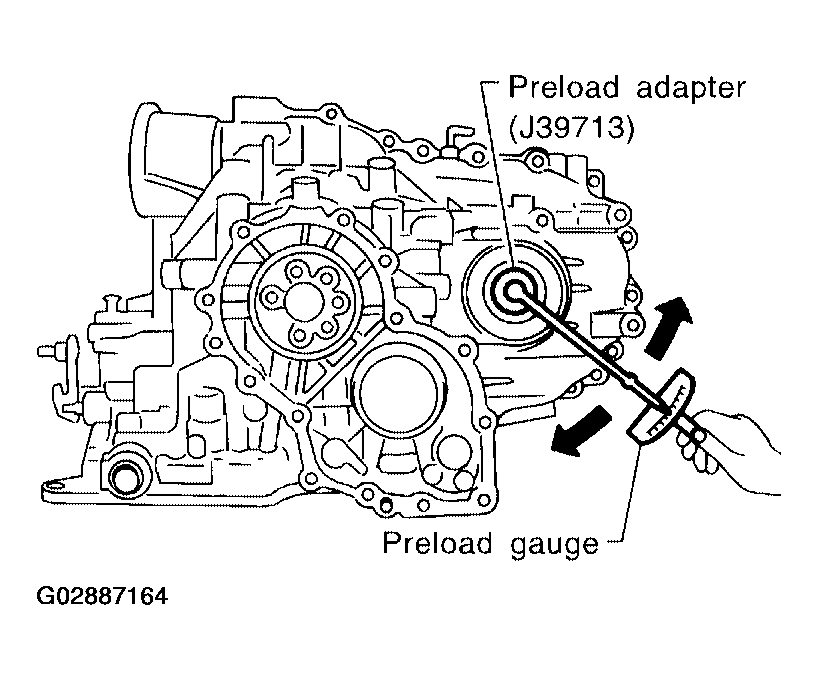

      Fig 5: Measuring Turning Torque Of Final Drive Assembly
      G02887164Courtesy of NISSAN MOTOR CO., U.S.A.
