Removal And Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal.
CAUTION:
Do not crush or kink the air breather hose during installation.
NOTE:
- The paint marks must face upwards on installation.

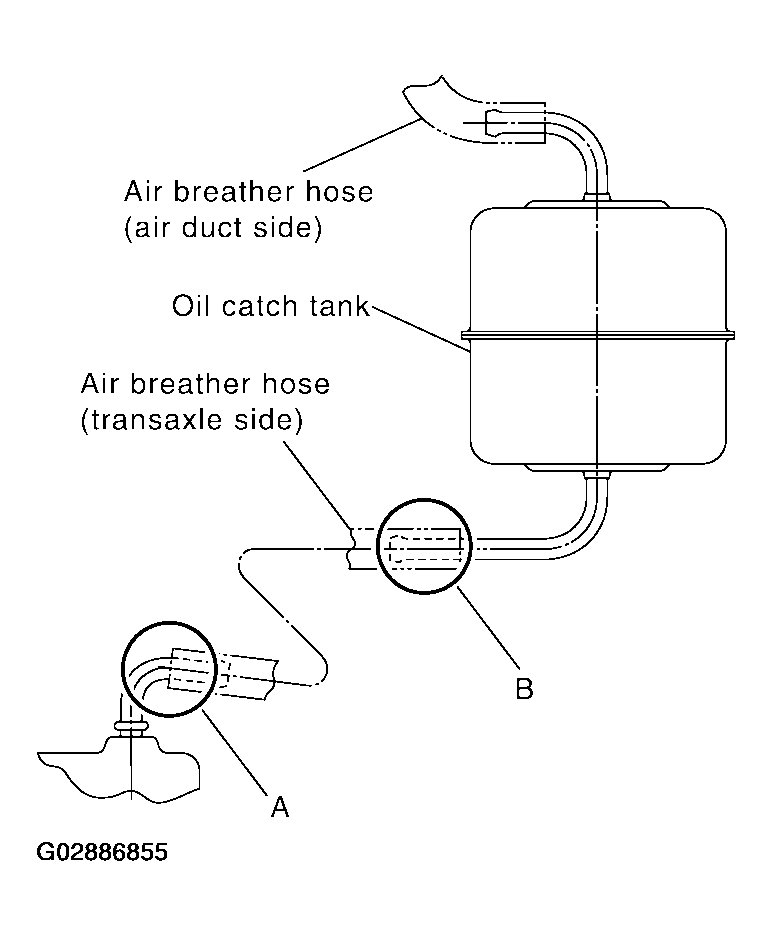

- Insert air breather hose (transaxle side) B into tube stopper when installing air breather hose to the oil catch tank.
- Insert air breather hose (transaxle side) A into the point where the radius stops on the air breather hose when installing to the transaxle.
