Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

CAUTION: Do not to crush or kink the air breather hose during installation

NOTE:

Be sure paint mark A can be seen in the clip when installing the air breather hose to the air cleaner to electronic throttle control actuator tube.
Be sure paint mark B is facing upwards and to the end of the radius in the oil catch tank tube.

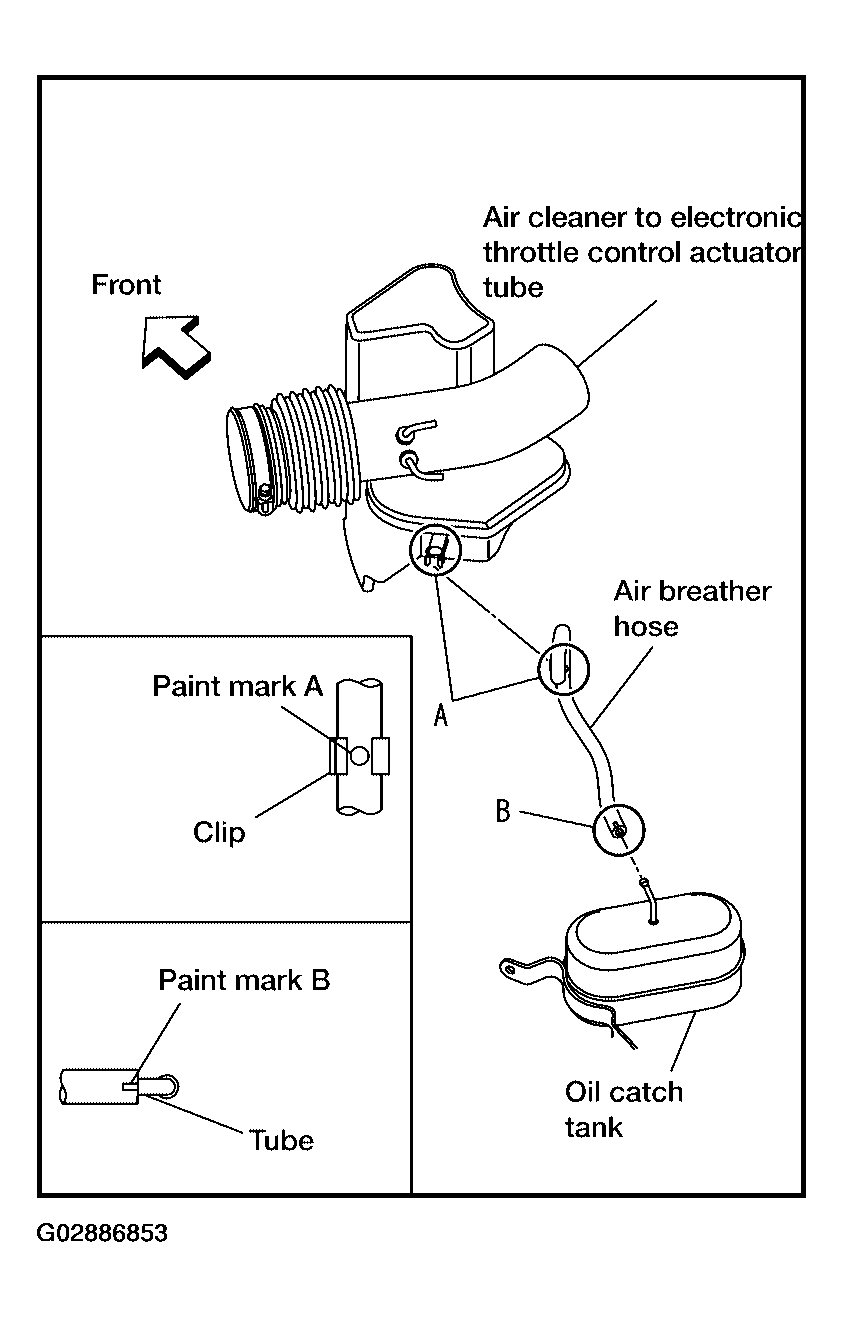

Fig 1: Installing Air Breather Hose (Air Duct Side)
Courtesy of NISSAN MOTOR CO., U.S.A.
