Shift Lock System Electrical Parts Location

WARNING: This page is about a different variant/trim than selected.

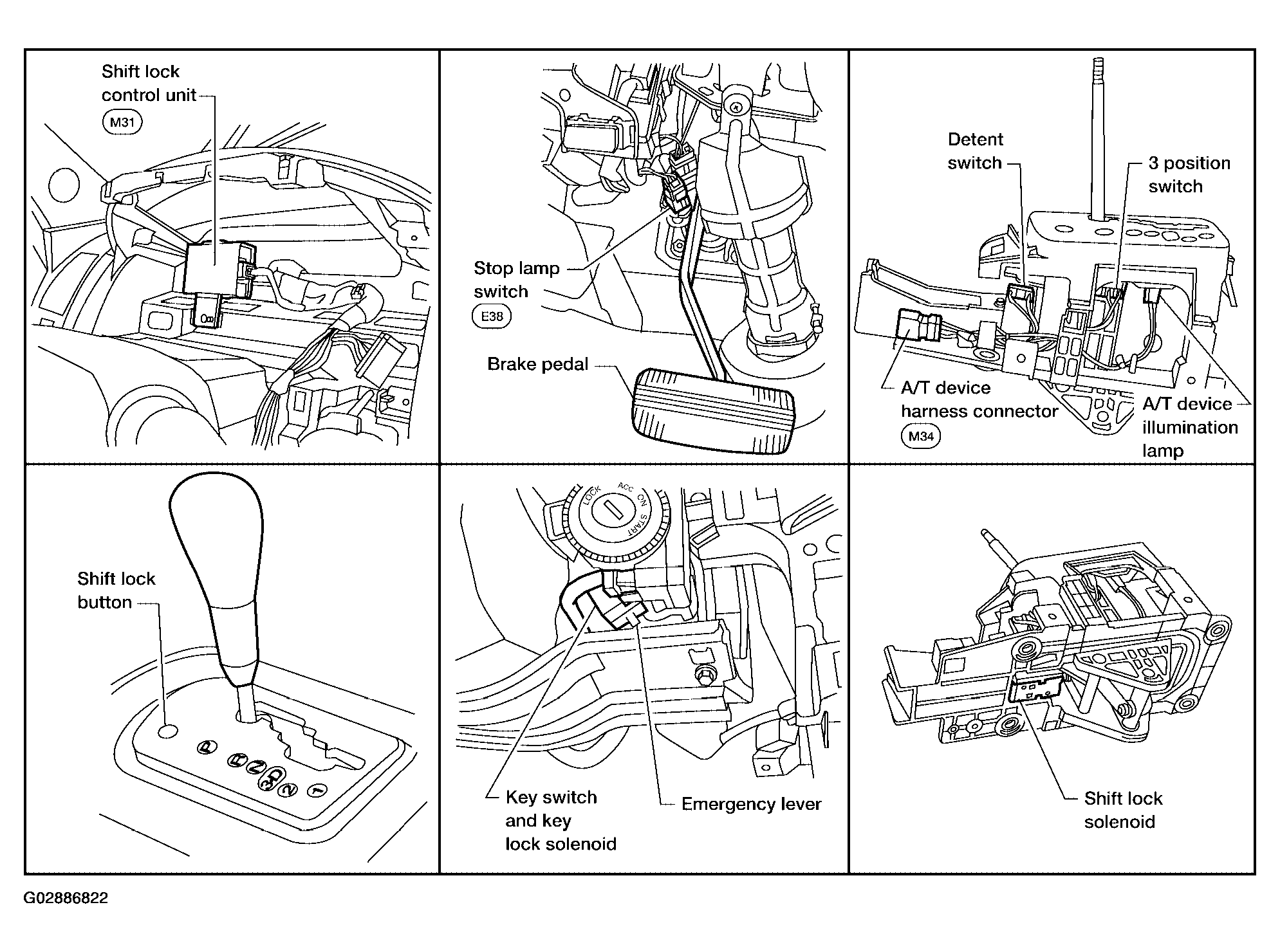

Fig 1: Shift Lock System Electrical Components Position
G02886822Courtesy of NISSAN MOTOR CO., U.S.A.
