Stop Lamp Switch

WARNING: This page is about a different variant/trim than selected.

Check continuity between terminals of the stop lamp switch connector.

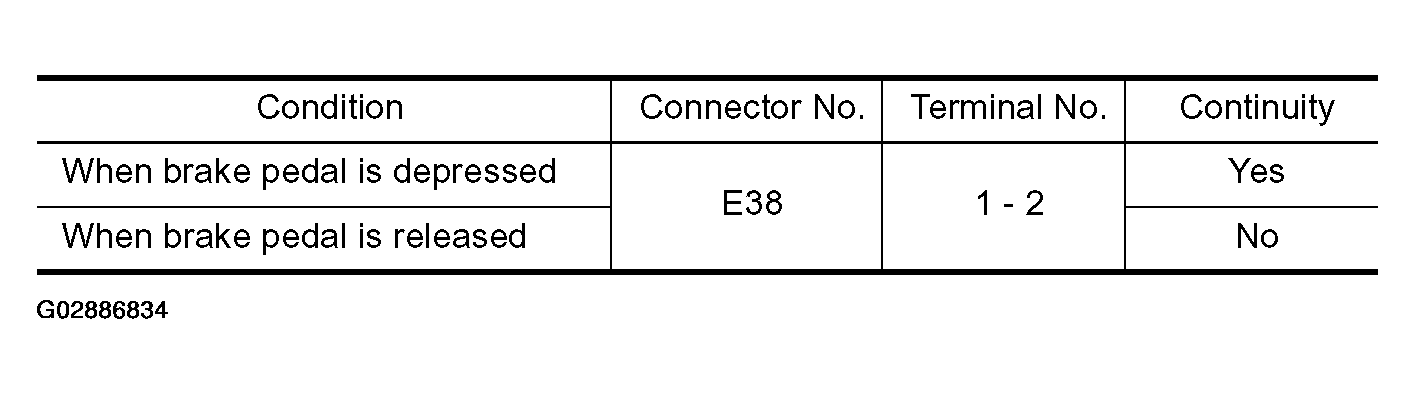

Fig 1: Key Switch Condition & Terminals Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to STOPLIGHT SWITCH & AUTOMATIC SPEED CONTROL DEVICE SWITCH .

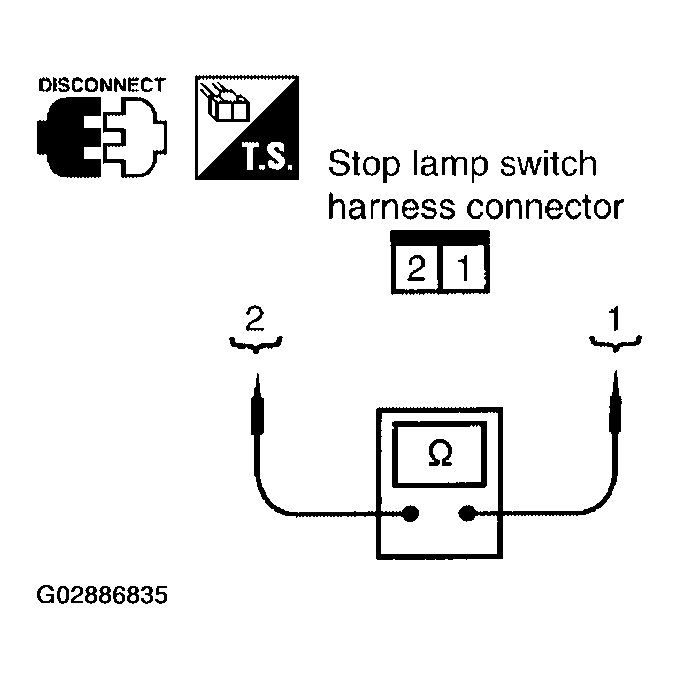

Fig 2: Key Switch Condition & Terminals Continuity Test
Courtesy of NISSAN MOTOR CO., U.S.A.
