System - Engine Mechanical & Other

WARNING: This page is about a different variant/trim than selected.

1 - 6: The numbers refer to the order of inspection.

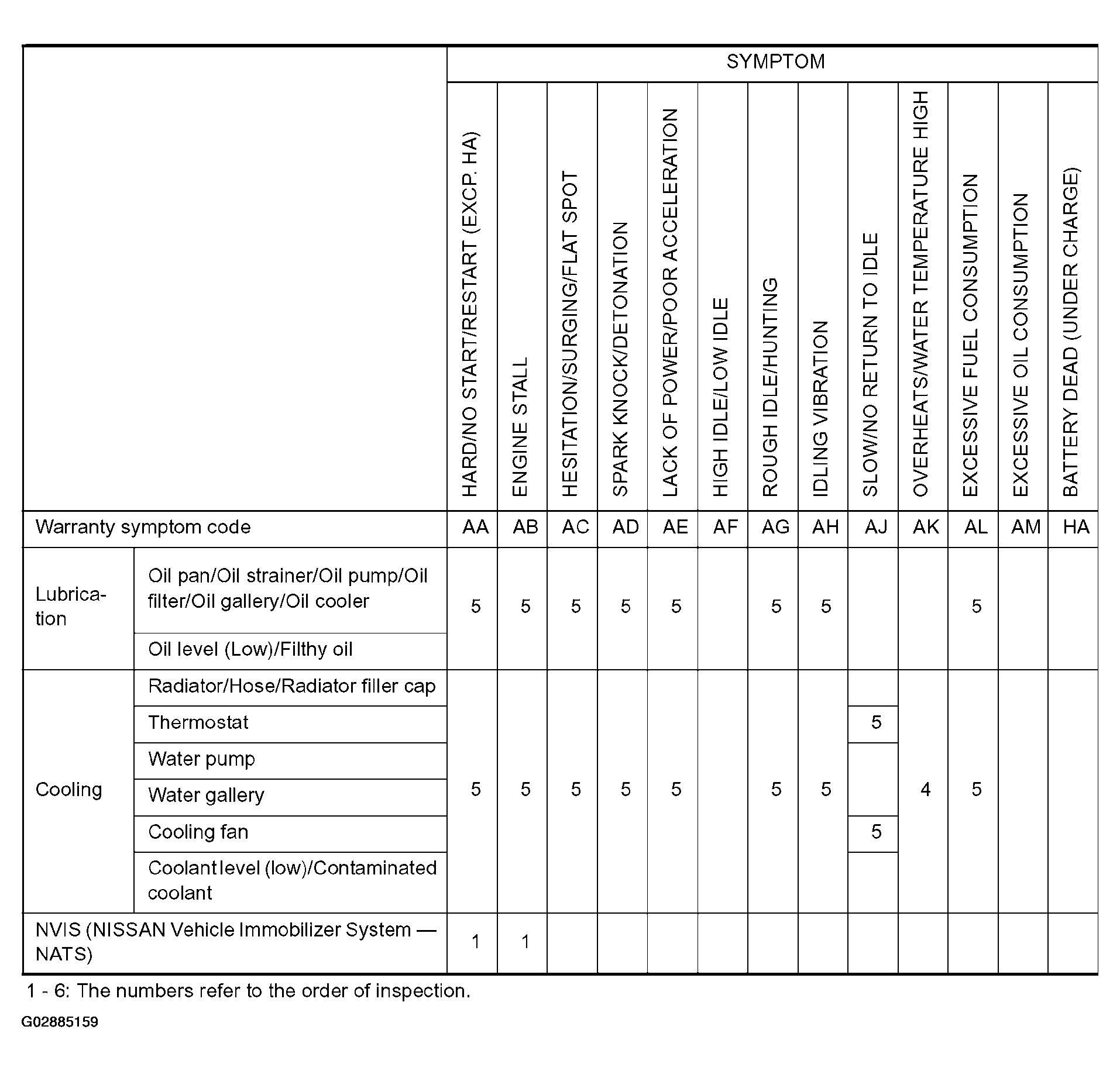

Fig 1: Symptom Matrix Chart (Engine Mechanical & Other - 1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

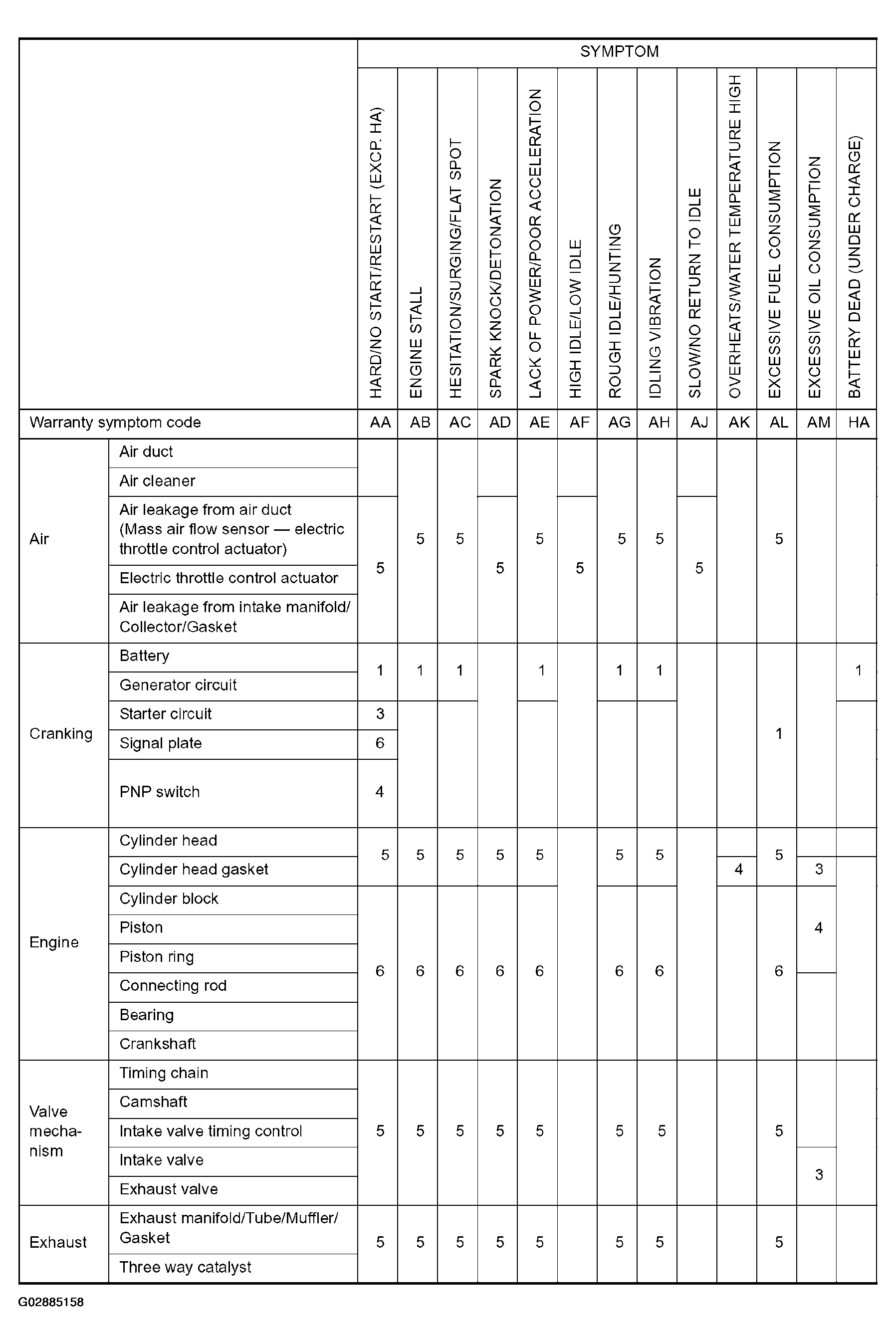

Fig 2: Symptom Matrix Chart (Engine Mechanical & Other - 2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

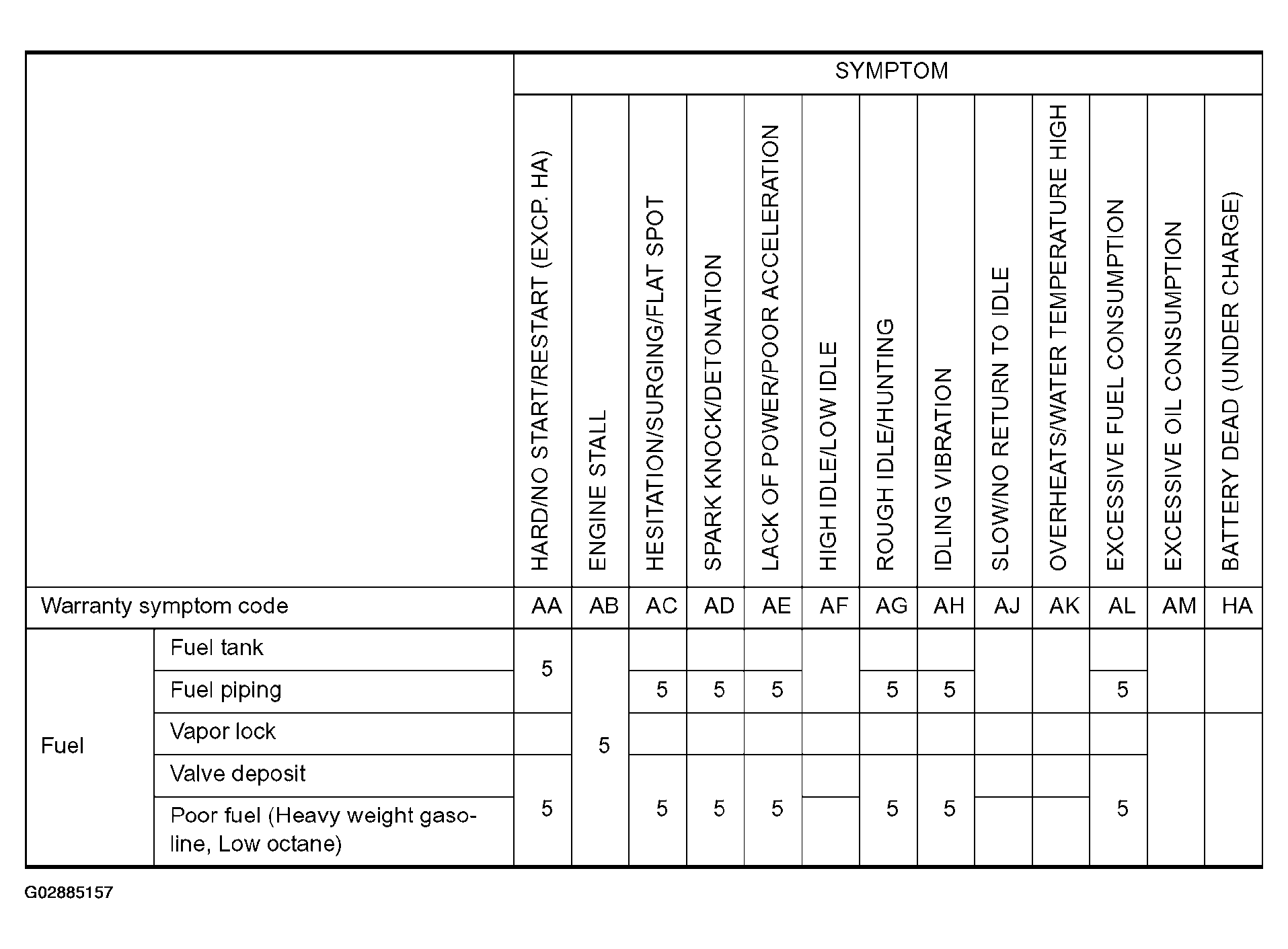

Fig 3: Symptom Matrix Chart (Engine Mechanical & Other - 3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
