Eng Speed, Mas A/F Se-B1, THRTL Sen 1, Ho2S2 (B1), Ho2S1 (B1), INJ Pulse-B1

WARNING: This page is about a different variant/trim than selected.

Below is the data for "ENG SPEED", "MAS A/F SE-B1", "THRTL SEN 1", "HO2S2 (B1)", "HO2S1 (B1)" and "INJ PULSE-B1" when revving engine quickly up to 4, 800 RPM under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.

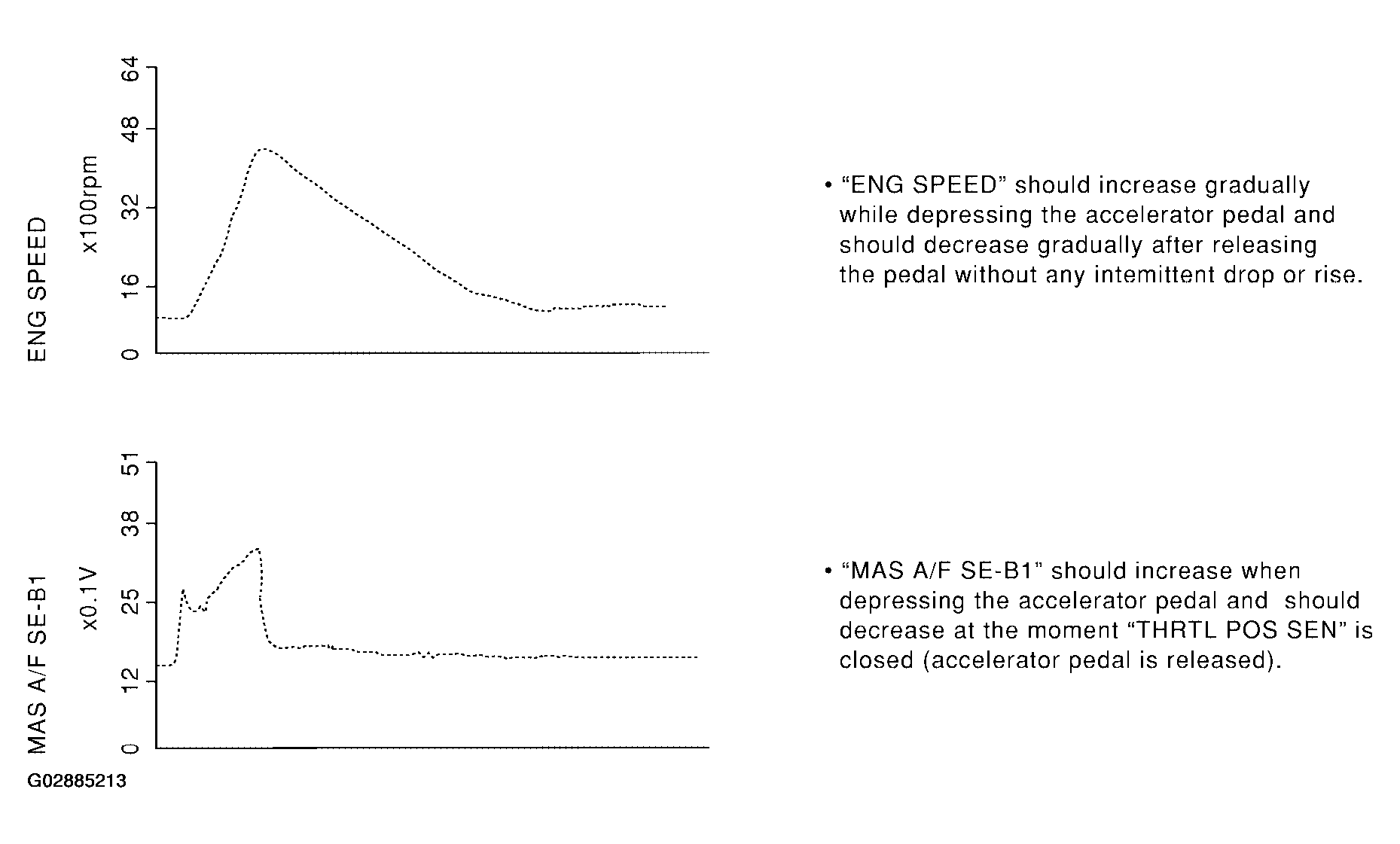

Fig 1: Displaying "ENG SPEED" And "MAS A/F SE-B1" Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

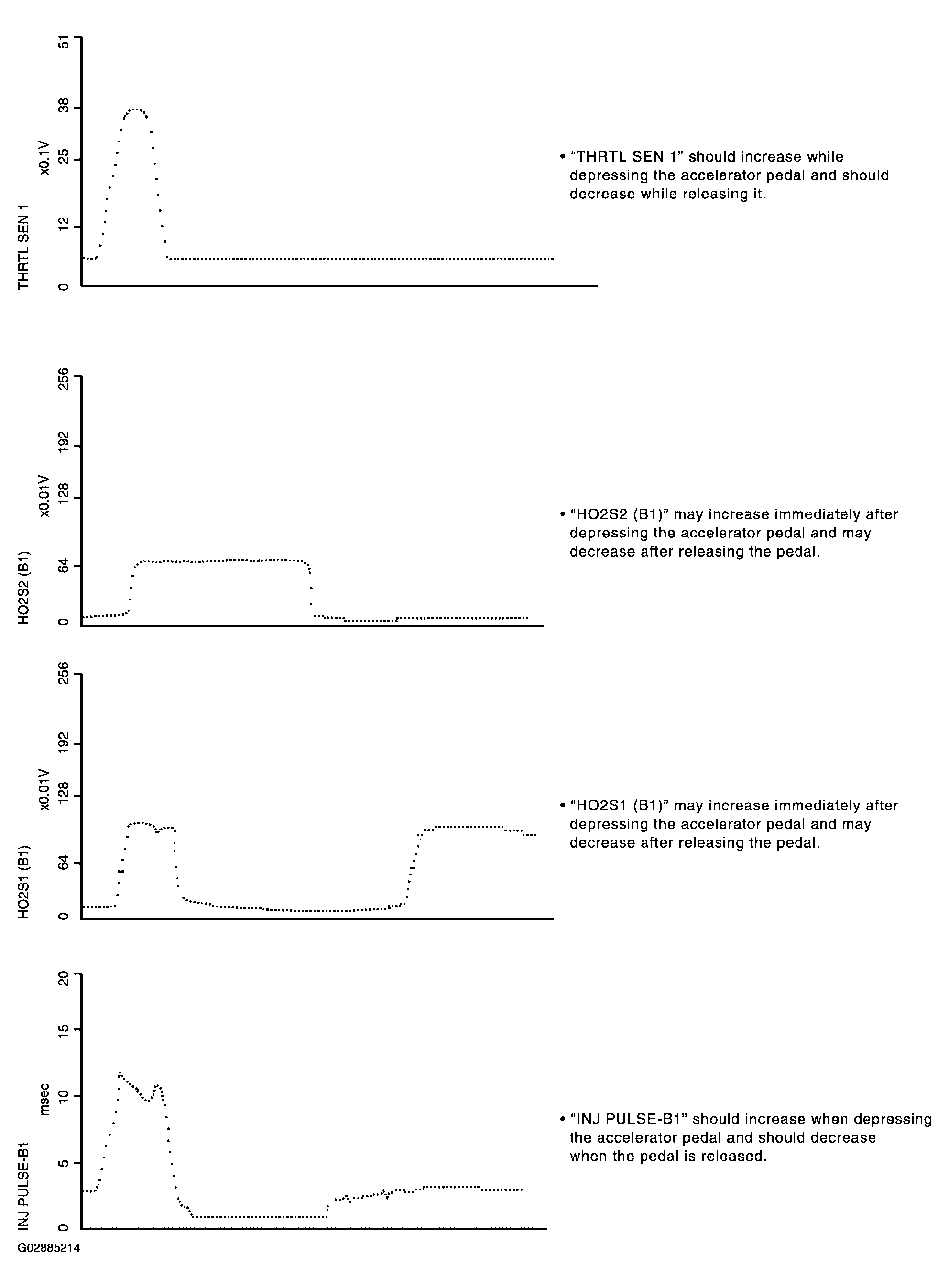

Fig 2: Displaying "THRTL SEN 1", "HO2S2 (B1)", "HO2S1 (B1)" And "INJ PULSE-B1" Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
