Engine Control Component Parts Location

WARNING: This page is about a different variant/trim than selected.

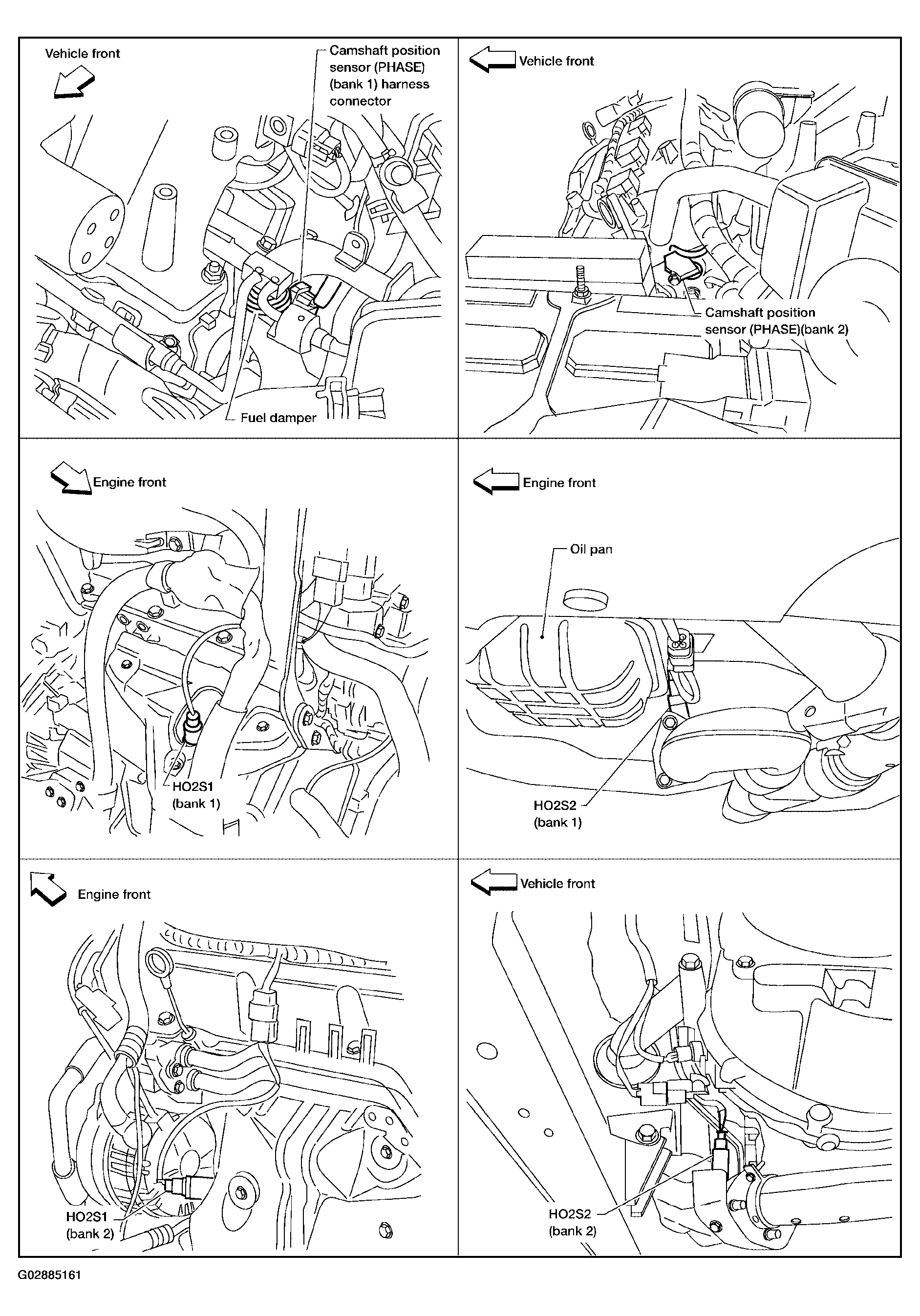

Fig 1: Locating Engine Control Component Parts (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

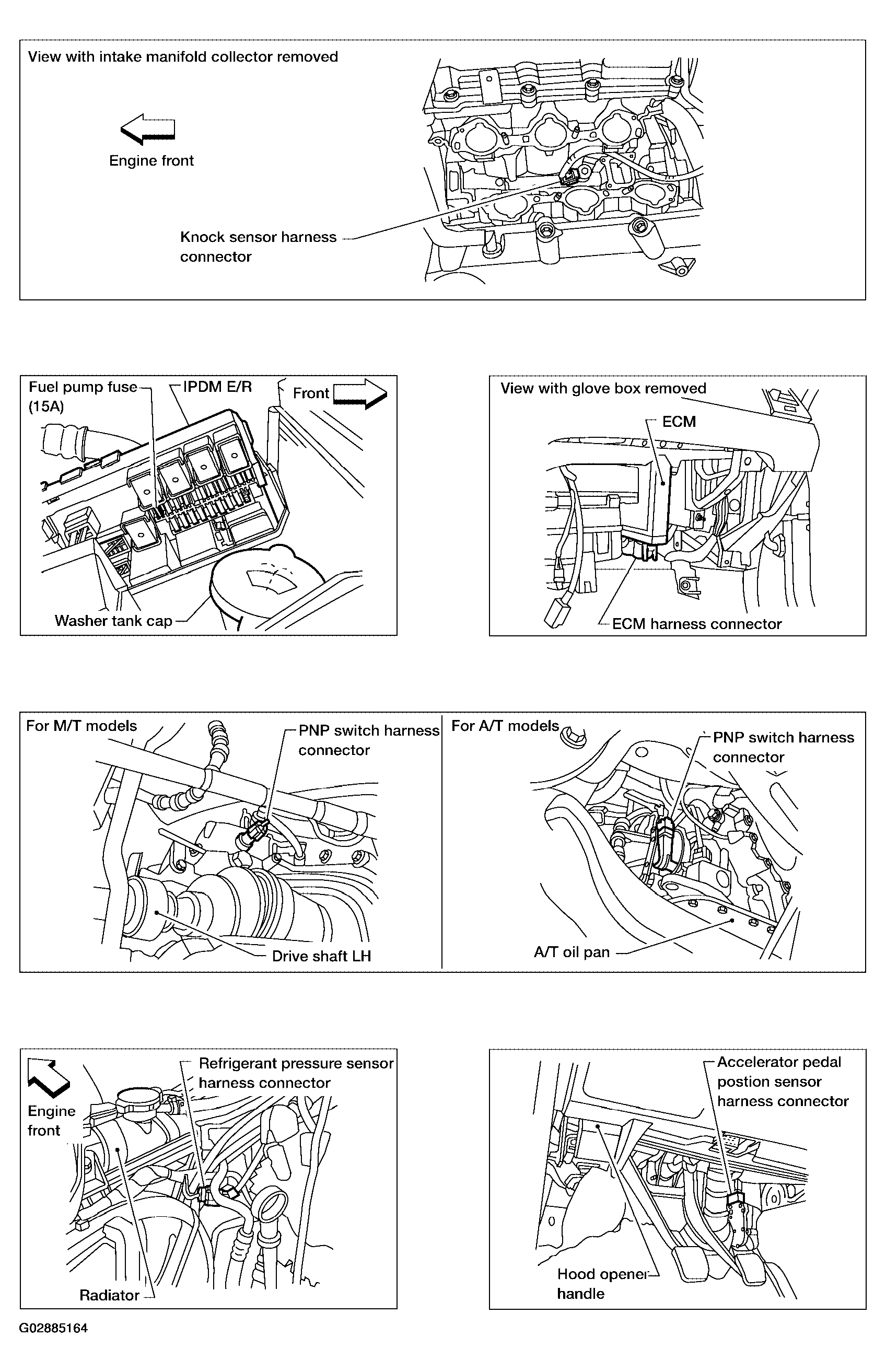

Fig 2: Locating Engine Control Component Parts (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

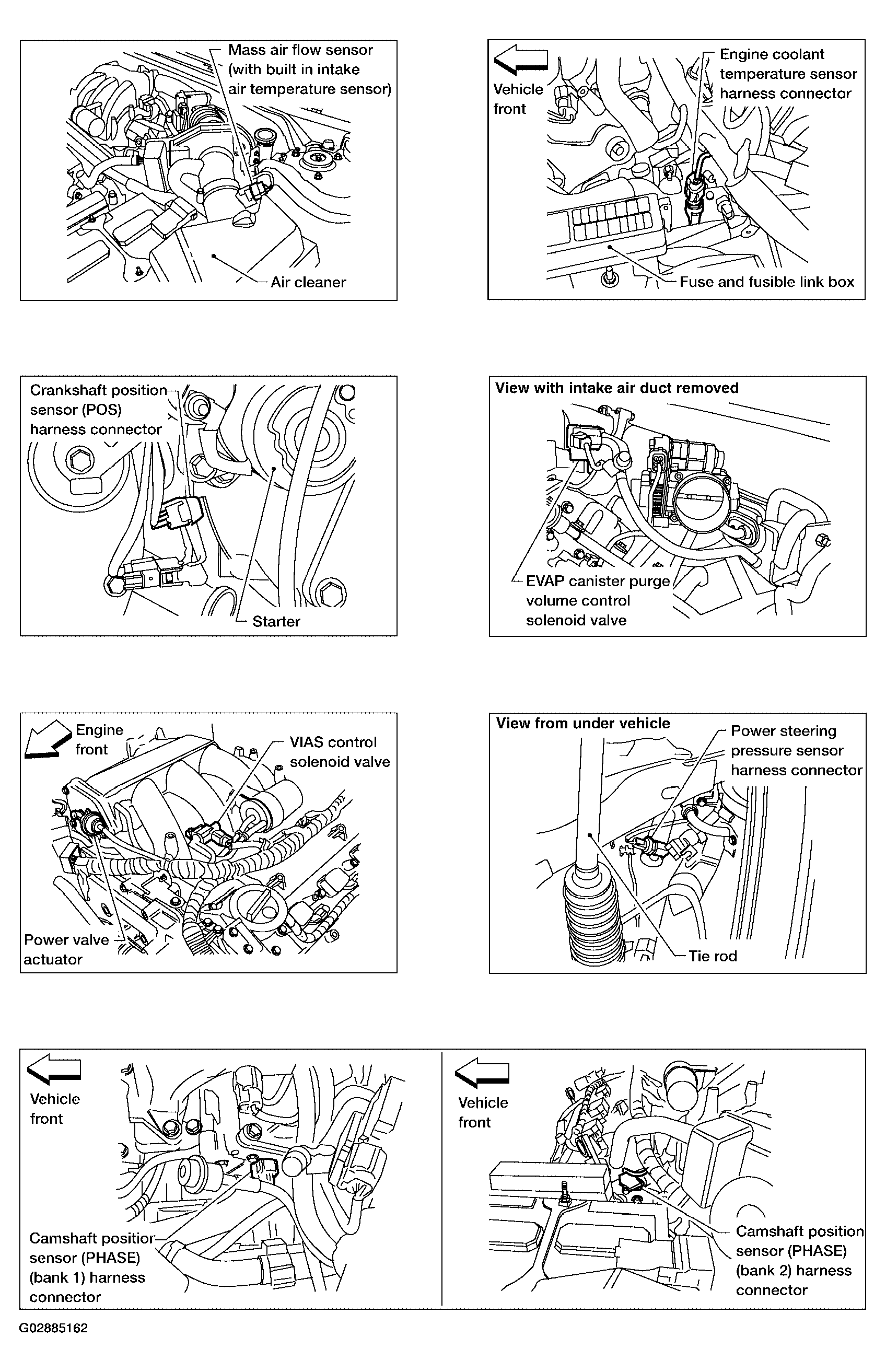

Fig 3: Identifying Engine Control Component Parts Location (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

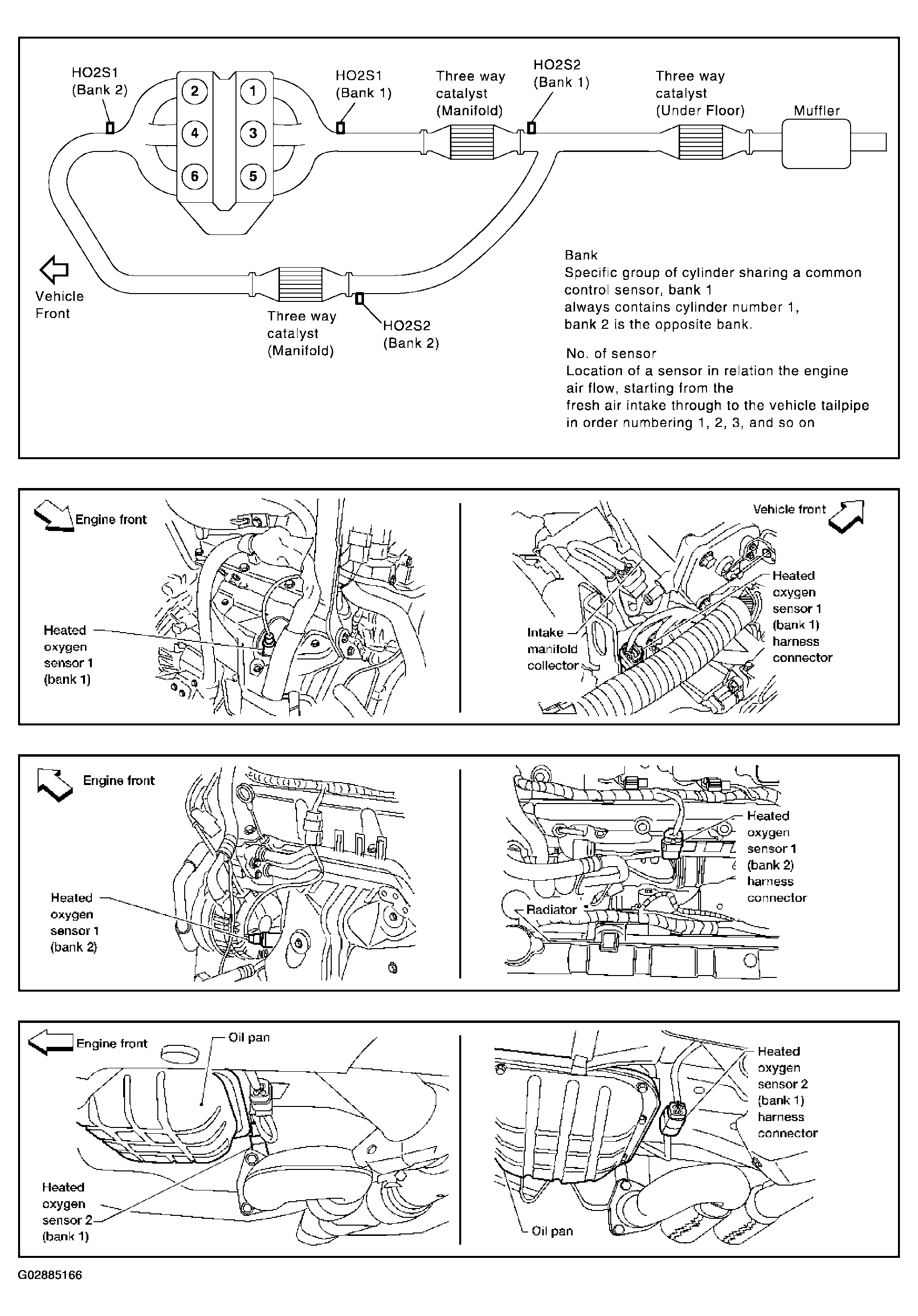

Fig 4: Locating Engine Control Component Parts (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

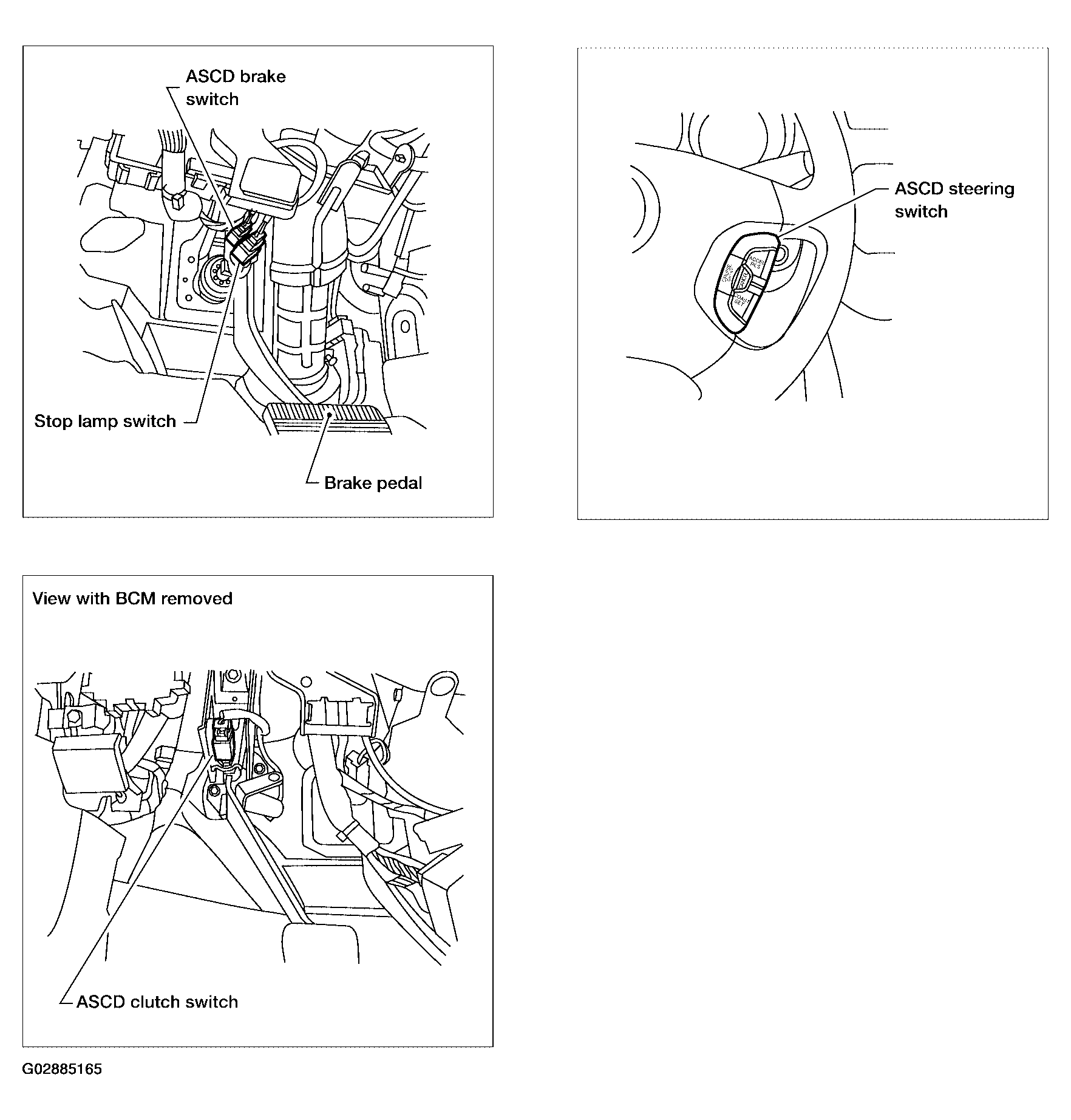

Fig 5: Locating Engine Control Component Parts (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

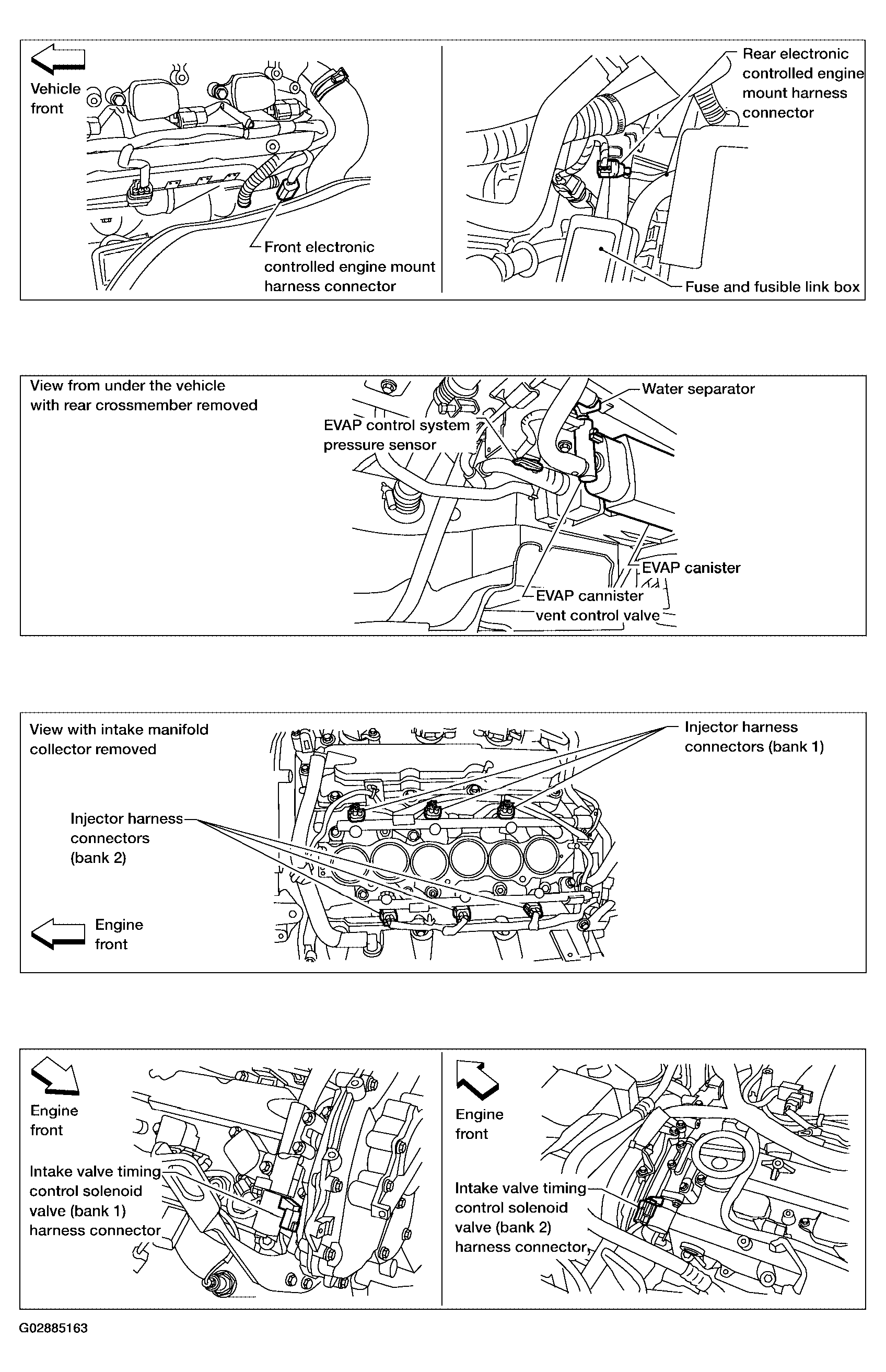

Fig 6: Locating Engine Control Component Parts (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

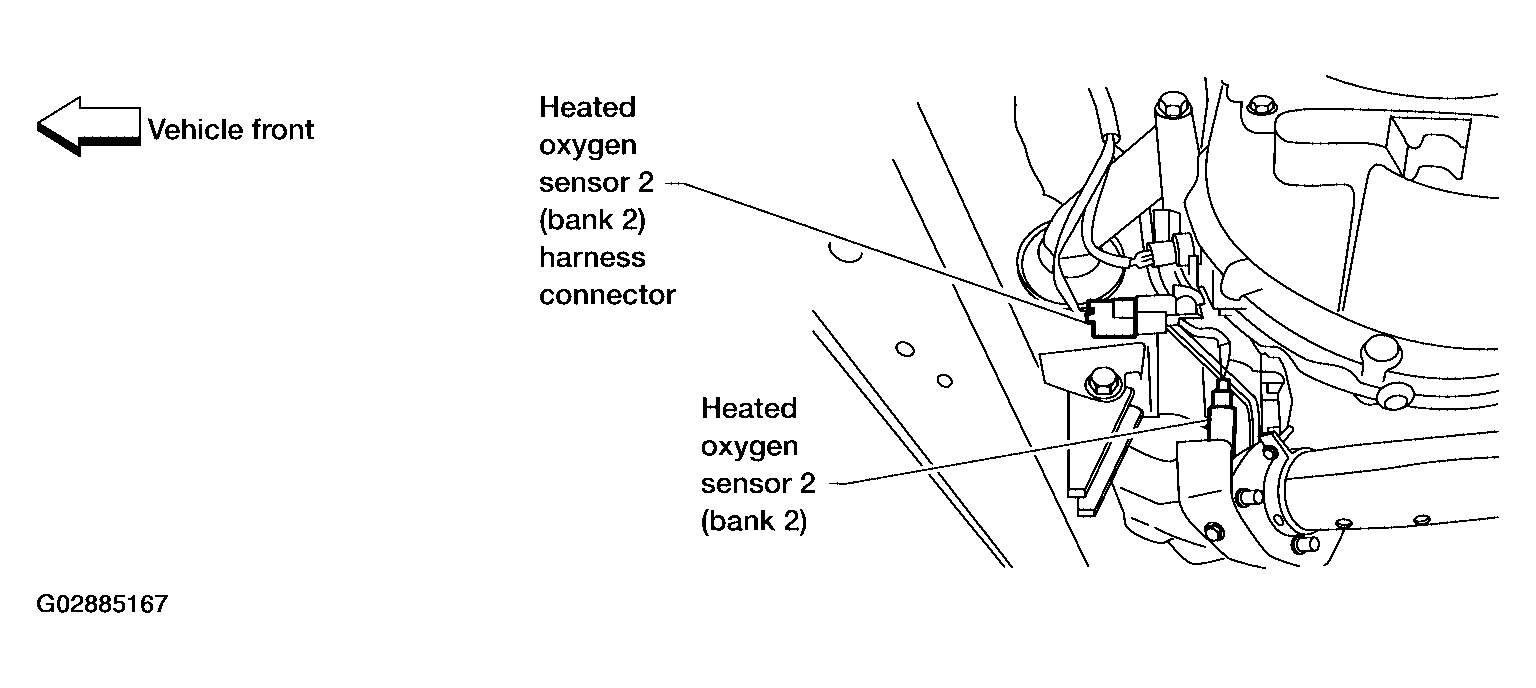

Fig 7: Locating Engine Control Component Parts (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

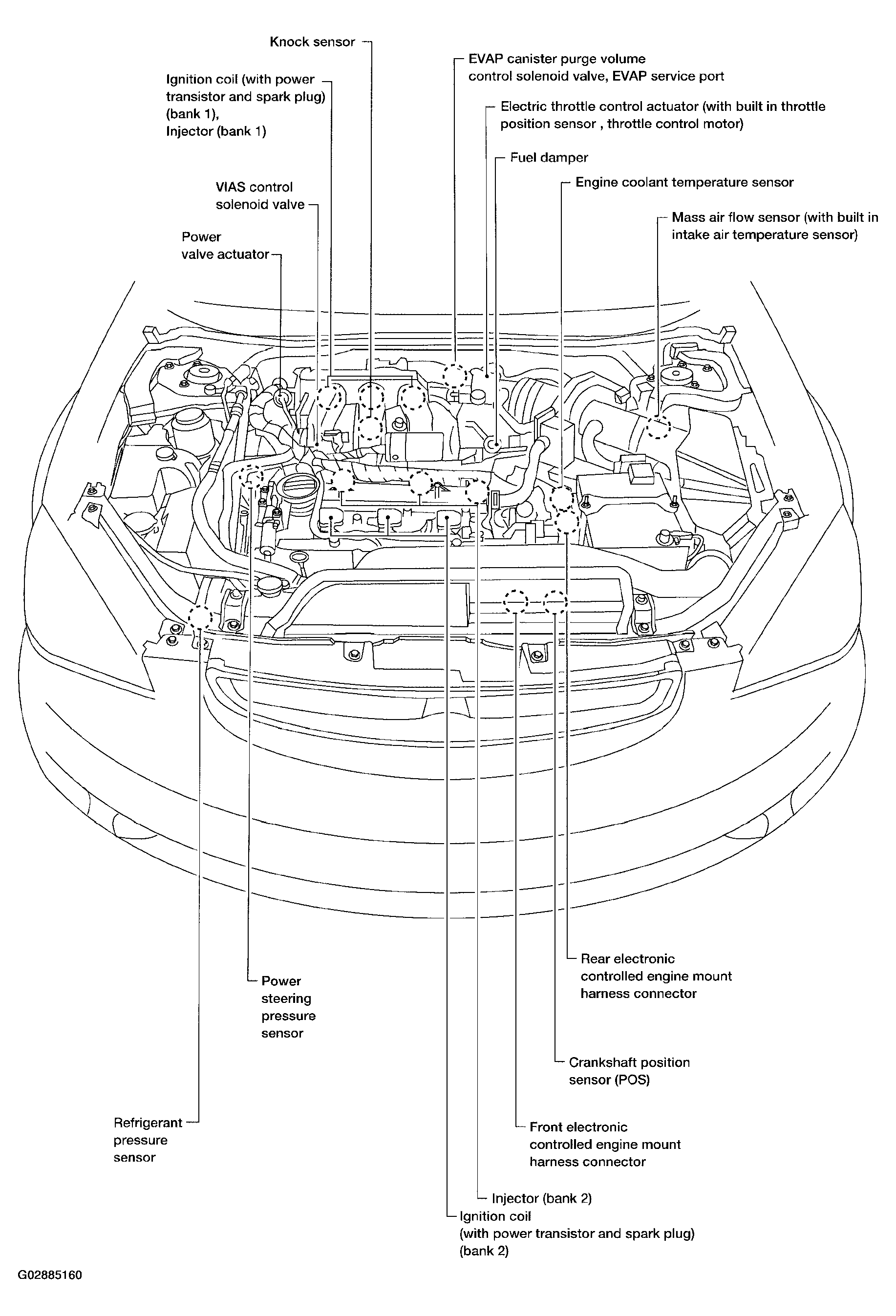

Fig 8: Locating Engine Control Component Parts (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
