ECM Terminals and Reference Value: Preparation

WARNING: This page is about a different variant/trim than selected.
  1. ECM is located behind the glove box. For this inspection, remove glove box.

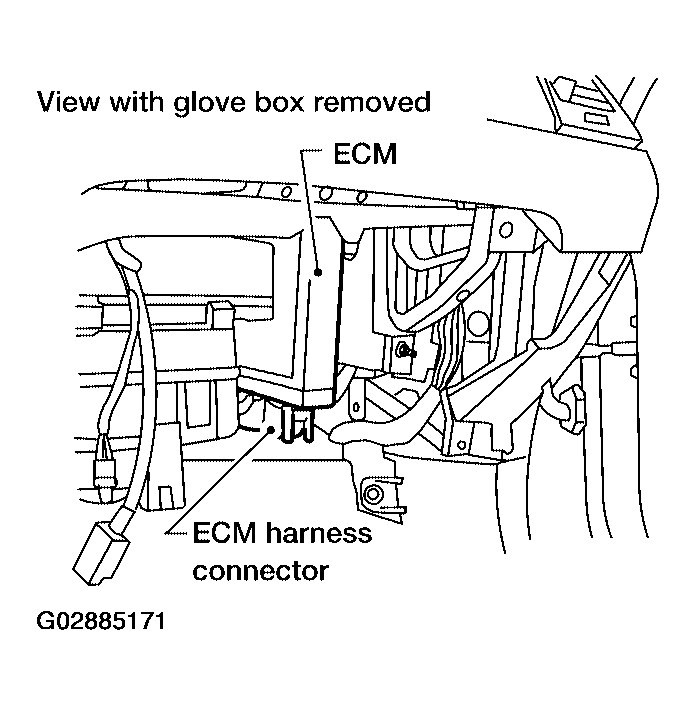

    2. Fig 1: Locating ECM And Harness Connector
    G02885171Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove ECM harness protector.
  3. Perform all voltage measurements with the connector connected. Extend tester probe as shown to perform tests easily.
    • Open harness securing clip to make testing easier.
    • Use extreme care not to touch 2 pins at one time.
    • Data is for comparison and may not be exact.

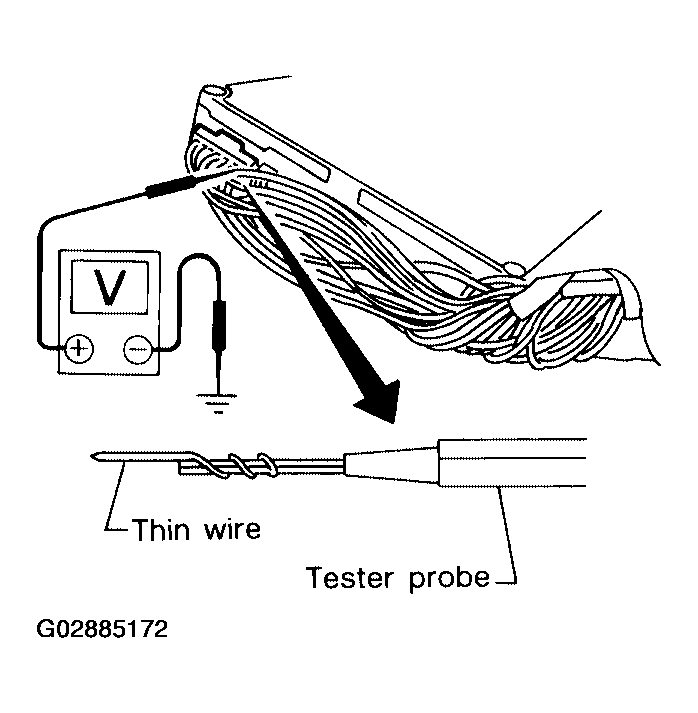

      Fig 2: Extending Tester Probe
      G02885172Courtesy of NISSAN MOTOR CO., U.S.A.
