ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

*:  Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

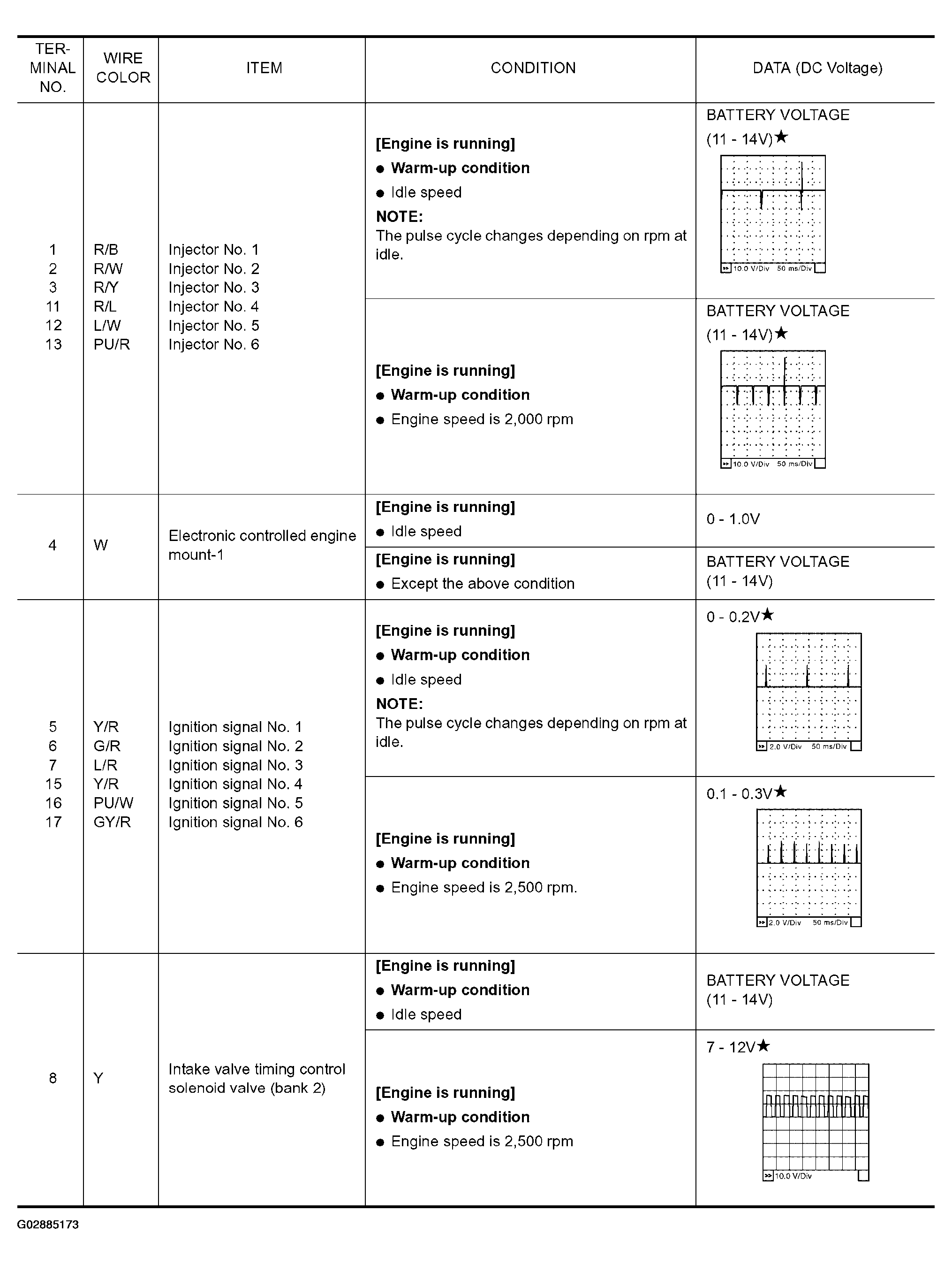

Fig 1: ECM Data Reference Value Chart (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

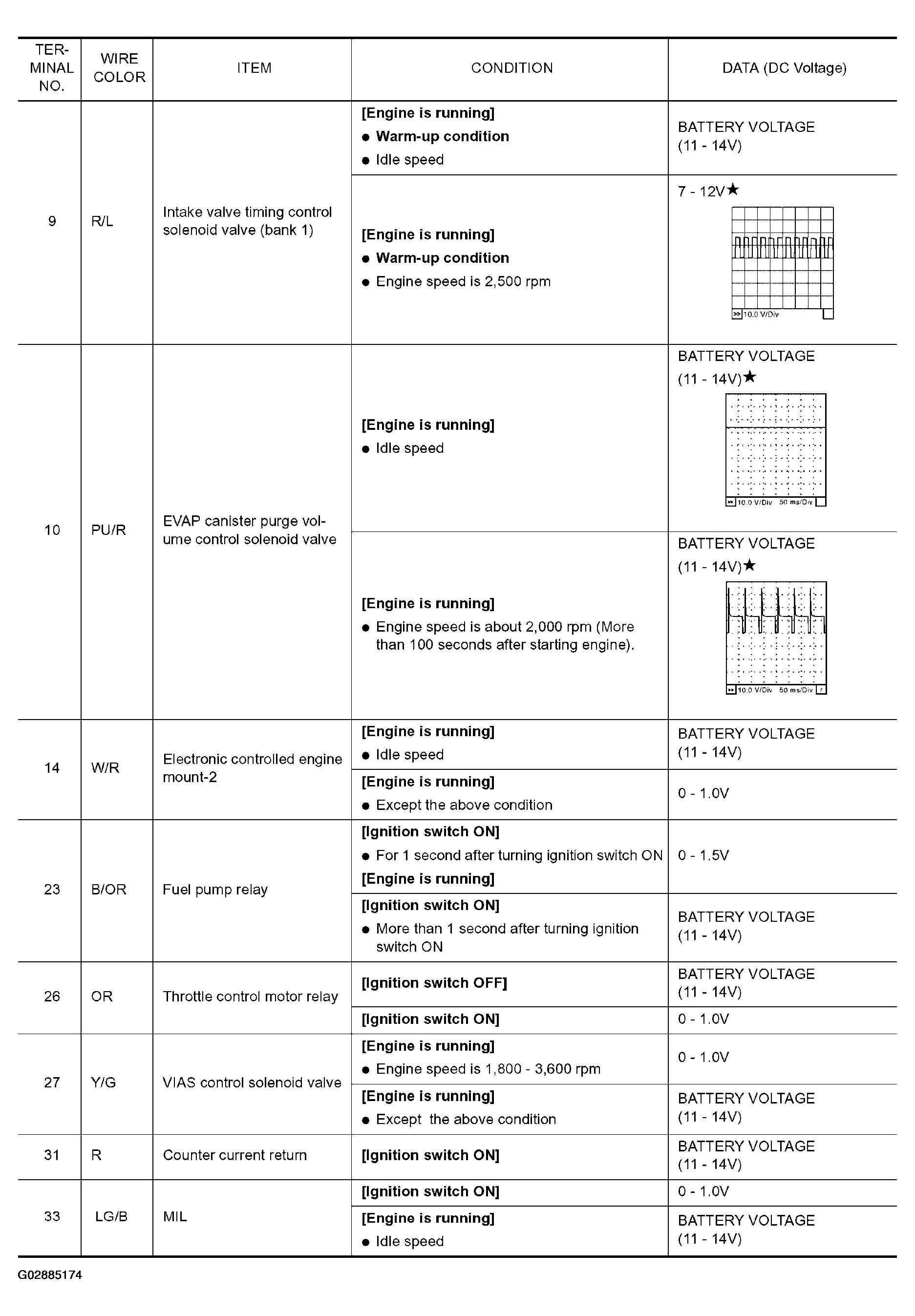

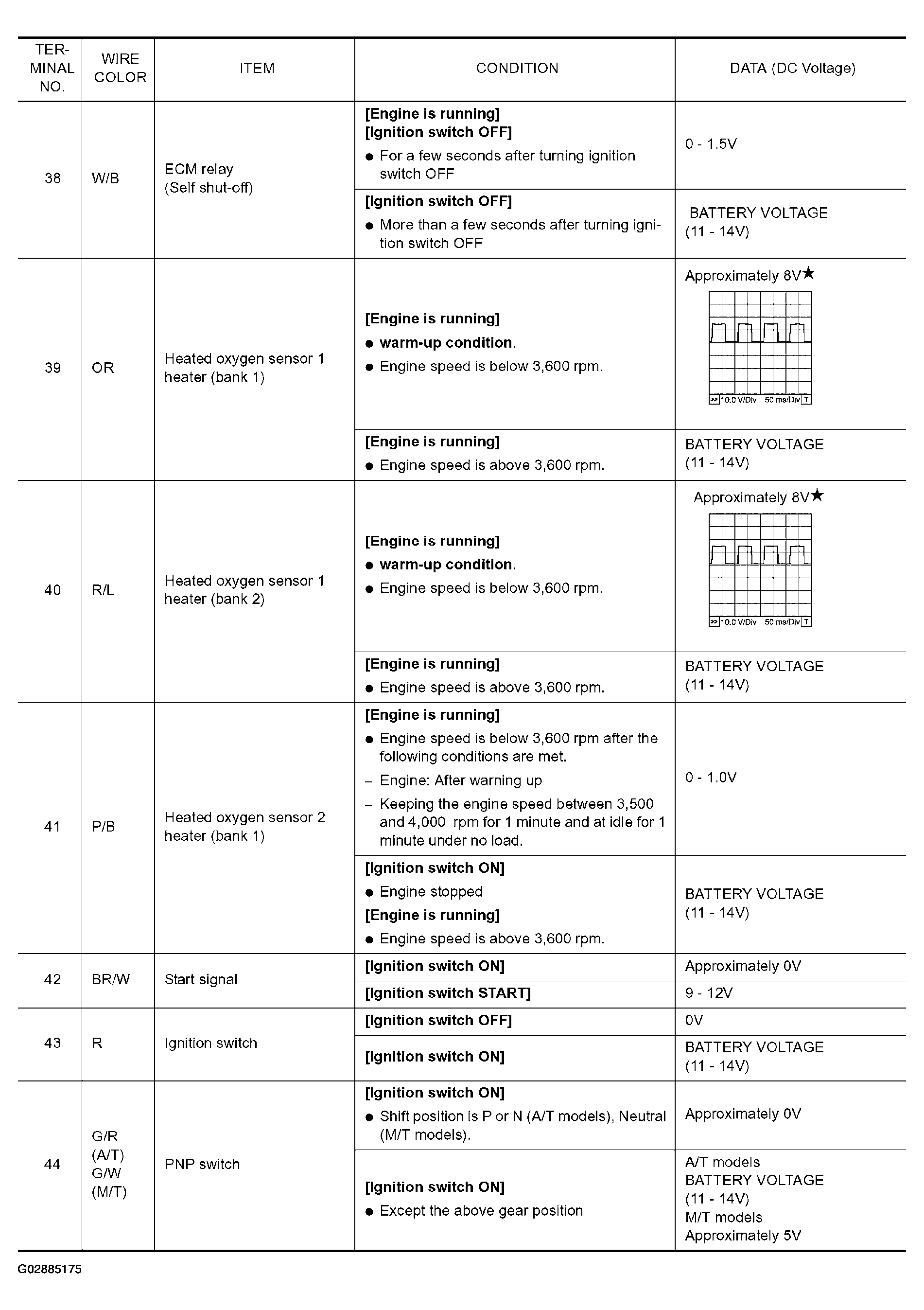

Fig 2: ECM Data Reference Value Chart (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

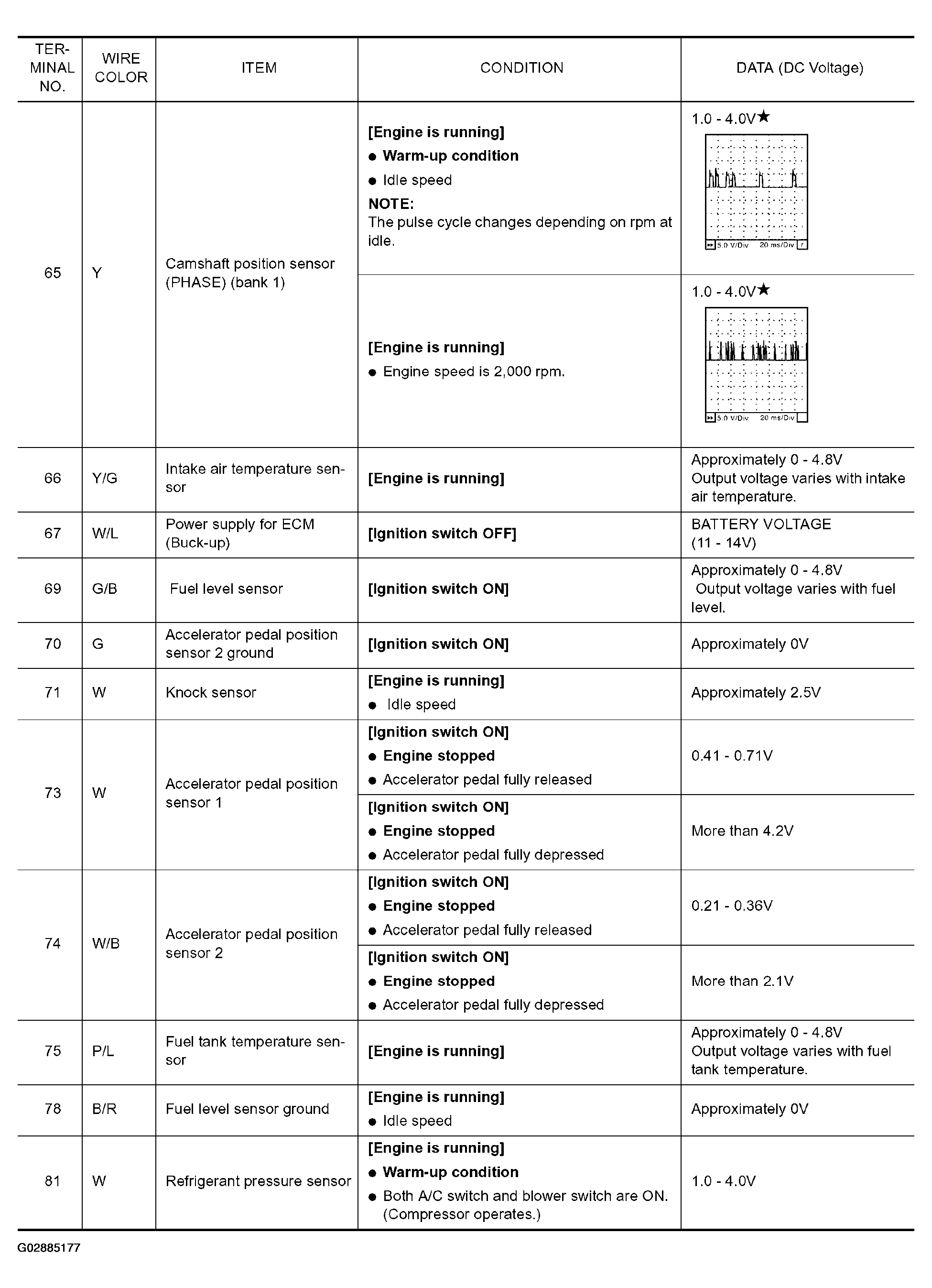

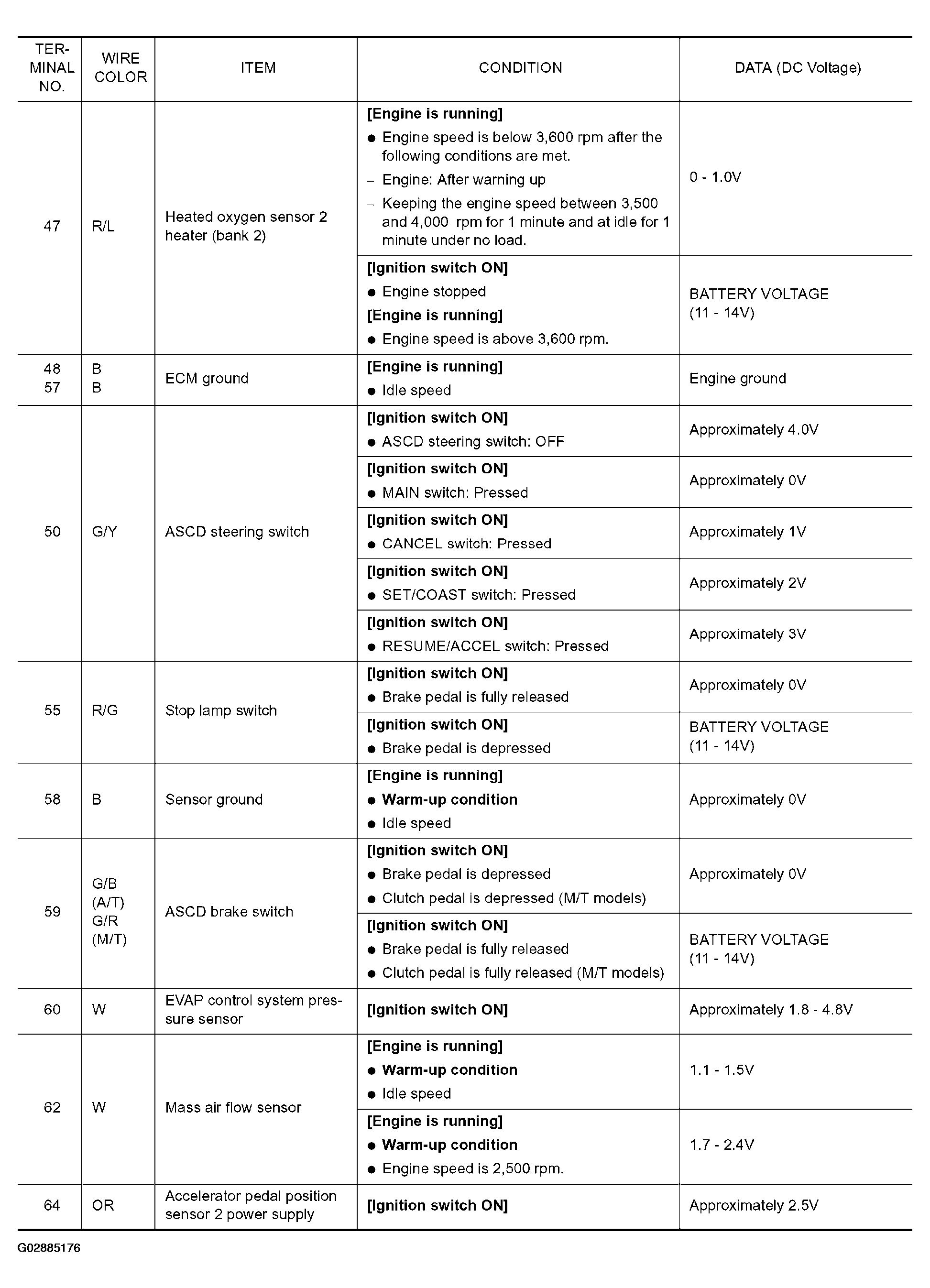

Fig 3: ECM Data Reference Value Chart (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

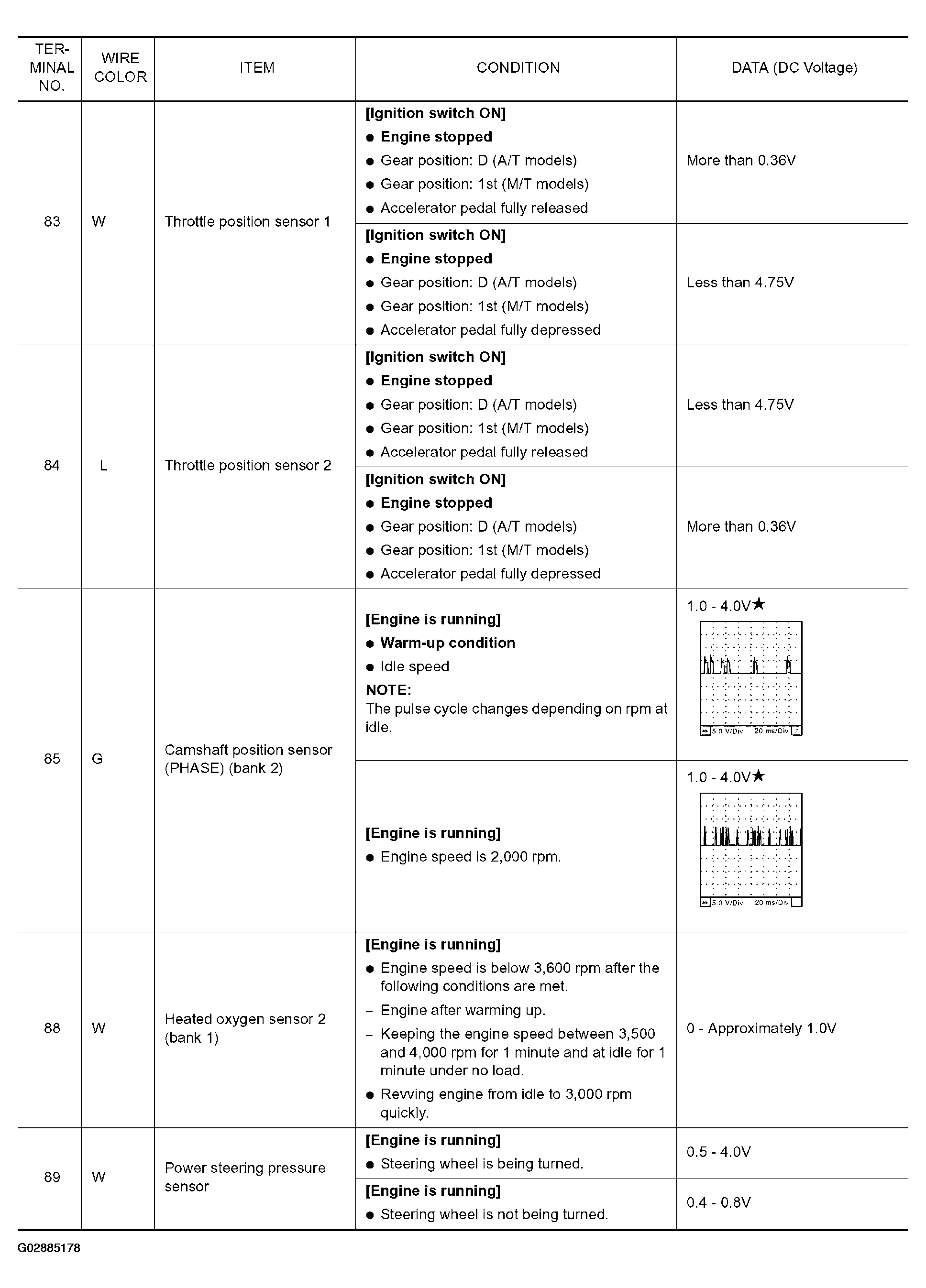

Fig 4: ECM Data Reference Value Chart (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: ECM Data Reference Value Chart (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

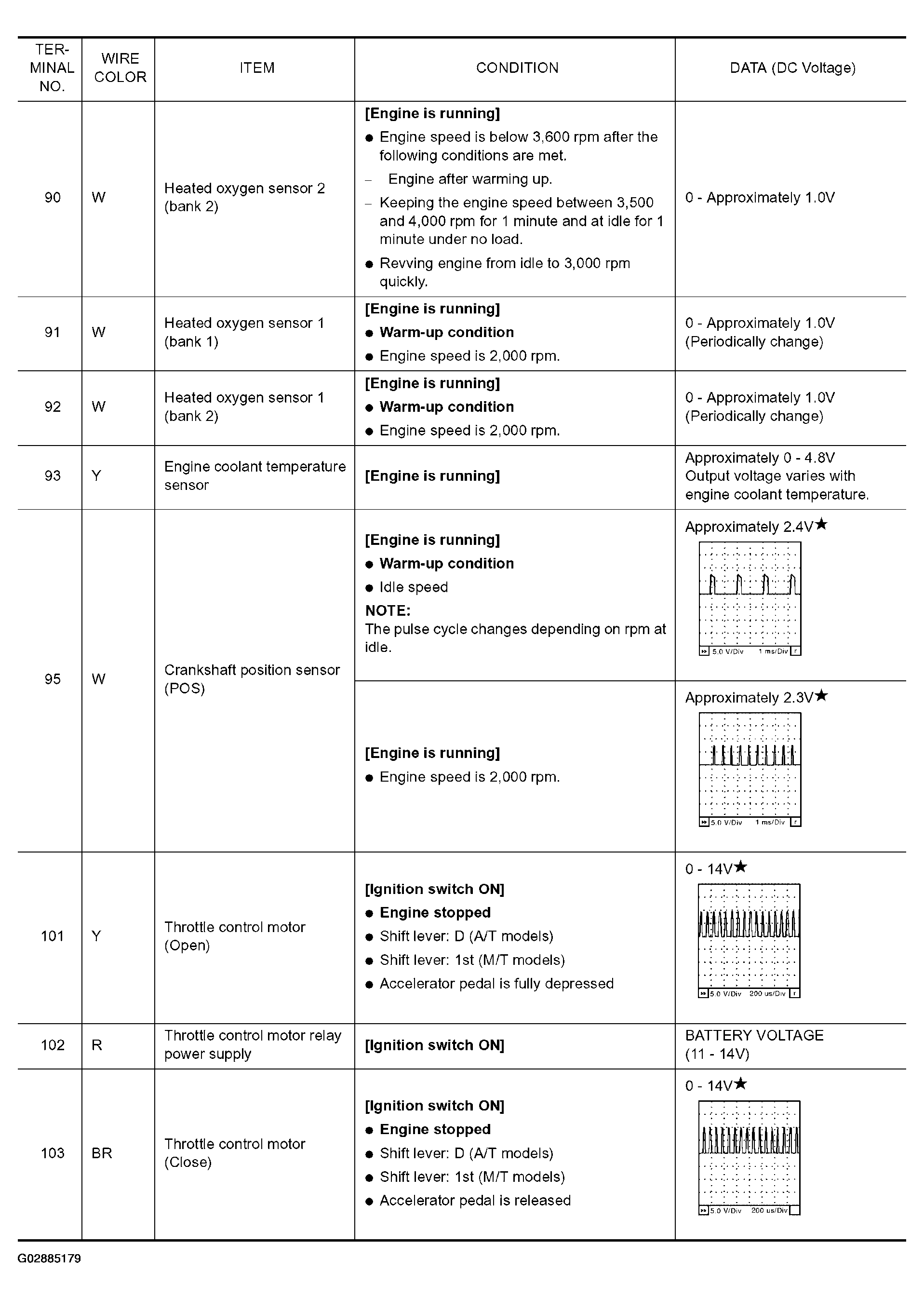

Fig 6: ECM Data Reference Value Chart (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: ECM Data Reference Value Chart (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

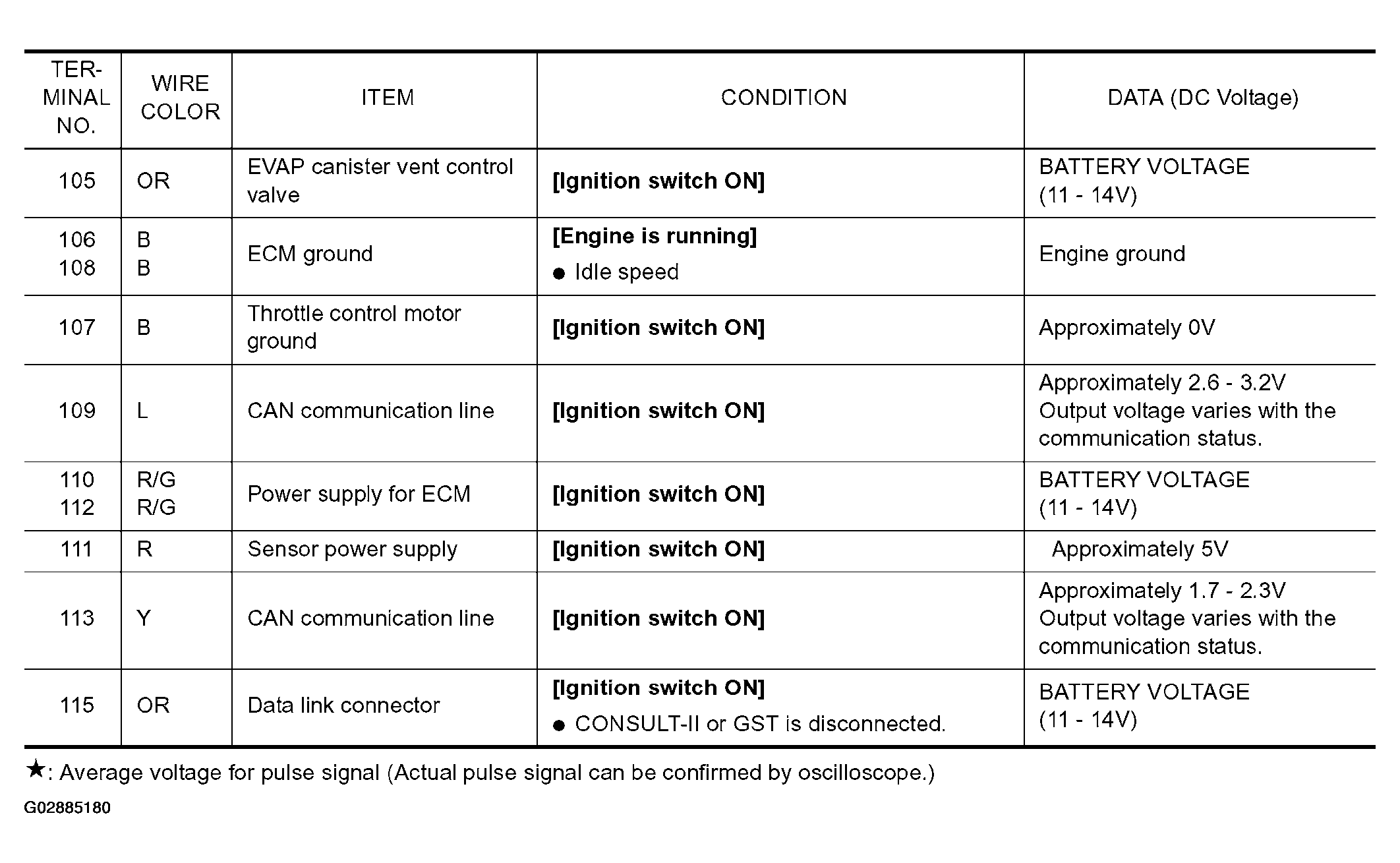

Fig 8: ECM Data Reference Value Chart (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
