Section 6 (Engine Control System - 3.5L)
>>
Trouble Diagnosis
>>
ECM Harness Connector Terminal Layout
ECM Harness Connector Terminal Layout
WARNING:
This page is about a different variant/trim than selected.

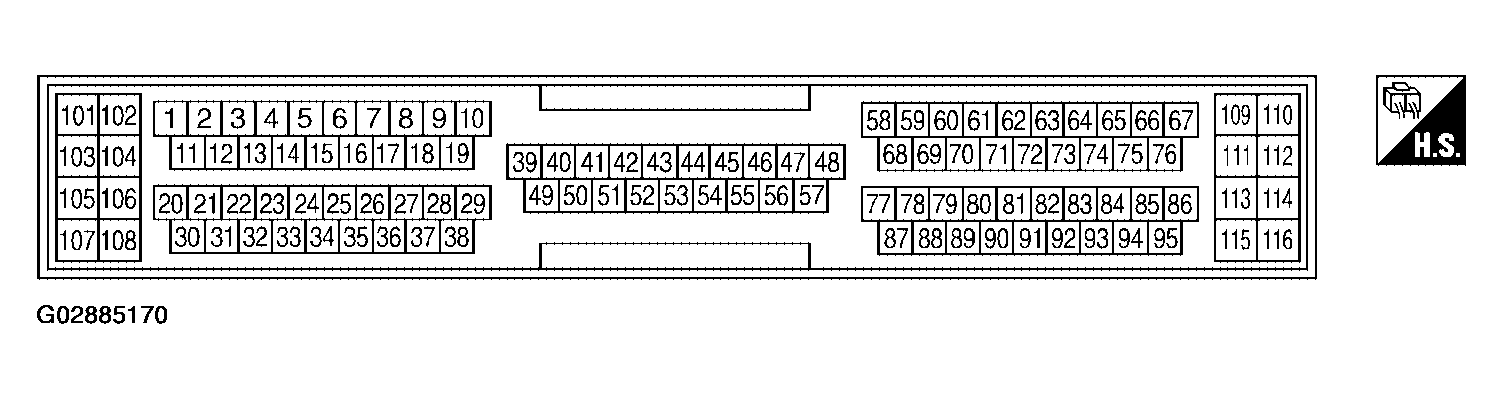

Fig 1: Identifying ECM Harness Connector Terminal Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
