DTC Inspection Priority Chart
WARNING: This page is about a different variant/trim than selected.

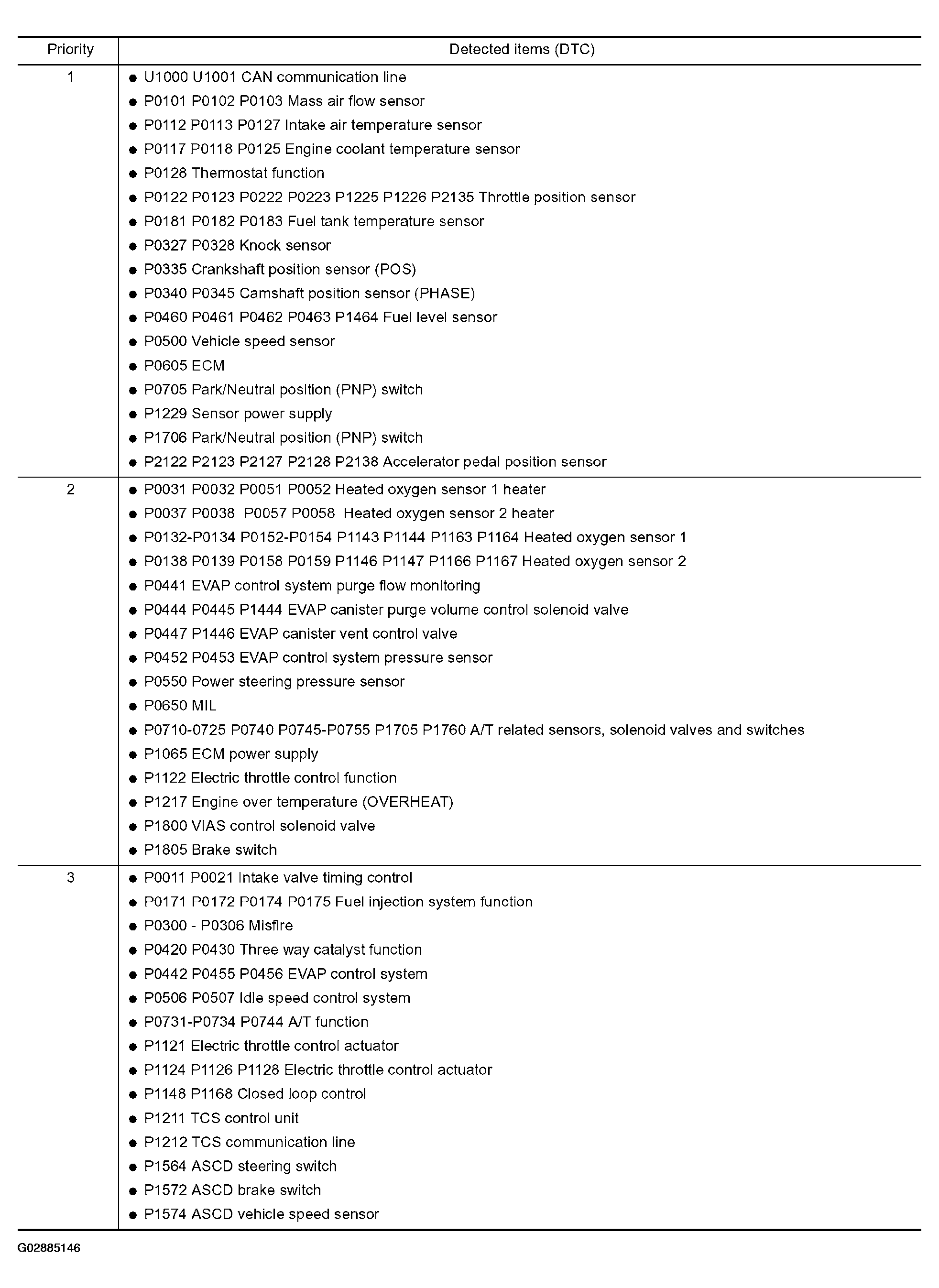

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
NOTE:
If DTC U1000 and/or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000 and U1001. Refer to
DTC U1000, U1001 CAN COMMUNICATION LINE .
