Freeze Frame Data and 1st Trip Freeze Frame Data

WARNING: This page is about a different variant/trim than selected.

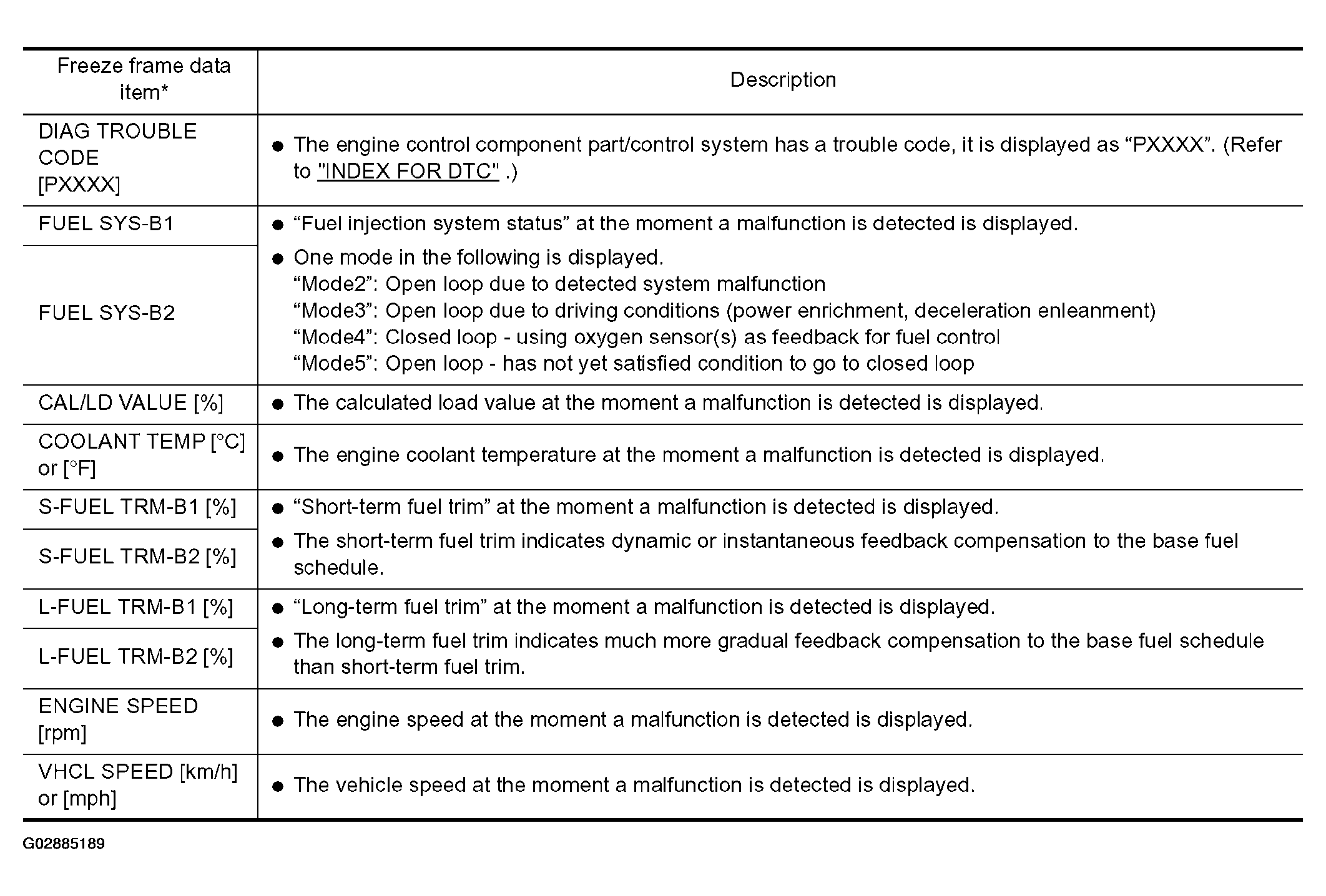

Fig 1: Freeze Frame Data And 1st Trip Freeze Frame Data Reference Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

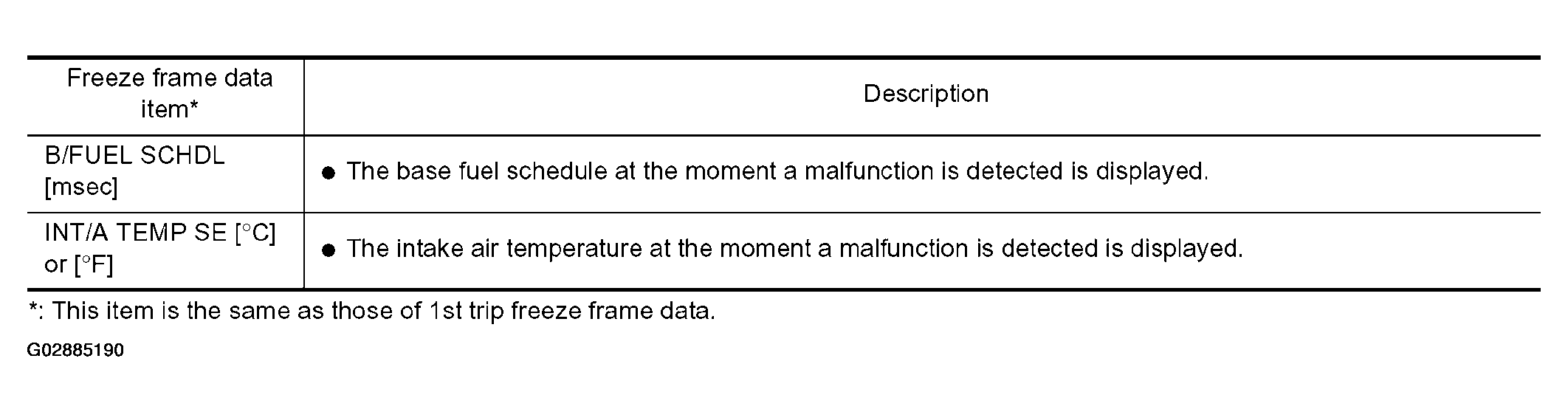

Fig 2: Freeze Frame Data And 1st Trip Freeze Frame Data Reference Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: This item is the same as those of 1st trip freeze frame data.
