Test Item

WARNING: This page is about a different variant/trim than selected.

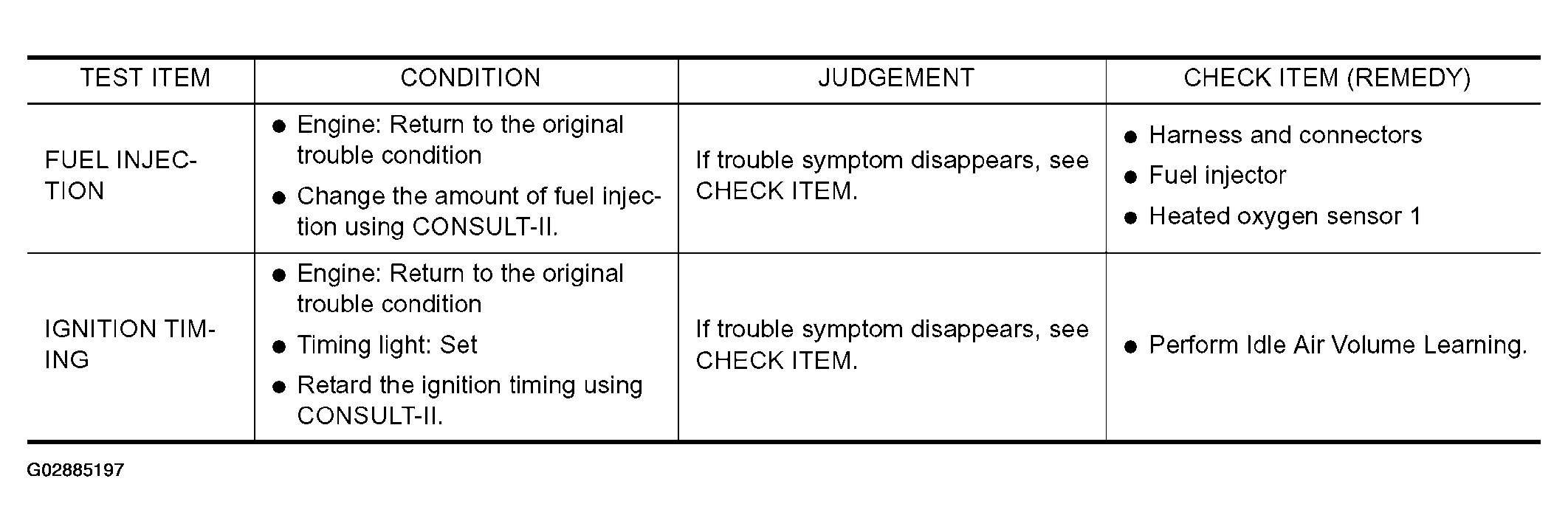

Fig 1: Active Test Mode Reference Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

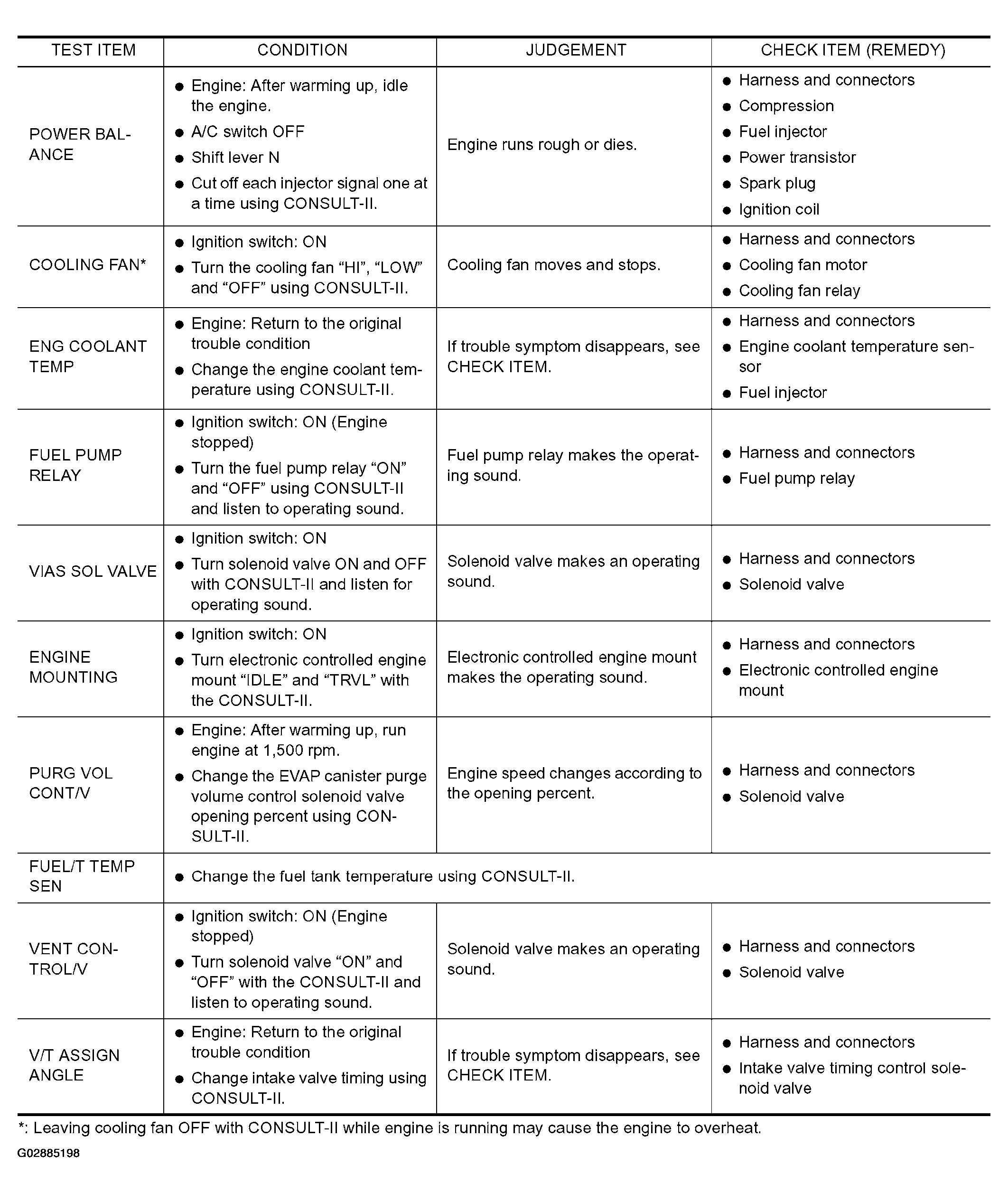

Fig 2: Active Test Mode Reference Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
