Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.

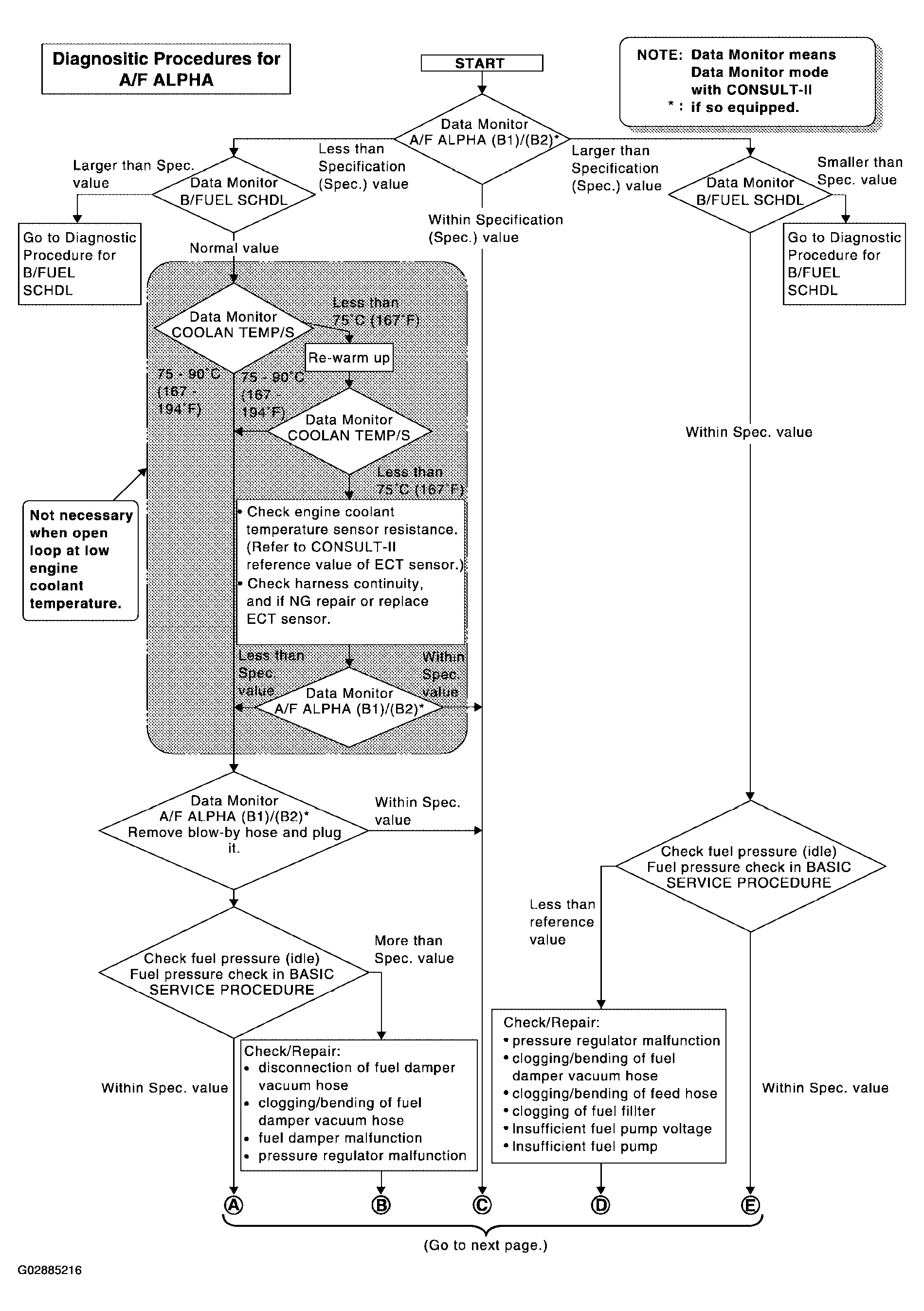

Fig 1: Diagnostic Procedures For A/F ALPHA Flow Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

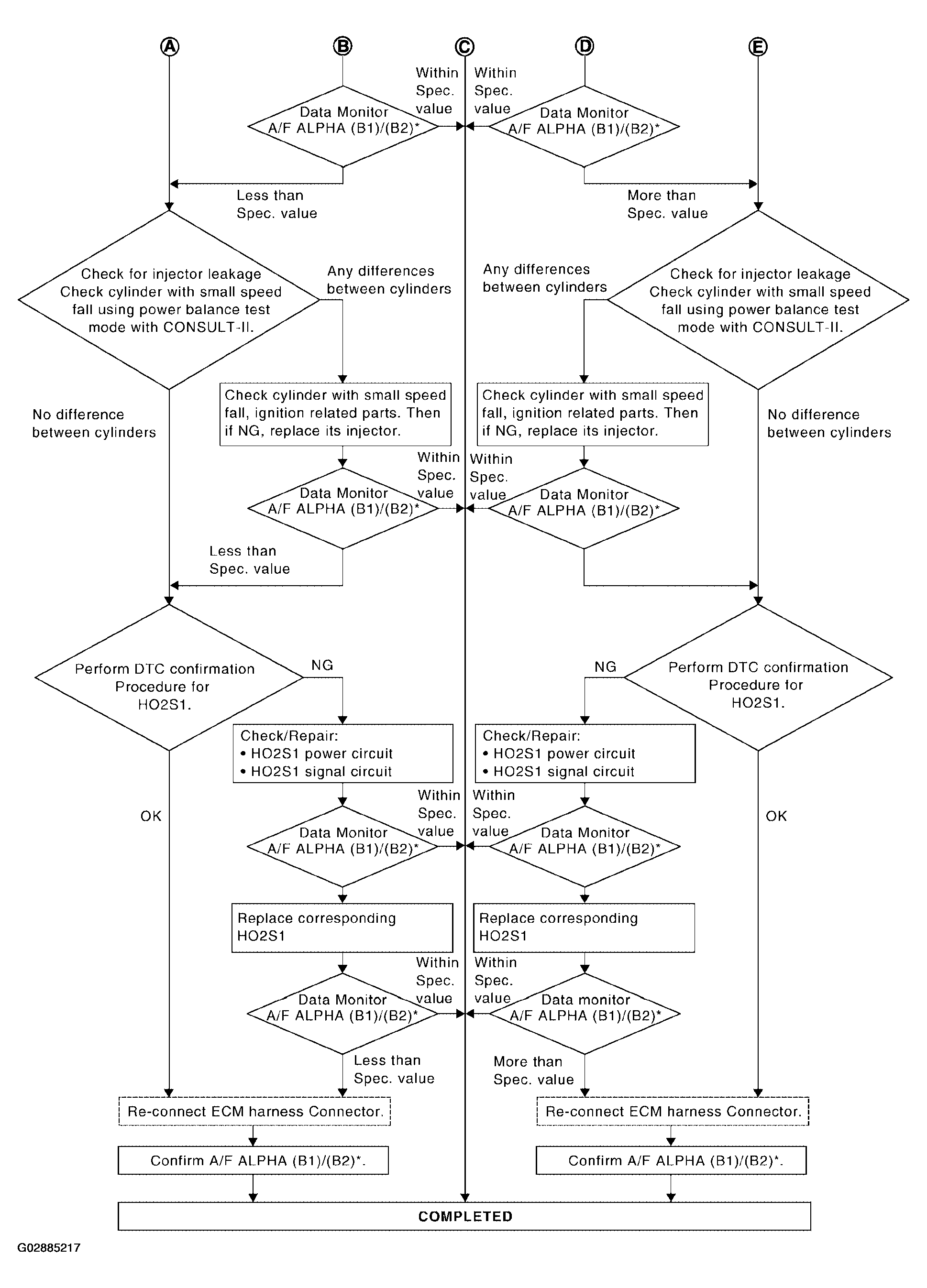

Fig 2: Diagnostic Procedures For A/F ALPHA Flow Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

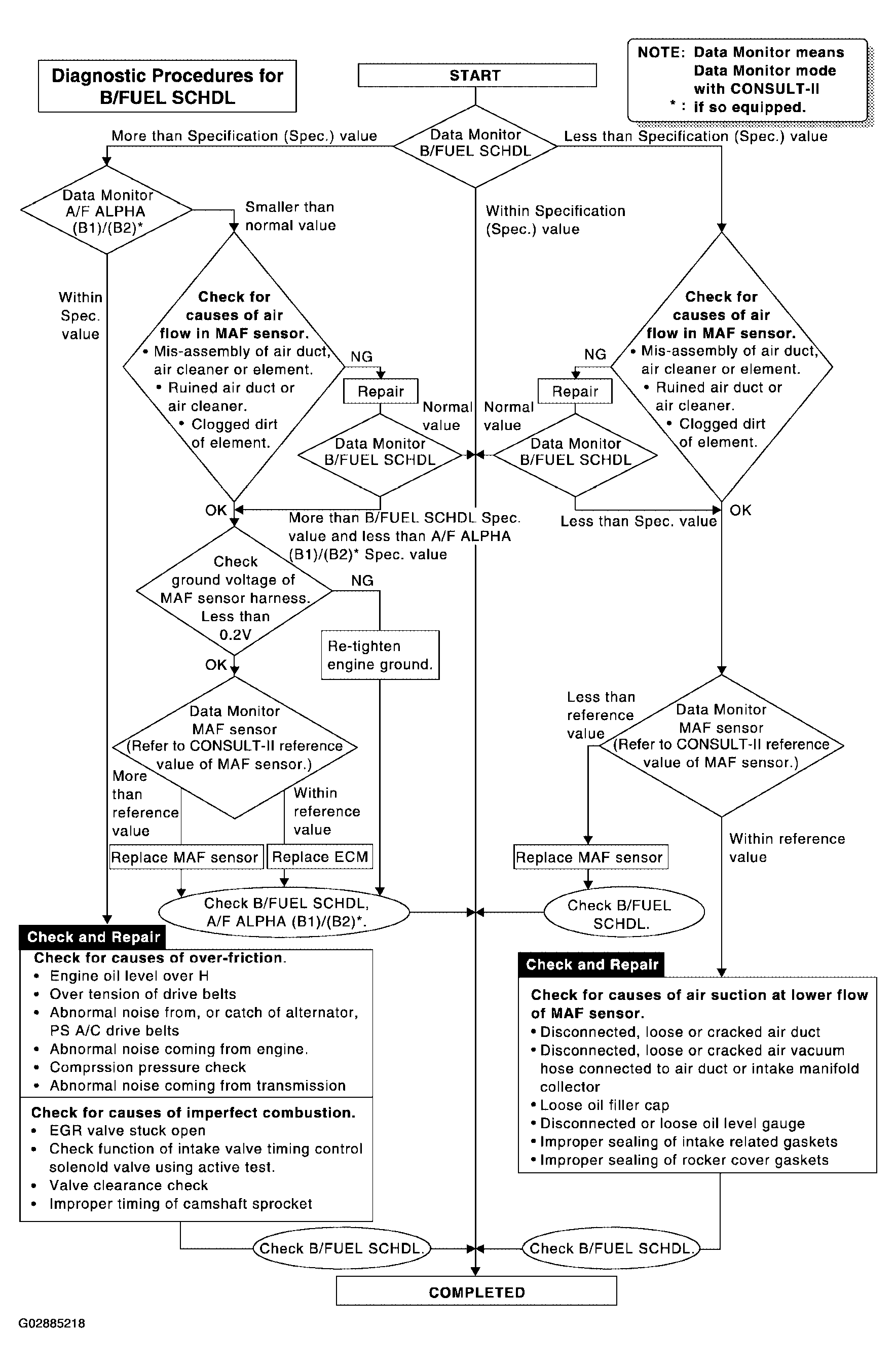

Fig 3: Diagnostic Procedures For B/FUEL SCHDL Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
