PCV Valve Ventilation Hose

WARNING: This page is about a different variant/trim than selected.
  1. Check hoses and hose connections for leaks.
  2. Disconnect all hoses and clean with compressed air. If any hose cannot be freed of obstructions, replace.

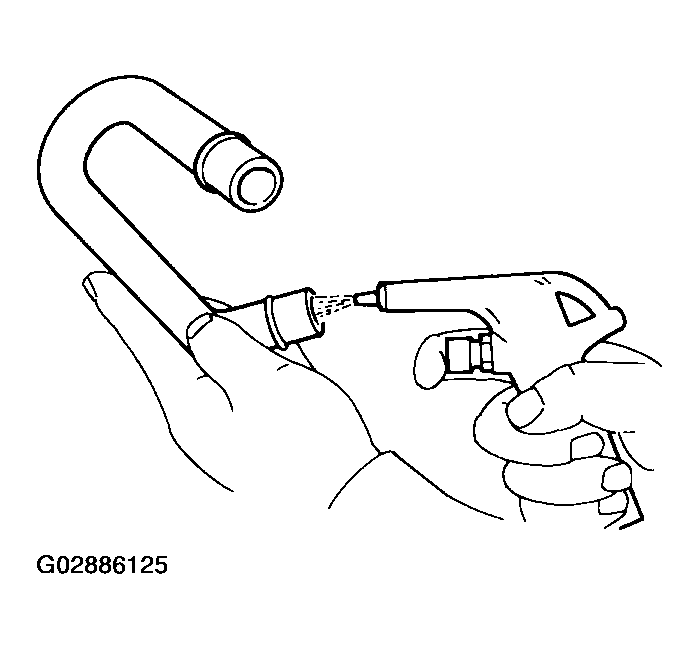

    Fig 1: Applying Compressed Air PCV Valve Ventilation Hose
    G02886125Courtesy of NISSAN MOTOR CO., U.S.A.
