Symptom: Fuel Odor From EVAP Canister Is Strong.

WARNING: This page is about a different variant/trim than selected.

CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
  The weight should be less than 2.1 kg (4.6 lb).
OK or NG
1. OK : GO TO 2.
2. NG : GO TO 3.
CHECK IF EVAP CANISTER SATURATED WITH WATER
Does water drain from the EVAP canister?

Yes or No
1. Yes : GO TO 3.
2. No : GO TO 5.

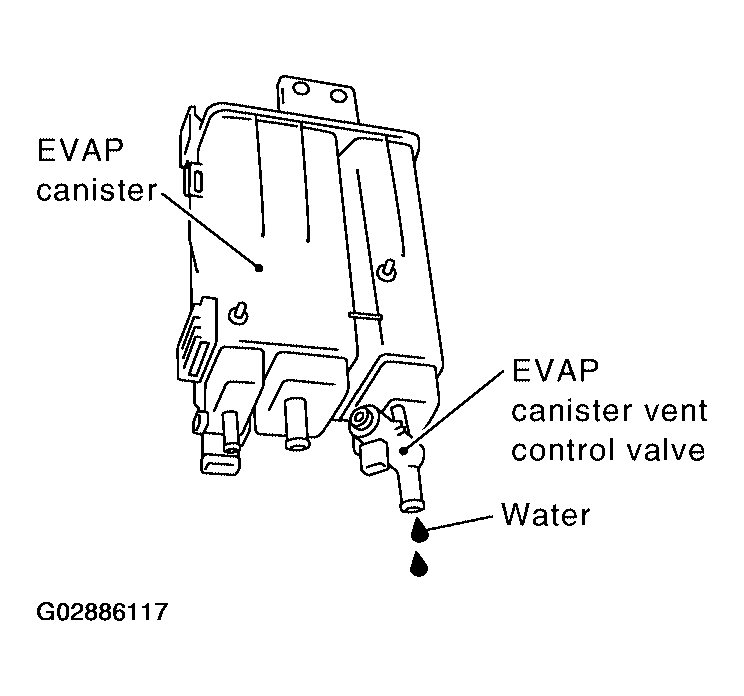

  Fig 1: Checking Drain Water From EVAP Canister (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
REPLACE EVAP CANISTER
Replace EVAP canister with a new one.

: GO TO 4.
DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

: Repair or replace EVAP hose.
CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK : INSPECTION END
2. NG : Replace refueling EVAP vapor cut valve with fuel tank.
