NVIS (Nissan Vehicle Immobilizer System - NATS)

WARNING: This page is about a different variant/trim than selected.

If the security indicator lights up with the ignition switch in the ON position or "NATS MALFUNCTION" is displayed on "SELF-DIAG RESULTS" screen, perform self-diagnostic results mode with CONSULT-II using NATS program card. Refer to NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS) article.

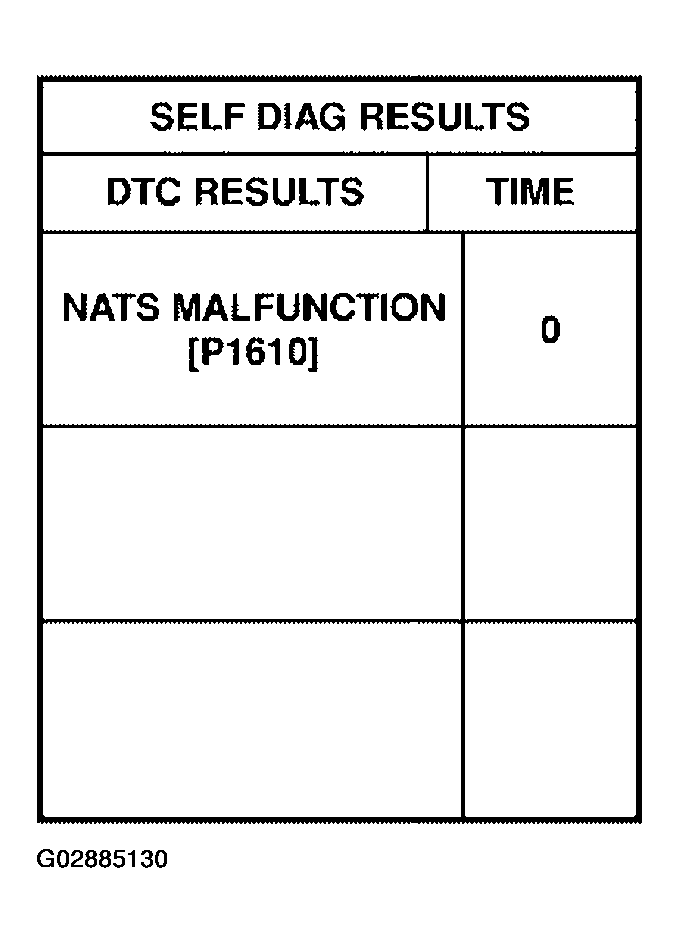

Fig 1: Displaying "NATS MALFUNCTION" in "SELF-DIAG RESULTS" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Confirm no self-diagnostic results of NVIS (NATS) is displayed before touching "ERASE" in "SELF-DIAG RESULTS" mode with CONSULT-II.
When replacing ECM, initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs must be carried out with CONSULT-II using NATS program card. Therefore, be sure to receive all keys from vehicle owner. Regarding the procedures of NVIS (NATS) initialization and NVIS (NATS) ignition key ID registration, refer to CONSULT-II operation manual, IVIS/NVIS.
