Diagnostic Test Mode II - Heated Oxygen Sensor 1 Monitor
WARNING: This page is about a different variant/trim than selected.

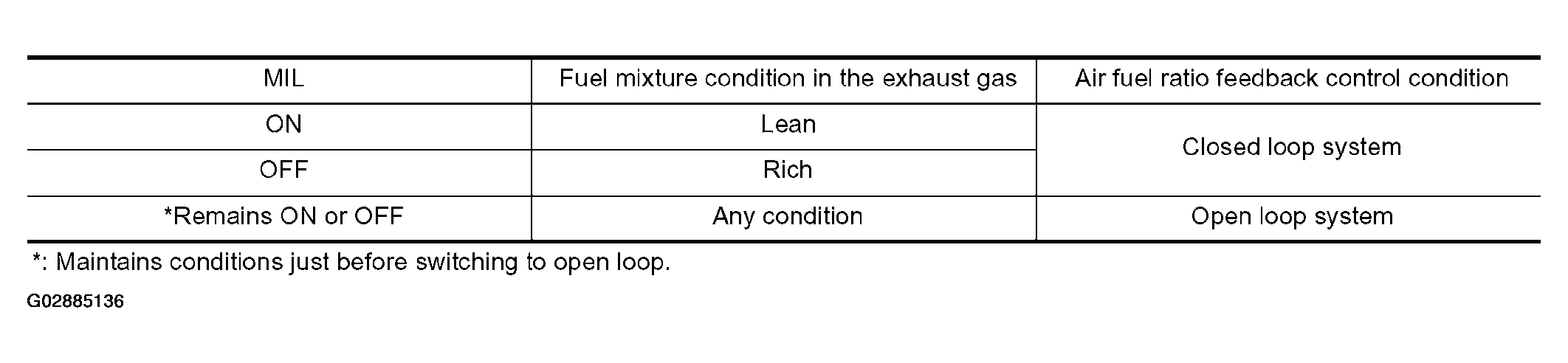

In this mode, the MIL displays the condition of the fuel mixture (lean or rich) which is monitored by the heated oxygen sensor 1.
To check the heated oxygen sensor 1 function, start engine in the Diagnostic Test Mode II and warm it up until engine coolant temperature indicator points to the middle of the gauge.
Next run engine at about 2, 000 RPM for about 2 minutes under no-load conditions. Then make sure that the MIL comes ON more than 5 times within 10 seconds with engine running at 2, 000 RPM under no-load.
