SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence . See Fig 1.

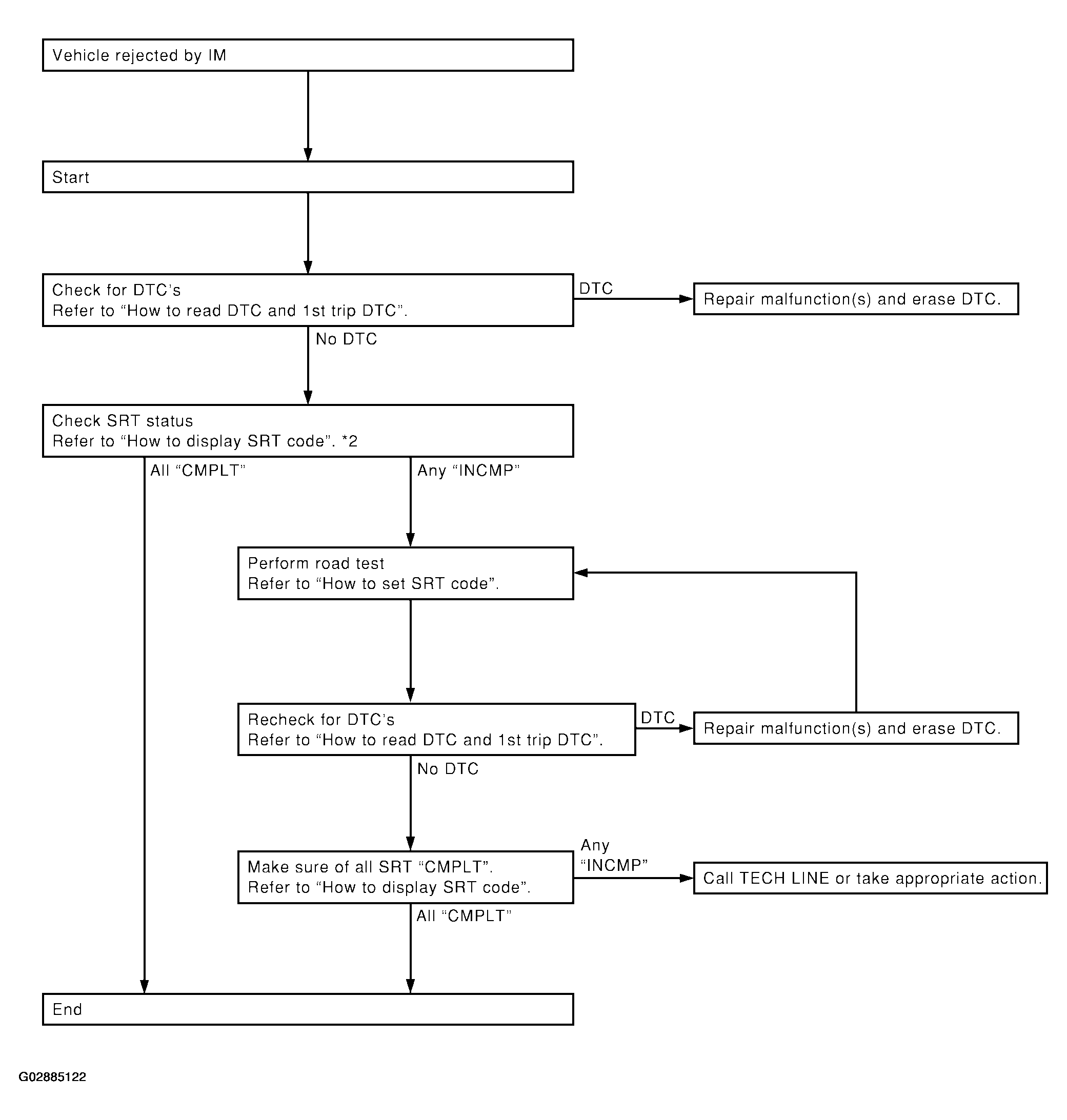

Fig 1: SRT Service Procedure Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

*1 HOW TO READ DTC AND 1ST TRIP DTC

*2 HOW TO DISPLAY SRT CODE

*3 How to Set SRT Code
