With Consult-II

WARNING: This page is about a different variant/trim than selected.

Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.

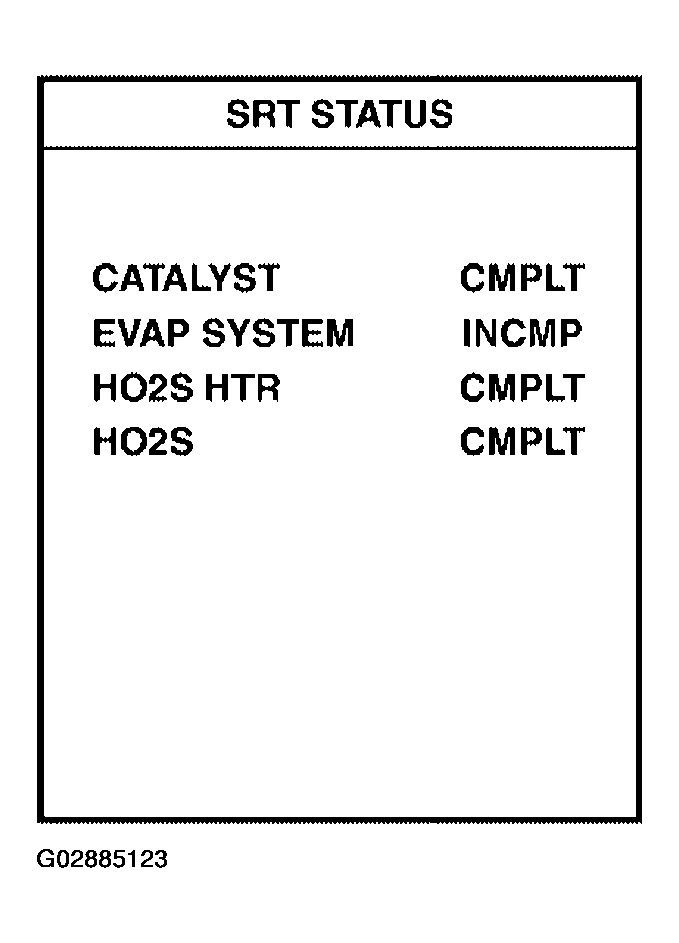

Fig 1: Displaying "SRT STATUS" in "DTC CONFIRMATION" Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set, "INCMP" is displayed.

A sample of CONSULT-II display for SRT code is shown at right.

"INCMP" means the self-diagnosis is incomplete and SRT is not set.

"CMPLT" means the self-diagnosis is complete and SRT is set.

WITH GST

Selecting MODE 1 with GST (Generic Scan Tool)
